Chapter 5: Navigating and Selecting Channels 35
Chapter 5: Navigating and Selecting Channels
Banking Input Channels and FX
Returns
Many D-Show configurations utilize more physical inputs
than input faders. For example, a standard D-Show system
provides up to 48 discrete hardware inputs and 24 input fad-
ers. To navigate to channels beyond the number of physical
faders, D-Show provides channel banking controls.
The Bank switches move the display of channels on the con-
trol surface through other available banks.
• Input Channels are banked using the Bank A, B, C, and D
switches, located to the left of the input faders on both
the Main Unit and Sidecars.
• FX Returns are banked using the FX Returns switches, lo-
cated to the right of the eight input faders on the Main
Unit.
To bank Input Channels to the input faders:
■ Press the appropriate Bank switch (A, B, C, or D).
To bank FX Returns to the Main Unit:
■ Press a Fader Control switch (FX Returns 1–8, or FX Returns
9–16).
When you press the Bank switches (A, B, C, D) on any Sidecar
(no the Main Unit), FX Returns will remain banked to the
Main Unit input faders. This lets you have input and FX Re-
turns available simultaneously.
To bank Input Channels while keeping FX Return channels on the
Main Unit input faders:
■ Press any of the Bank switches (A, B, C, D) on any Sidecar.
To return the Main Unit input faders to Input Channel banking, do
one of the following:
■ Press a lit FX Returns switch (1–8 or 9–16).
– or –
■ Press any of the Bank switches (A, B, C, D) on the Main Unit.
Banking Graphic EQ Frequency Bands
When a built-in Graphic EQ is inserted on the currently tar-
geted output or bus, its frequency bands can be banked to the
eight Input faders on the Main Unit.
Banking the Assignable Output
Encoders and Assignable Output
Faders
Outputs can be targeted and banked to the Assignable Output
Faders (AOFs) or to the Assignable Output Encoders (AOEs).
These two sections can target independently, letting you view
and control two banks of eight outputs simultaneously, as
available in each control section, as follows:
Assignable Output Encoders These can target Auxes 1–8,
Auxes 9–16, Groups (or Variable Groups), Matrix mixer in-
puts, or PQ mixer inputs.
Assignable Output Faders These can target Auxes 1–8, Auxes
9–16, Groups (or Variable Groups), Matrix mixer outputs, PQ
mixer outputs, or VCAs.

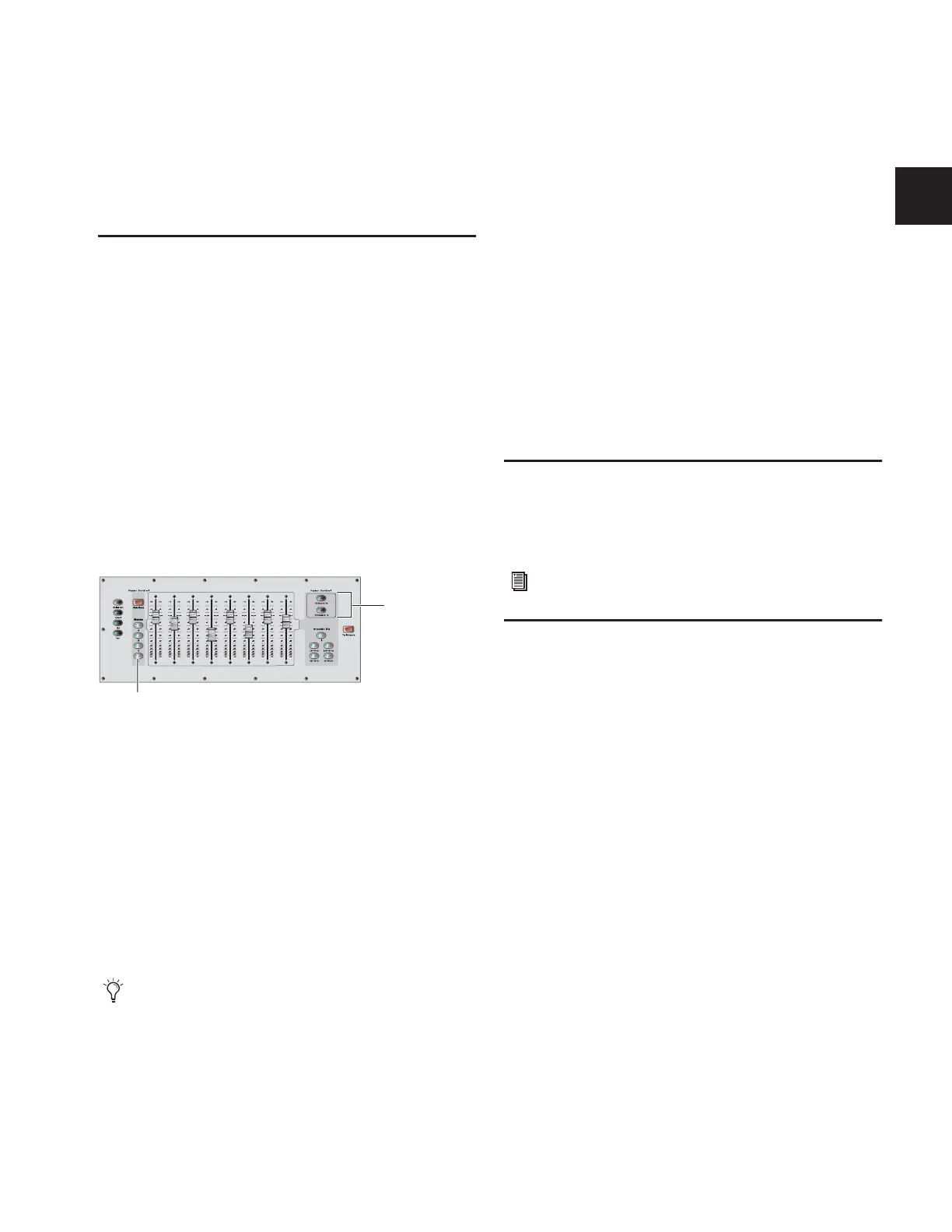

Bank switches for inputs
Flip mode can be used to put Aux send level at Sidecar Input
faders, leaving Main Unit input faders to control their FX
Return level.
Press to bank input channels on
Main and Sidecars
FX Returns
Press to bank
See Chapter 17, “EQ.”
