Chapter 3: D-Show Control Surface Overview 19
Chapter 3: D-Show Control Surface Overview
D-Show Main Unit and Sidecar Top Panels
The following figure identifies the main sections of the D-Show control surface:
The D-Show control surface consists of one Main Unit and
one or more Sidecars. The D-Show Main Unit provides eight
bankable input channel strips, the Assignable Channel Sec-
tion (center section), eight Assignable Output Encoders, eight
Assignable Output Faders, and one Mains Fader and Master
Controls section.
Each D-Show Sidecar provides 16 additional bankable input
channel strips. Sidecars can be attached to the left of the Main
Unit (as shown above), attached to the right side, or kept
free-standing (unattached) on either side.
Input Section
The Input Section provides Input Channels and FX Returns,
with channel faders and two rows of assignable encoders.
Assignable Channel Section
The Assignable Channel Section provides expanded routing
and processing controls for the currently targeted channel.
Output Section
The Output Section includes two sets of output controls that
can be used to control two different sets of outputs at the same
time:
• The Assignable Output Encoders adjust the assigned output
or bus, or plug-in parameters (when in Insert mode), and are
also where you set up Matrix and PQ sends.
• The Assignable Output Faders adjust the assigned output,
bus, or VCA.

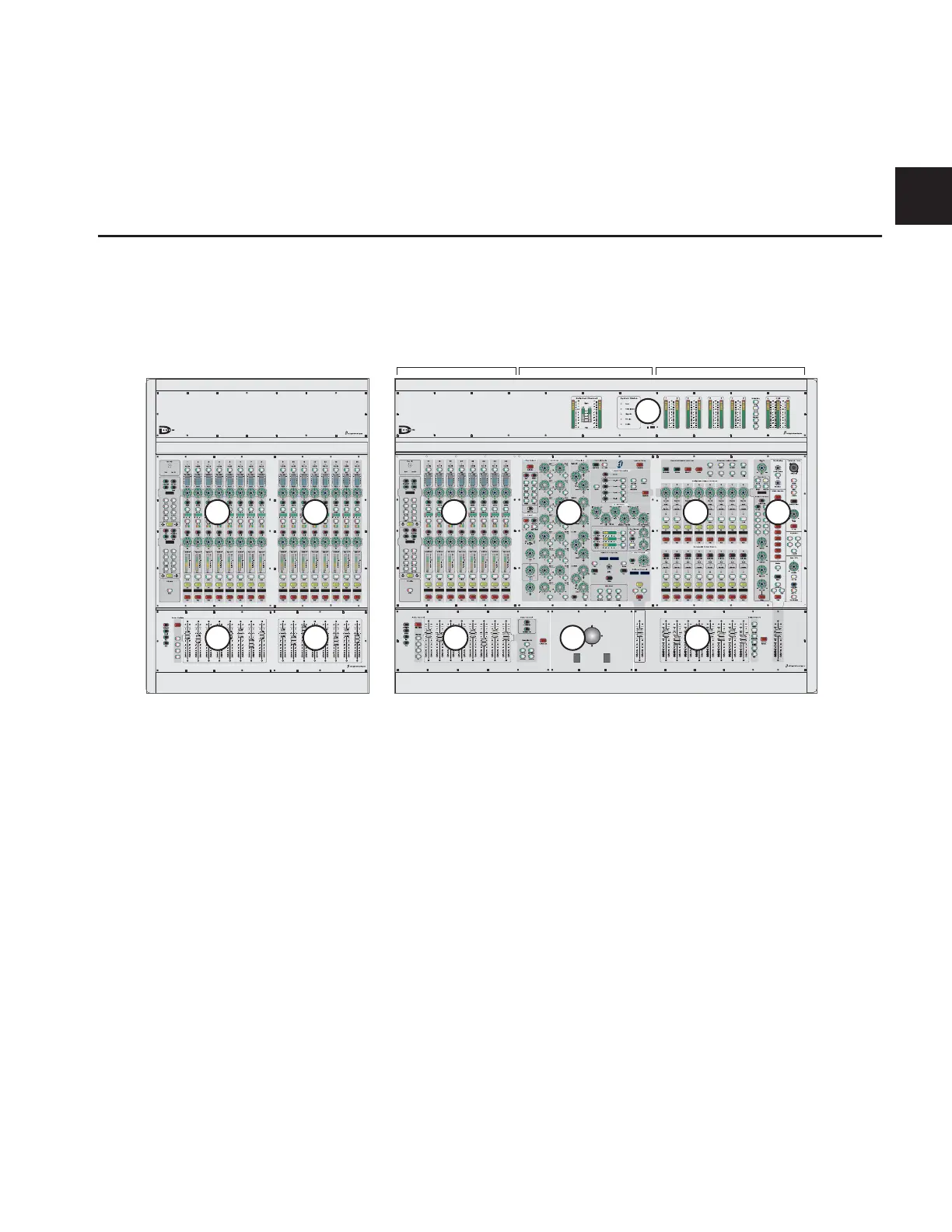

Figure 8. Control Surface main sections
KICKKICK
KICK KICK
BanksBanks
AA
BB
CC
DD
Make Stereo
Main UnitSidecar
A
B
CD
E
F
G
H
A A
BB
A Input Channels (banks of 8)
B Input Faders (banks of 8)
C Assignable Channel Section (ACS)
D Assignable Output Encoders
E Assignable Output Faders
F Master and Global Section
G Meter Bridge
H Trackball and View Mode Controls
Input Section Assignable Channel Section Output SectionInput Channels
