D-Show Guide26
Matrix Sends Assigns the Output Encoders to control matrix
input source levels and enables.
PQ Sends Assigns the Output Encoders to control PQ input
source levels and enables.
PQ Pan Assigns the Output Encoders to control PQ input
source panning.
Matrix/PQ 1–8 Assign the Output Encoders to show Matrix or
PQ send levels and enable status, or Pan for selected Matrix or
PQ send.
Left, Center, Right, and User Send Control the level of the
Left, Center, Right, or User bus to the currently selected Ma-
trix or PQ bus. Rotating the encoder adjusts the level; pushing
the encoder toggles the send in/out.
Solo, Mute, and Select Provide solo, mute, and select for
Auxes or Groups assigned to the Output Encoders.
Output Encoder and Output Fader Status
LEDs
These multi-color LEDs indicate EQ, dynamics, plug-in, and
insert status for the corresponding Assignable Output Encod-
ers and Assignable Output Faders.
EQ LED
DYN LED
INSERT LED
Assignable Output Faders
The Assignable Output Faders control the currently selected
Output type (Auxes, Groups, Matrix, PQ, or VCAs), chosen us-
ing the Output Faders switches.
Aux 1–8 Assigns the Output Faders to control Aux 1–8 levels.
Aux 9–16 Assigns the Output Faders to control Aux 9–16 lev-
els.
Personal Q’s Assigns the Output Faders to control PQ mixer
output levels.
Matrixes Assigns the Output Faders to control Matrix mixer
output levels.
Groups Assigns the Output Faders to control Group levels.
When D-Show is in Variable Groups mode, this switch assigns
the Output Faders to control Variable Groups.
VCAs Assigns the Output Faders to control VCAs.
EQ LED color indications
Color Meaning
Green Output has a Graphic EQ and/or
one or more EQ plug-ins assigned
and in-circuit
Yellow Output has a Graphic EQ and/or
one or more EQ plug-ins, but none
are in-circuit
Off No Graphic EQ or EQ plug-ins are
assigned on the current output
Dyn LED color indications
Color Meaning
Green Output has a Dynamics plug-in
assigned and in-circuit
Yellow Output has one or more Dynamics
plug-ins, but none are in-circuit
Off No Dynamics plug-ins are
assigned on the current output
Insert LED color indications
Color Meaning
Green Output has at least one of the fol-
lowing currently in-circuit: a hard-
ware insert, and/or at least one
non-EQ and non-Dynamics plug-in
Yellow Output has at least one of the fol-
lowing but none are in-circuit: a
hardware insert, or a non-EQ and
non-Dynamics plug-in
Off Output has no hardware insert or
plug-in

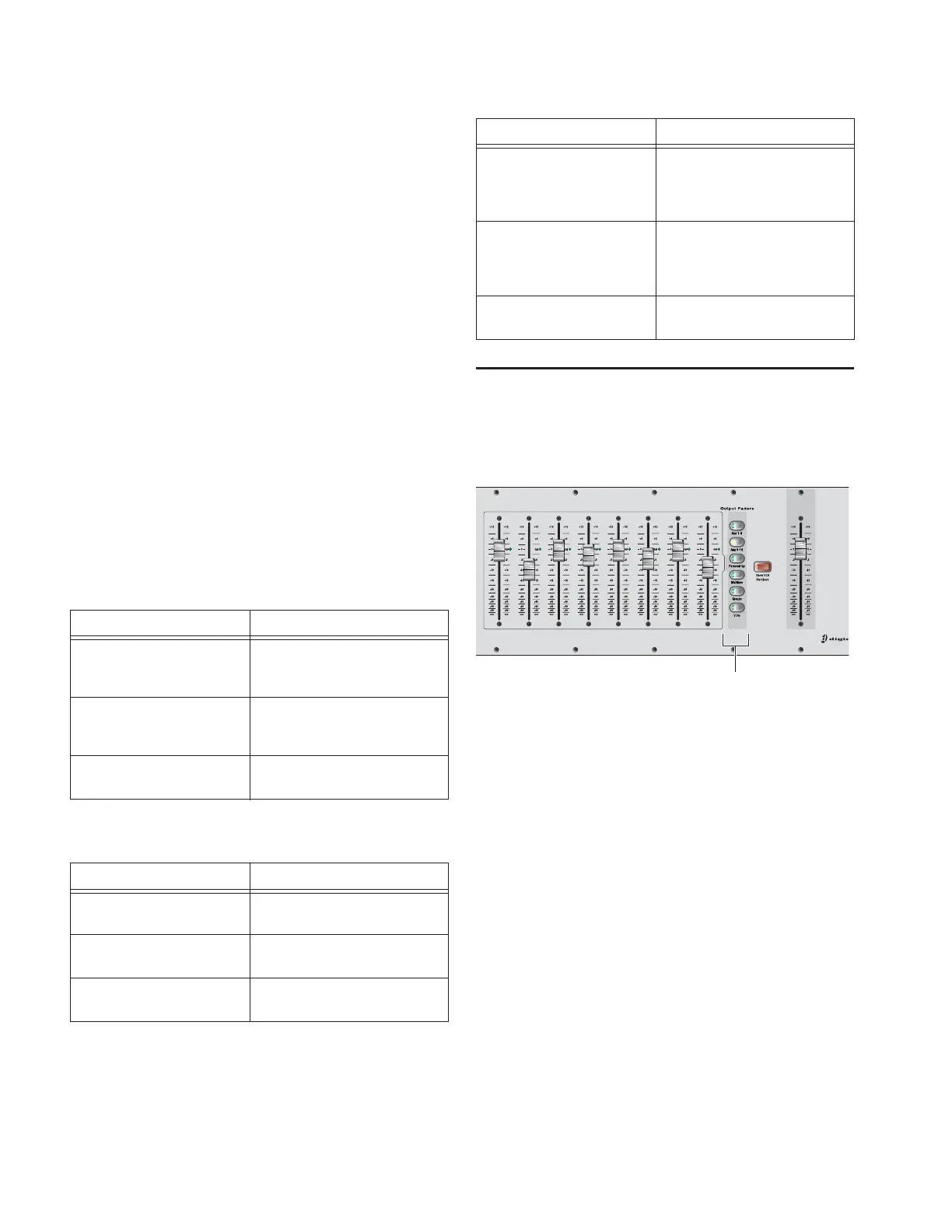

Output faders
Output Faders switches
