Chapter 8: Outputs and Output Routing 65
The name of the hardware insert destination appears in the
on-screen Hardware Insert button.
If the output bus is assigned to the Assignable Output Encod-
ers or Assignable Output Faders, the corresponding Insert LED
lights to indicate the presence of an insert.
Setting the Hardware Insert Location
You can choose the location of the hardware insert in the sig-
nal path, relative to the four plug-in inserts, for each channel.
A hardware insert does not need to be currently assigned to do
this.
To set the hardware insert location:
1 Go to the Outputs page and select the channel where you
want to set the hardware insert location.
2 In the Inserts section of the Outputs page, click the hard-
ware insert indicator so that it lights red.
Activating and Bypassing Inserts
After hardware and plug-in inserts are assigned to an Output
bus, they can be activated and bypassed from the from the
ACS section or the corresponding Output page controls.
To activate or bypass an Output bus insert:
1 Target the bus by pressing its Select switch.
2 Press any of the Plug-In switches or the Hardware switch to
activate or bypass the corresponding Insert. The switch lights
when the Insert is activated.
Inserting the Built-In Graphic EQ on
Output Busses
A built-in 31-band Graphic EQ can be inserted on any of the
following Output bus types: Mains, Groups (or Variable
Groups), Auxes, Matrixes, and PQs. A maximum of 24
Graphic EQs are available, depending on the how they are
configured in the System Configuration Options.
For more information on configuring and using Graphic EQs,
see “Graphic EQ for Outputs” on page 129.
To insert a Graphic EQ on an Output bus:
1 Target the bus by pressing its Select switch.
2 In the Outputs page, click the Graphic EQ tab.
3 Click the Graphic EQ pop-up menu and choose an available
mono or stereo Graphic EQ. The entire Graphic EQ is dis-
played on-screen.

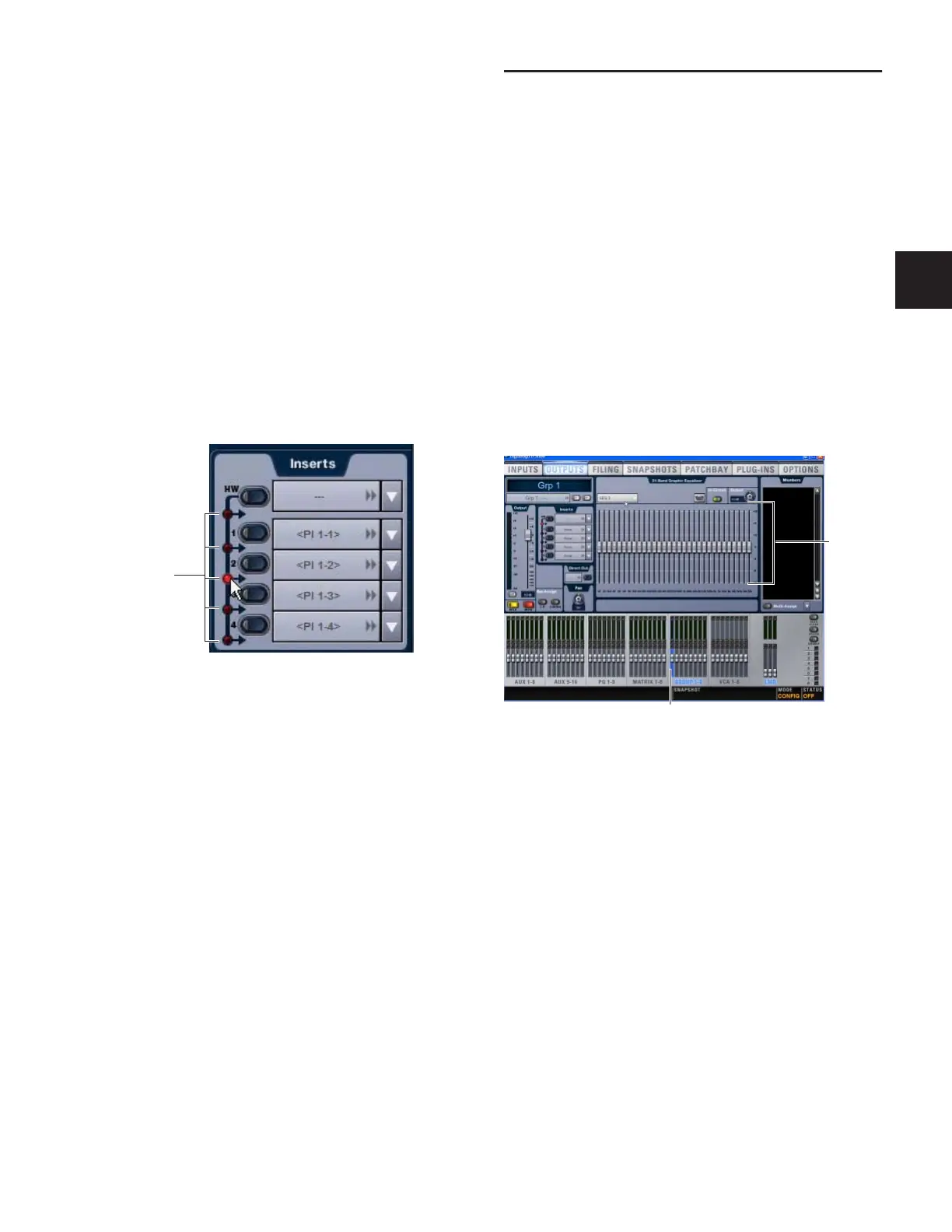

Setting a hardware insert location in the Inputs page
Click to set
HW Insert
location
Graphic EQ displayed in the Outputs page
Output bus selected (Group 1)
Graphic
EQ
Faders
