Adjusting EQ
D-Show provides EQ controls in input fader strips, the ACS,
and on-screen.
Input Fader Strip EQ Controls
Each input strip provides HPF and EQ In/Out controls.
◆ HPF can be adjusted on each Input Channel using the En-
coder 1 HPF assignment switch and corresponding row of en-
coders.
◆ The EQ In switch takes the built-in parametric EQs in or out
of circuit.
To adjust HPF from an input strip:
1 Bank to the channel on the control surface.
2 Press the HPF Encoder 1 Assign switch.
3 Rotate the appropriate channel Encoder 1 to adjust HPF fre-
quency. Press the appropriate encoder shaft switch to toggle
HPF in or out.
To bypass built-in parametric EQ (all bands) from an input strip:
1 Bank to the channel on the control surface.
2 Press the EQ In switch. When in circuit, the EQ In switch is
lit. When built-in EQ is bypassed, the switch is unlit.
ACS EQ Controls
The EQ controls in the ACS provide a unified, consistent set of
controls for both built-in and plug-in EQ processing for the
targeted channel. One dual-purpose rotary/switch encoder
controls the HPF. Twelve dual-purpose rotary/switch encoders
control EQ parameters and their settings.
D-Show-compatible EQ plug-ins can map their controls to the
ACS EQ section, and all plug-ins can be controlled using the
Assignable Output Encoders.
FX Returns provide two bands of EQ (Hi and Lo) which can be
toggled between Bell and Shelf modes.
Dynamics controls and displays on Input Channels
HPF can also be adjusted in the ACS or on-screen.
EQ In/Out
HPF for
Encoder Row 1
Encoder Row 1
for HPF Freq

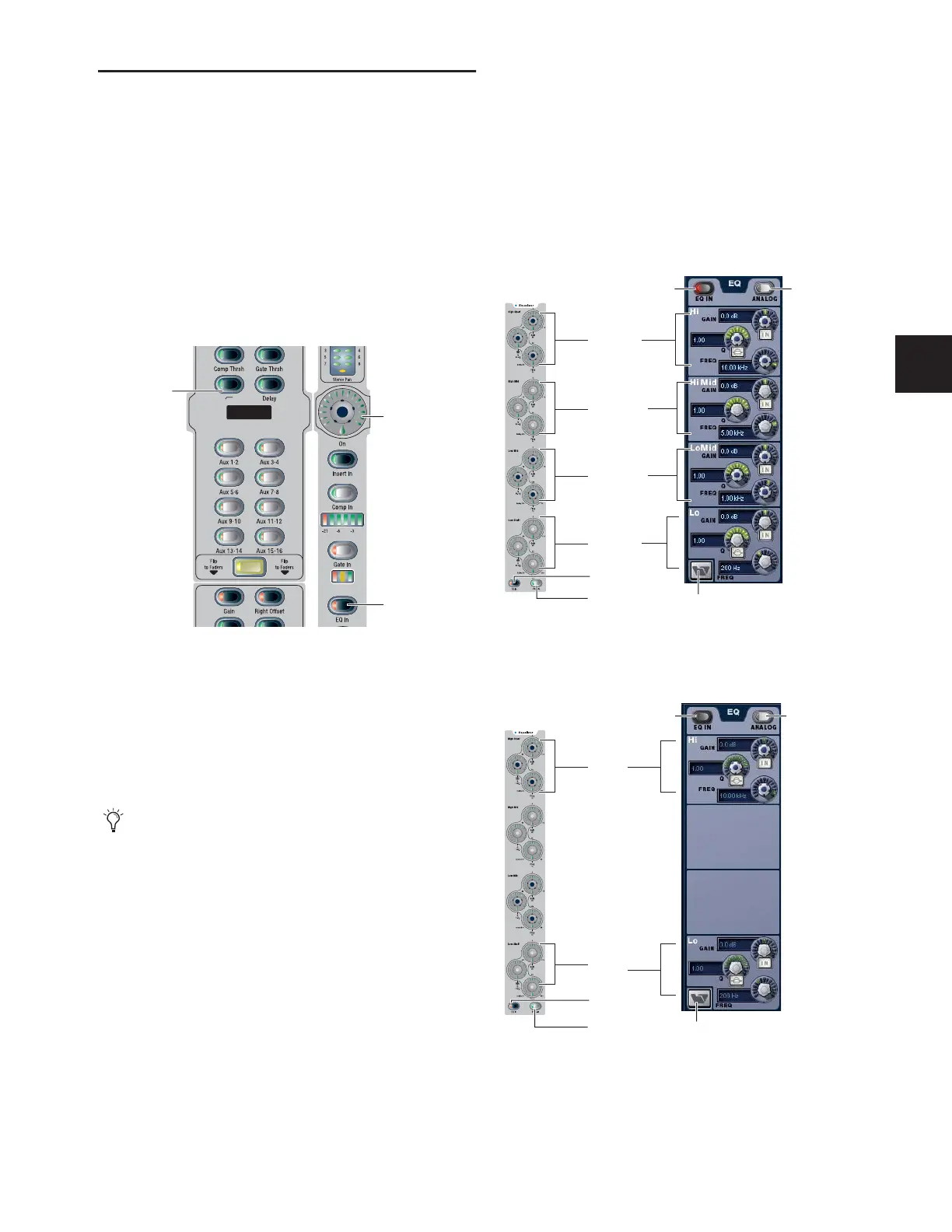

EQ controls in the ACS (left) and on-screen (right) for an Input Channel
EQ controls in the ACS (left) and on-screen (right) for an FX Return
High
High-Mid
Low-Mid
Low
In/Out
Plug-In
Digital/
Analog
In/Out
Presets
High
Low
In/Out
Plug-In
Presets
Digital/
Analog
In/Out
