Meter Bridge Status Indicators
The meter bridge includes five System Status LEDs, as shown in the figure below.
Power LED
Control Surface LED
If you power up with fewer Sidecars than before, you will need
to reset D-Show Devices configuration.
To reconfigure D-Show after removing a Sidecar:
1 Go to Options page and click the Devices tab.
2 Right-click on the offline Sidecar and choose Forget.
Stage Link LED
Note, if the system switches over to the redundant Snake just
once, the LED will flash yellow until the software is re-
launched (or it turns red due to failure).
FOH Link LED

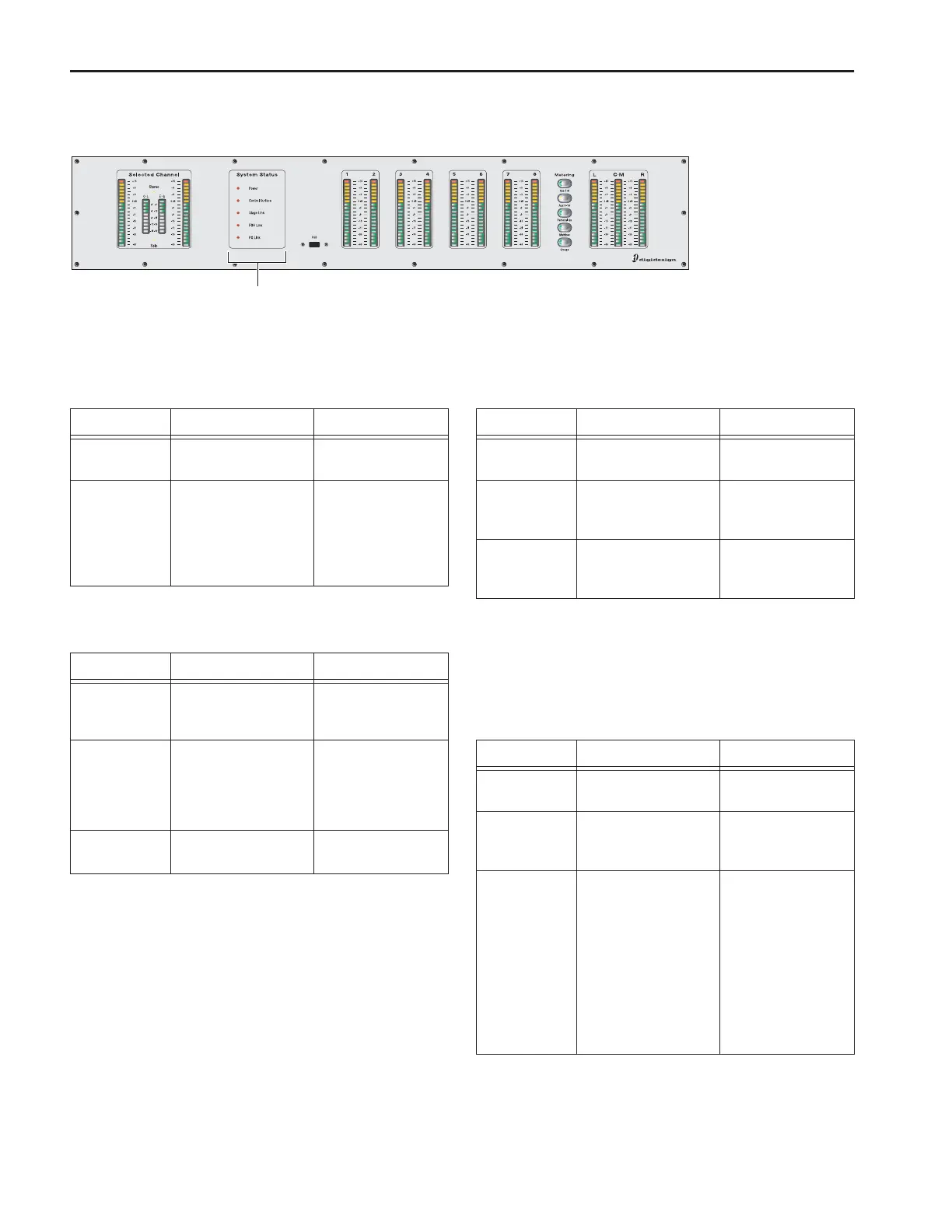

Figure 14. Status LEDs in the meter bridge
System Status LEDs
Power LED states, Meter bridge of Main Unit
LED State Indicates Action
Green Main, Sidecar(s), and
FOH are powered On
None required
Yellow, flashing A failure has occurred
with the power supply in
the FOH Rack or Stage
Rack
Check power and all
cables to the unit.
Check Options >
Devices screen to see
if any additional infor-
mation is available.
Control Surface LED states
LED State Indicates Action
Green All Main and Sidecar
units are communicat-
ing correctly
Yellow, flashing At least one unit cannot
be found
Check Options >
Devices, to see if
unavailable hardware
is still initialized on
the system.
Red, flashing Lost communication Check all cables and
connections.
Stage Link LED states
LED State Indicates Action
Green Snake communication
to Stage Rack OK
Yellow, flashing Main Snake failed and
taken offline; redundant
Snake being used
None required
Red, flashing No communication with
the Stage Rack
Check power and all
cables; power cycle
the Stage Rack
FOH Link LED states
LED State Indicates Action
Green FOH Rack is communi-
cating correctly
Yellow, flashing No communication Check FOH Rack
cable connections to
the Main Unit
Red, flashing Communication has
been lost
Check power and
other connections to
the FOH Rack. Check
Options > Devices for
additional detail
about components
within the FOH Rack.
Also, check the sta-
tus of the Control Sur-
face LEDs (described
previously)
