D-Show Main Unit
Main Unit Top Panel
Input Channel Section
The Input Channel Section provides 8 channel strips that are
used to control Input Channels and FX Returns. Input Chan-
nels are used to control input signals from the Stage Rack,
FOH Rack, and Pro Tools playback options. FX Returns are
used to control return signals from hardware inputs on the
Stage Rack, FOH Rack, or Pro Tools playback options.
The Input Channel Section also includes Encoder Assignment
controls that are used to assign functions to the two row of ro-
tary encoders.
Assignable Channel Section (ACS)
The Assignable Channel Section provides dedicated controls
for bus routing, Direct Output routing, built in EQ and Dy-
namics processing, and Insert processing (including Plug-Ins).
When a channel is selected, its controls are automatically tar-
geted on the Assignable Channel Section.

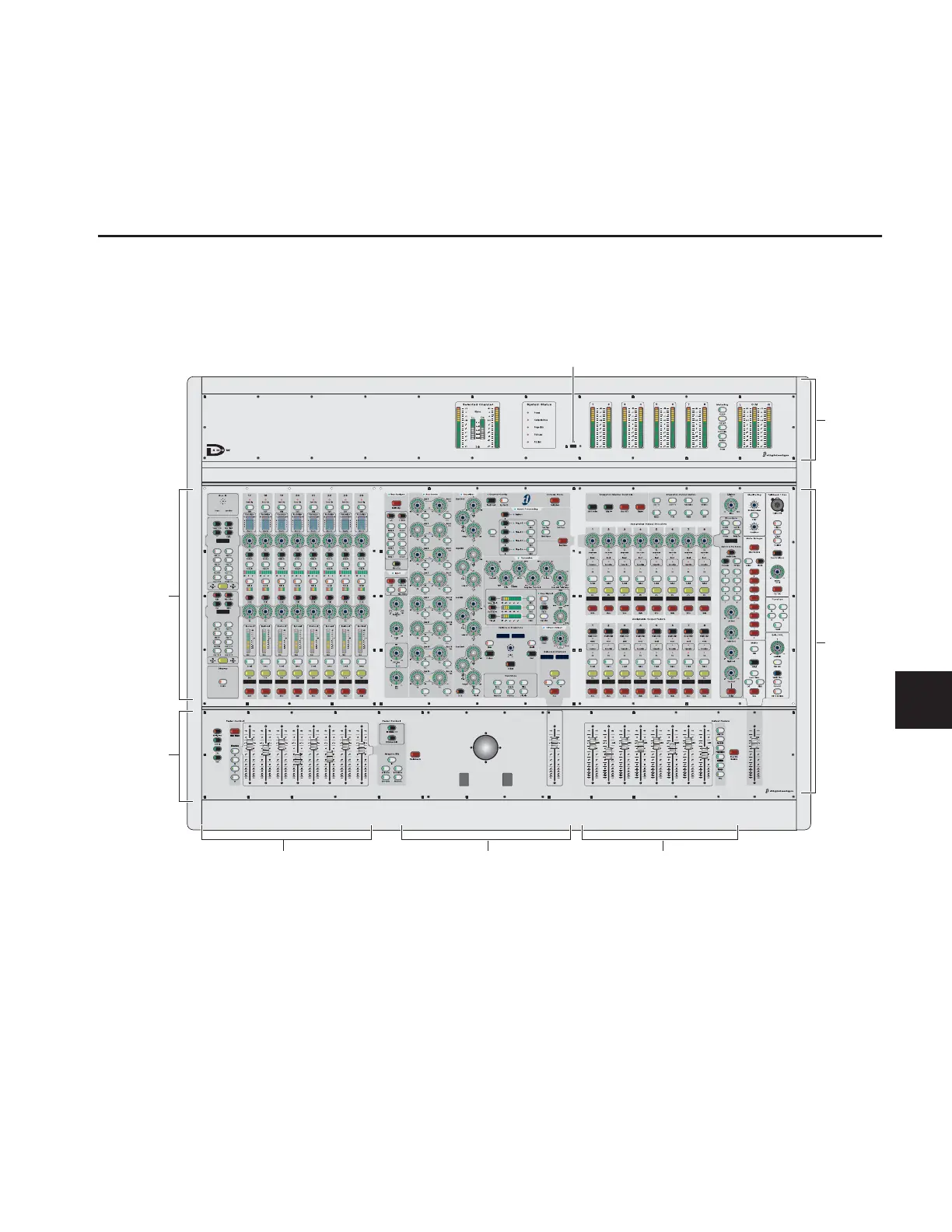

Figure 15. Main Unit top panel sections
KICKKICK
KICK KICK
Encoder
Assignment
Section
Global
Modifier
and
Fader Bank
switches
Input Channel Section Assignable Channel Section Output Channel Section
Master
and
Global
Section
Meter
Bridge
Meter Bridge USB port
