D-Show Guide72
Viewing Group Bus Assignments On-Screen
When a Group bus channel is targeted on-screen, its members
are shown in a list on the right side of the Outputs page.
Resetting Group Bus Assignments
You can remove input assignments from a Group bus
on-screen.
To remove an input assignment from a Group bus:
1 Select the Group bus you want to change so that its mem-
bers are displayed on-screen.
2 In the list of Group bus members, right-click the input as-
signment you want to remove and choose Unassign.
To remove all input assignments from a Group bus:
1 Select the Group bus you want to change so that its mem-
bers are displayed on-screen.
2 Click the pop-up menu at the bottom of the Members list
and choose Reset Mix.
Group Bus Signal Flow Options
Routing Signals to a Mono Group Bus
Configuration
When configured as mono busses, the eight Groups can be fed
as 8 unlinked mono busses or up to 4 linked odd/even bus
pairs.
Unlinked Mono Busses
To use unlinked mono Group busses:
1 Make sure the Group busses are configured as mono busses.
See “Configuring Aux, Group, and Variable Group Busses” on
page 62.
2 While routing channels to Group busses, make sure the Ste-
reo Pan switch is off.
The Group switches in the ACS Bus Assigns section light green
to indicate mono operation. In this configuration, input sig-
nals are handled as follows:
Mono Input Signals Contributing mono signals are summed to
the mono Group bus. Any pan information from mono input
channels feeding the bus is ignored.
Stereo Input Signals Contributing stereo signals are summed
to the mono Group bus with no attenuation. The balance and
width information from each stereo input channel is ignored.
Linked Odd/Even Bus Pairs
To use linked mono Group bus pairs:
1 Make sure the Group busses are configured as mono busses.
See “Configuring Aux, Group, and Variable Group Busses” on
page 62.
2 While routing channels to Group busses, press the Stereo
Pan switch so that it lights yellow.
The Group switches in the ACS Bus Assigns section and the
Stereo Pan LED in the channel’s Bus Assign indicator light yel-
low to indicate stereo operation. In this configuration, input
signals are handled as follows:
Mono Input Signals Contributing mono signals are panned
across the linked odd/even Group bus pair. Pan information
from each mono input channel determines its pan position in
the bus pair.
Stereo Input Signals Contributing stereo signals are panned
across the linked odd/even Group bus pair. Balance and width
information from each stereo input channel determines its
contribution to the odd and even sides of the bus pair.

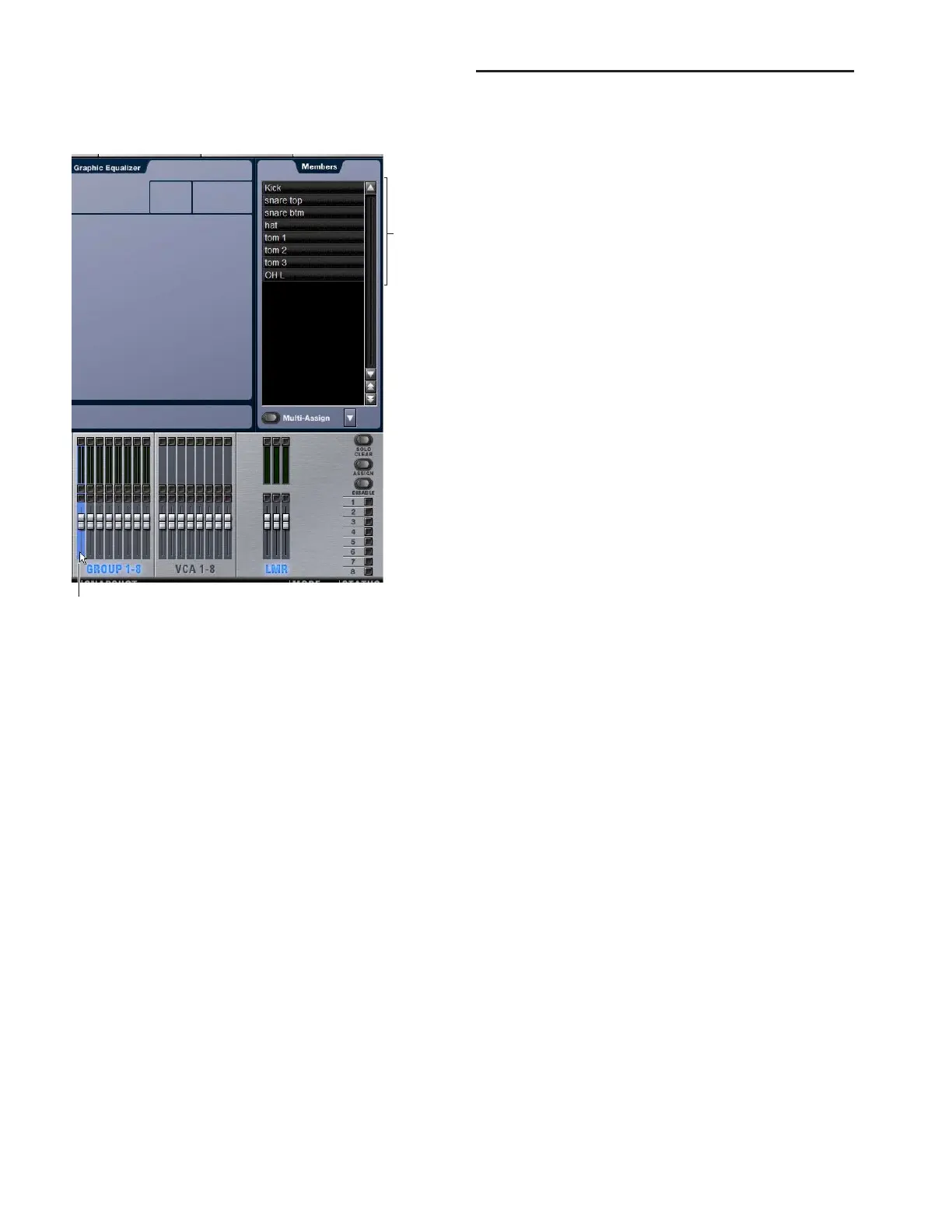

Group members shown in the Outputs page
Currently selected output (Group)
Members
To Next Page
