Chapter 14: Solo and Monitor Busses 109
Routing Oscillator Output
The output of the D-Show internal oscillator can be routed to
any of the output busses.
To route oscillator signal to any D-Show output bus:
1 Go to the Options page and click the Misc tab.
2 In the Oscillator section, select from the following signal
types:
• 100 Hz Sine
•1 kHz Sine
• 10 kHz Sine
•Variable Sine
• Pink Noise
• White Noise
3 If you select Variable Sine, you can set the sine wave fre-
quency with the on-screen frequency control (directly to the
right of the Variable Sine option).
4 Press the Oscillator switch in the Talkback/Osc section of
the Main Unit so that it is lit.
5 Press the Route to Selected switch. The switch flashes to in-
dicate Route to Selected mode.
6 Press the Select switch on each of the output busses (Auxes.
Groups, PQs, Matrixes, or Mains) where you want to route Os-
cillator signal. The Select switches flash to indicate Oscillator
assignment.
7 Press the flashing Route to Selected switch to confirm the as-
signment, or press the Cancel switch to cancel the assign-
ment.
Activating the Oscillator and Setting Level
To activate and set the level for the oscillator:
1 Press the Oscillator switch in the Talkback/Osc section so
that it is lit.
2 Activate the oscillator by doing any of the following:
• Press the On/Talk switch in the Talkback/Osc section.
• Click the on-screen “In” button in the Oscillator section
of the Options > Misc page.
3 Set the oscillator level by doing any of the following:
•Turn the Level knob in the Talkback/Osc section.
• Drag the on-screen Level knob in the Oscillator section of
the Options > Misc page.

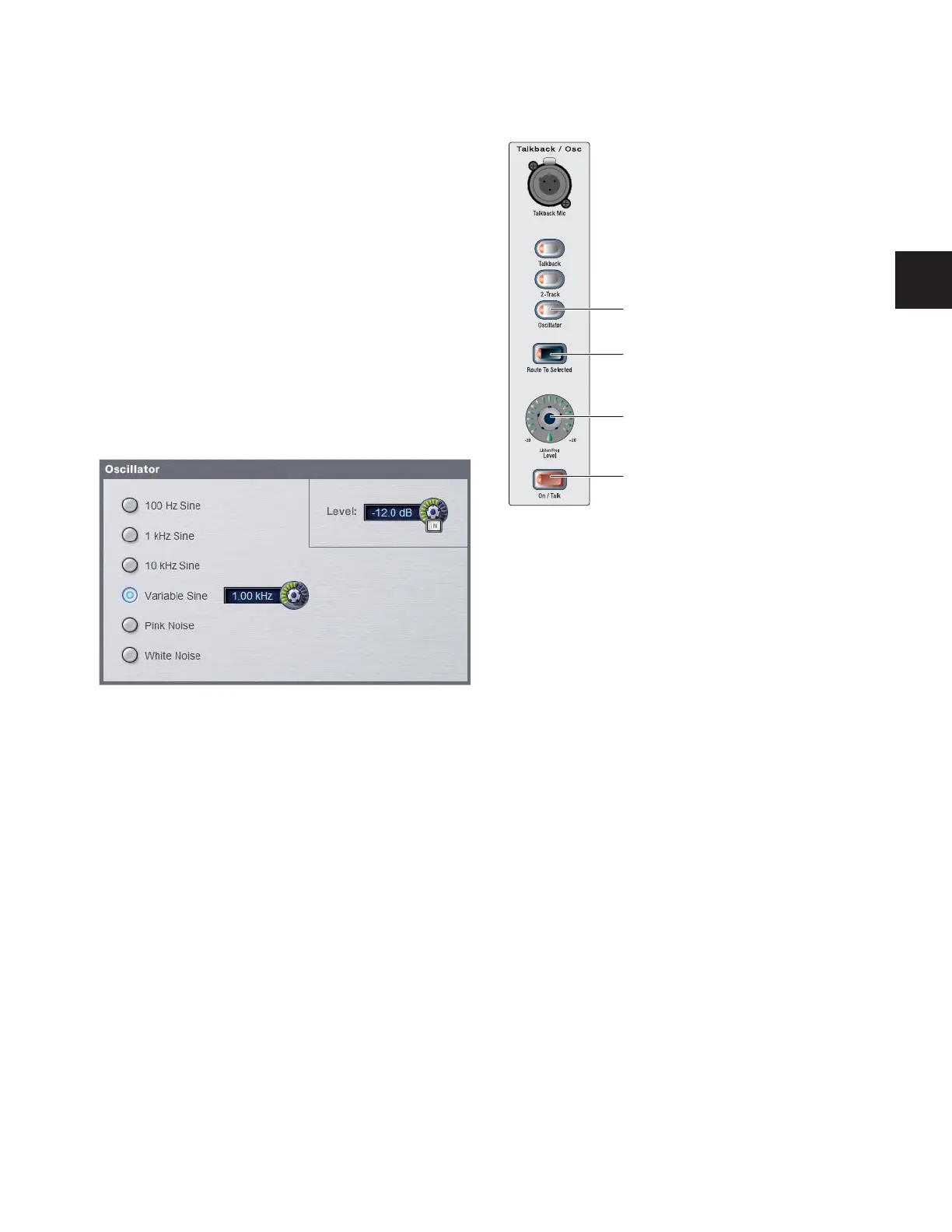

Oscillator controls in the Options > Misc page
2-Track controls in the Talkback/Osc section of the Main Unit
Oscillator switch
Level control
On/Talk switch
Route To Selected switch
