Chapter 28: Control Surface Reference 209
Sidecar Back Panel
Console Link In and Out Connectors
The Console Link In and Out connectors use 110-Ohm
AES/EBU (Digital) XLR cables to connect the Sidecar to the
Main Unit or to other Sidecars.
Termination Switch
The Termination switch is used to terminate the Console Link
chain. On the last Sidecar in a chain, this switch should be set
to “Terminate.” On all other Sidecars, this switch should be
set to “Thru.”
Power Switch
The Power switch applies power to the D-Show Sidecar.
AC Power Connector
The AC Power connector accepts a standard AC power cable.
The D-Show Sidecar is auto-power selecting (100V to 240V)
and automatically works with a standard modular power cord
when connected to an AC receptacle in any country.
Light Port
The powered light port supports an optional 3-pin XLR con-
sole light.

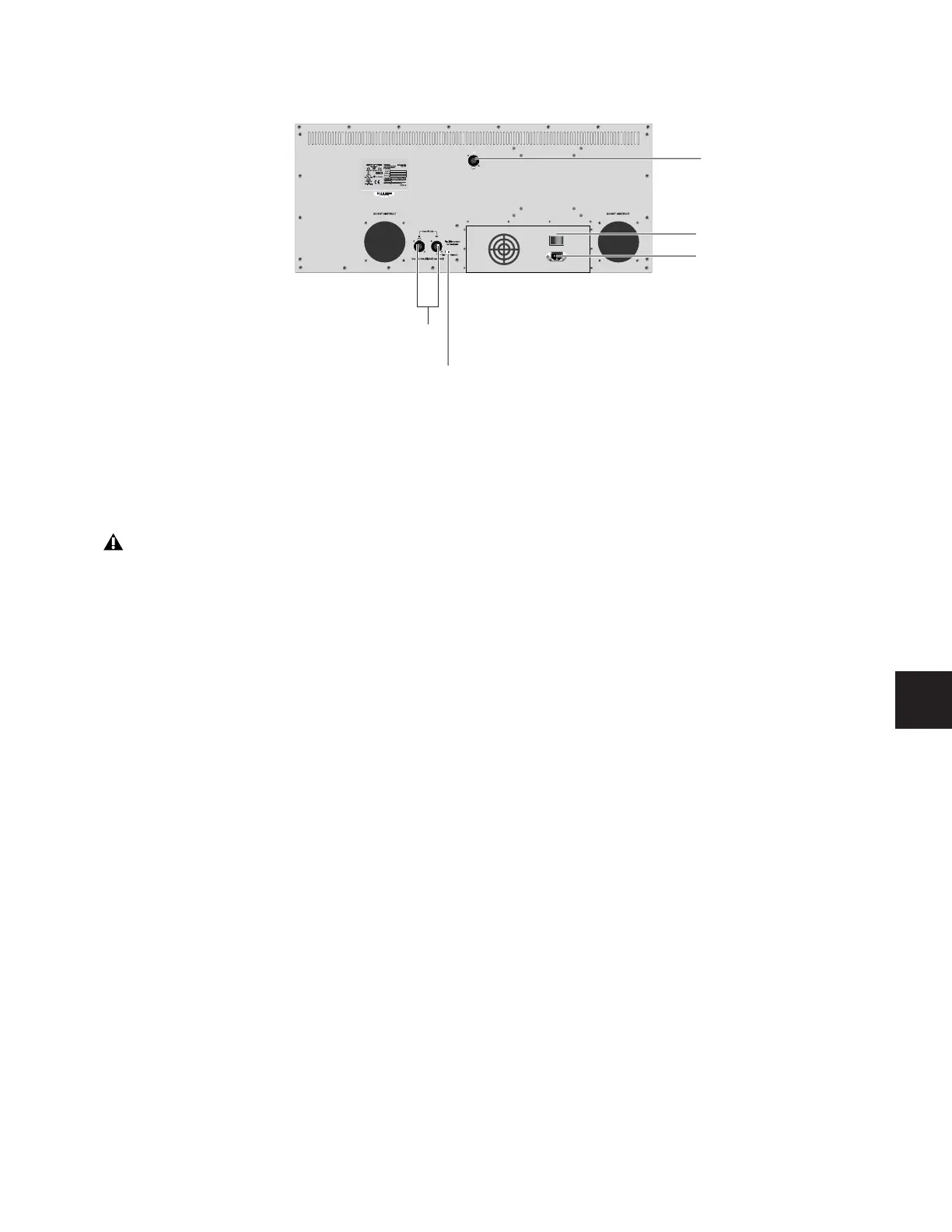

Sidecar back panel
IO
Light port
Power switch
AC power connector
Console Link
In and Out connectors
Termination switch
All Console Link connections require 110-Ohm AES/EBU
(Digital) cable. Do not use standard audio-grade micro-
phone cable to connect the Main Unit and Sidecars.
