Stage Rack Front Panel
Stage Rack I/O Section
The Stage Rack I/O section consists of 12 slots that accept
modular input cards or output cards. The first 6 slots (A–F) of
the Stage Rack accept SRI (input) cards only. The last 6 slots
(G–M) accept SRO (output) cards only.
Stage Rack Input Cards
Each SRI card has 8 inputs. The connectors are female XLR
connectors. Each Input connector has Signal Present and
Phantom Power LED indicators.
Stage Rack Output Cards
Each SRO card has 8 outputs. The connectors are male XLR
connectors. Each Output connector has Signal Present and
Hardware Mute indicators.
Outputs are automatically muted when the system restarts.
Outputs can also be muted with a footswitch command.

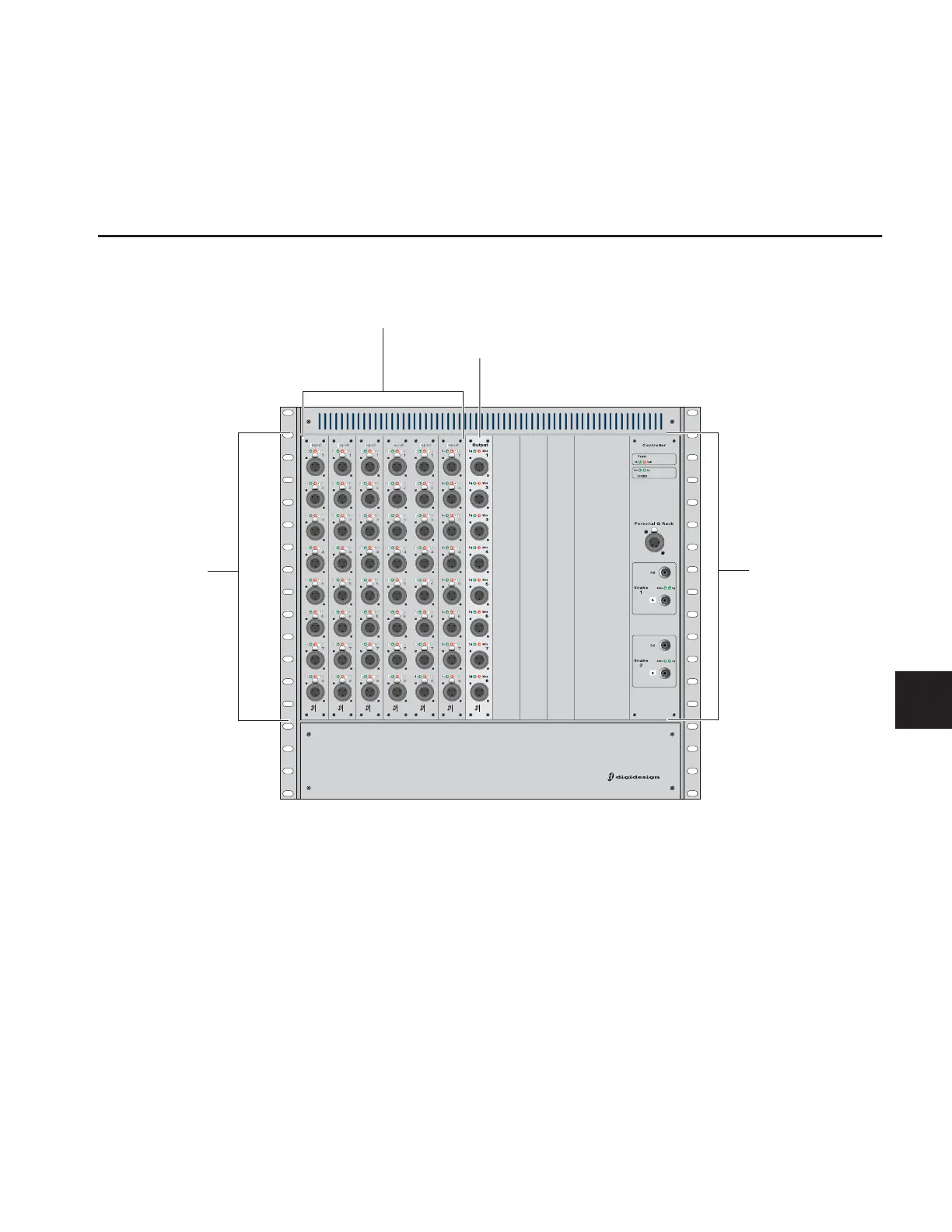

Figure 22. Stage Rack front panel
ABCDEFGHJ K LM
STAGE
SRI SRI SRI SRI SRI SRI SRO
I/O Section
Controller
Section
Stage Rack Input Cards
Stage Rack Output Card
