(5) Swing the EVAP canister away from the lower
bracket.
(6) Lift the EVAP canister up and off the upper
mounting tab (Fig. 17) and (Fig. 18).
INSTALLATION
(1) Install the EVAP canister to the upper mount-
ing bracket (Fig. 17) and (Fig. 18).
(2) Swing EVAP canister into the lower mounting
and snap into place (Fig. 16).
(3) Install the hoses to the top of the EVAP canis-
ter (Fig. 15).
(4) Connect the electrical connector.
(5) Install the fuel tank, refer to the fuel tank
installation section
(6) Connect the negative battery cable.

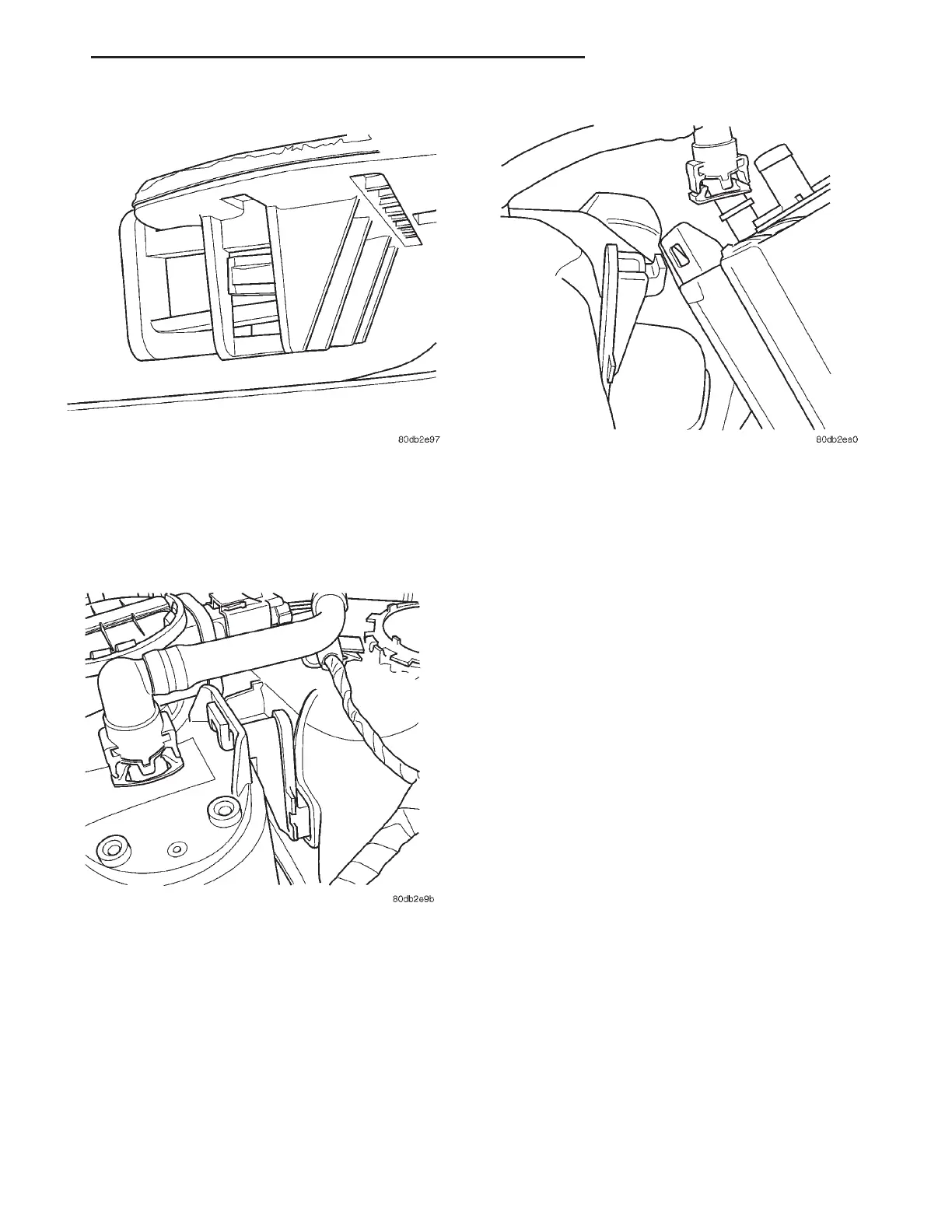

Fig. 16 EVAP CANISTER BOTTOM TABS
Fig. 17 EVAP CANISTER TOP TAB
Fig. 18 EVAP CANISTER TOP MOUNTING
LH EVAPORATIVE EMISSIONS 25 - 19
VAPOR CANISTER (Continued)
