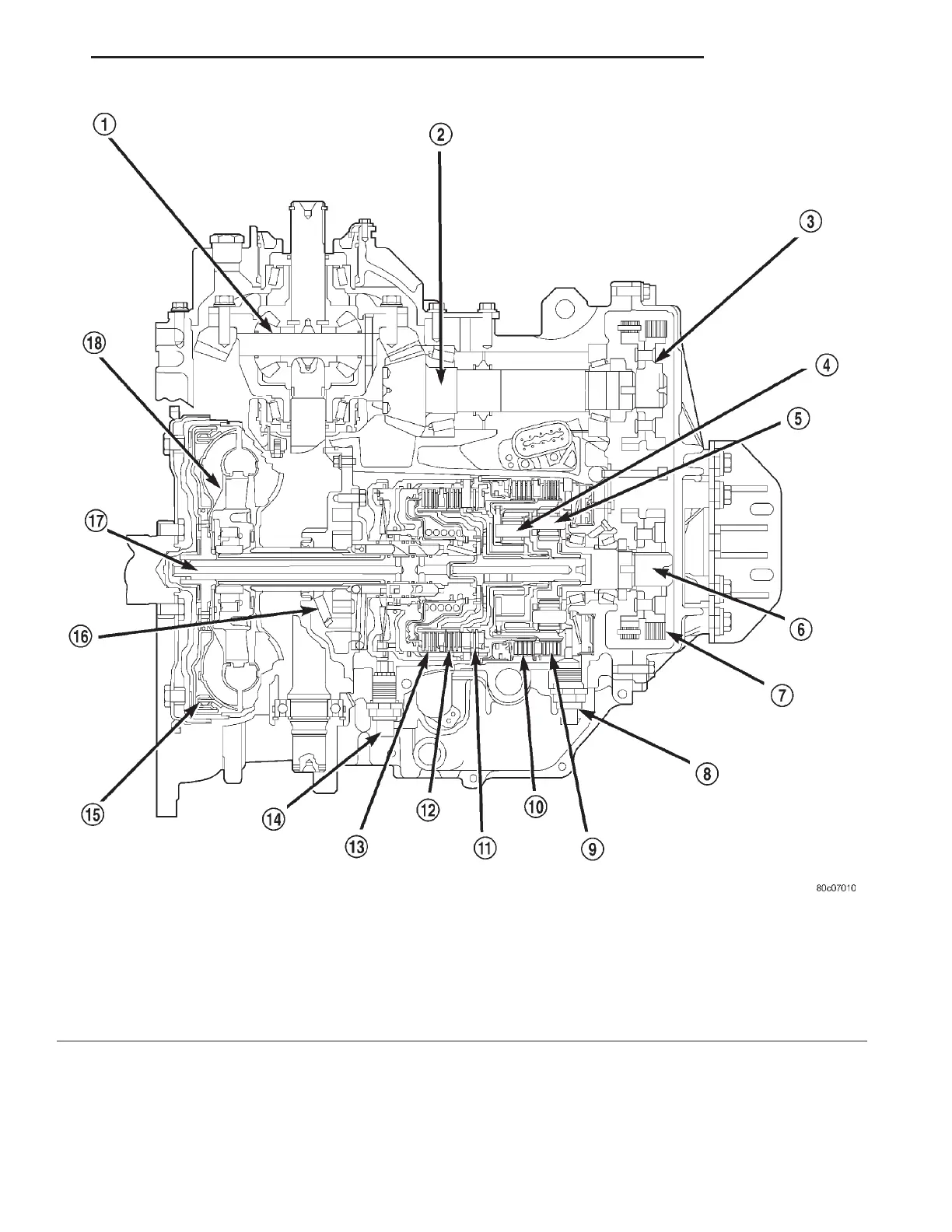

Fig. 1 42LE Transaxle
1 - DIFFERENTIAL 7 - OUTPUT GEAR 13 - UNDERDRIVE CLUTCH
2 - TRANSFER SHAFT 8 - OUTPUT SPEED SENSOR 14 - INPUT SPEED SENSOR
3 - TRANSFER GEAR 9 - LOW/REVERSE CLUTCH 15 - CONVERTER CLUTCH
4 - FRONT PLANET CARRIER 10 - 2/4 CLUTCH 16 - OIL PUMP
5 - REAR PLANET CARRIER 11 - REVERSE CLUTCH 17 - INPUT SHAFT
6 - OUTPUT SHAFT 12 - OVERDRIVE CLUTCH 18 - TORQUE CONVERTER
LH TRANSAXLE 21 - 3
42LE AUTOMATIC TRANSAXLE (Continued)
