SEATS
SPECIFICATIONS - TORQUE
TORQUE SPECIFICATIONS
DESCRIPTION N·m
Ft.
Lbs.
In.
Lbs.
Front seat track to floor pan bolts 61 45 —
Front seat inboard and outboard
pivot bolts
30 23 —
Front seat recliner to seat cushion
frame
12 9 —
Front seat track to cushion frame
bolt
12 9 —
Front seat back 40 30 —
Front seat back to seat cushion 30 22 —
Front seat back recliner to seat
back
8—71
Front seat rear outboard seat track
to floor pan bolts
28 20 —
Front seat airbag module to seat
back frame
7—62
Rear seat center seat belt retractor
to shelf
60 44 —
FRONT ARMREST
REMOVAL - 50/50 SPLIT
(1) Move the driver seat full forward and the pas-
senger seat full rearward.
(2) Open arm rest lid (Fig. 1).
(3) Remove access retaining nut cover.
(4) Remove arm rest retaining nut.
(5) Slide arm rest off of bracket (Fig. 2).
INSTALLATION - 50/50 SPLIT
(1) Slide arm rest on bracket.
(2) Install arm rest nut. Tighten nut to 25 N·m (18
ft. lbs.) torque.
(3) Install access retaining nut cover.
(4) Reposition the seats.

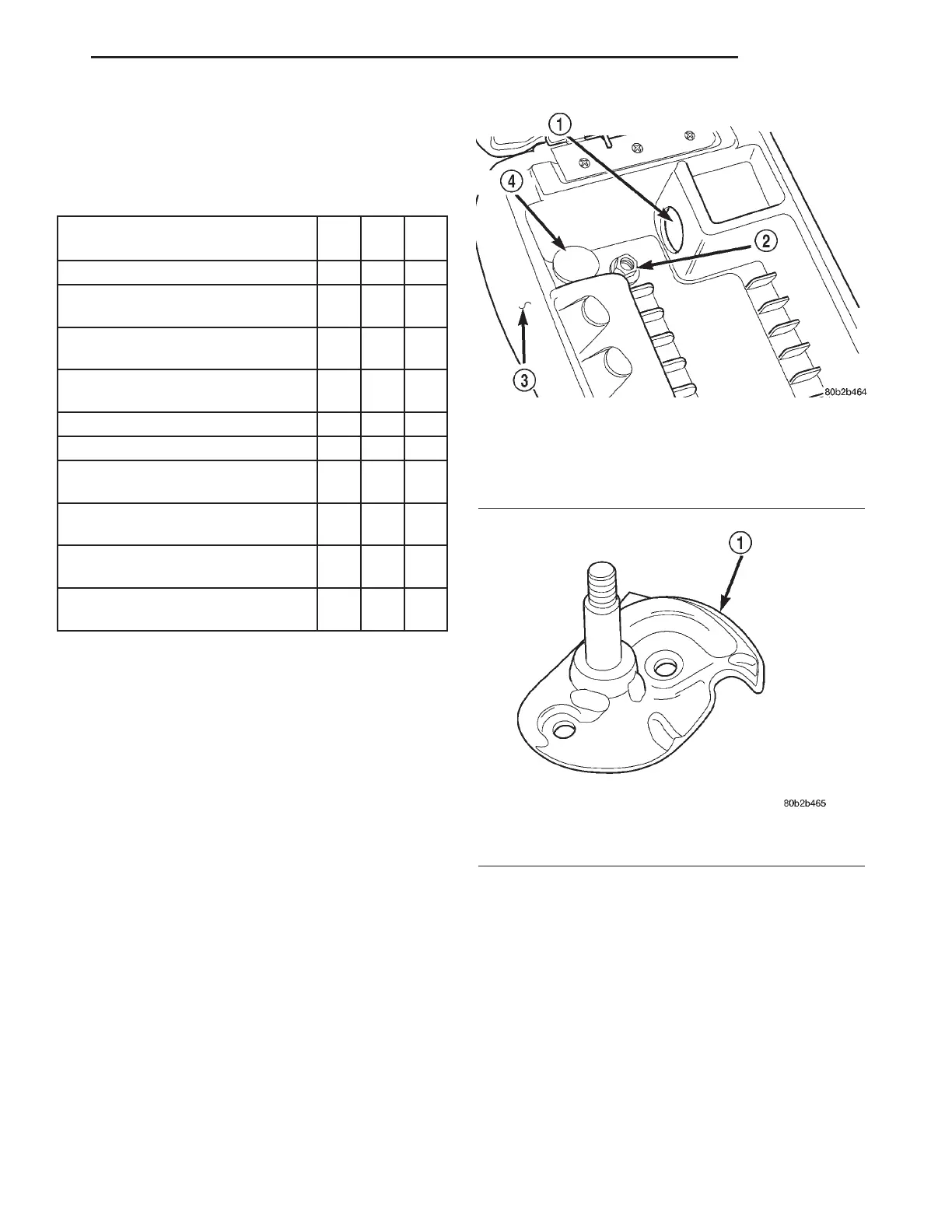

Fig. 1 ARM REST ACCESS HOLE
1 - REMOVE ACCESS HOLE
2 - NUT
3 - ARM REST
4 - COVER
Fig. 2 ARM REST BRACKET
1 - ARMREST BRACKET
LH SEATS 23 - 79
