AIR CLEANER ELEMENT
REMOVAL
(1) Remove air cleaner lid. Lift lid off of air cleaner
housing.
(2) Remove filter element (Fig. 9).
INSTALLATION
(1) If necessary, clean the inside of the air cleaner
housing.
(2) Install new filter element (Fig. 9).
(3) Place lid over air cleaner housing.
CYLINDER HEAD
DESCRIPTION
The aluminum alloy cylinder heads feature cross-
flow type intake and exhaust ports. Valve guides and
seat inserts are powdered metal. Valves are arranged
in a “V”, with each camshaft on center. To improve
combustion speed the chambers are a compact spher-
ical design with a squish area of approximately 30
percent of the piston top area. The cylinder heads are
common to either cylinder bank by reversing the
direction of installation.
DIAGNOSIS AND TESTING—CYLINDER HEAD
GASKET
A cylinder head gasket leak can be located between
adjacent cylinders or between a cylinder and the
adjacent water jacket.
Possible indications of the cylinder head gasket
leaking between adjacent cylinders are:
• Loss of engine power
• Engine misfiring
• Poor fuel economy
Possible indications of the cylinder head gasket
leaking between a cylinder and an adjacent water
jacket are:
• Engine overheating
• Loss of coolant
• Excessive steam (white smoke) emitting from
exhaust
• Coolant foaming
Pressure Transducer CH7059
Adaptor 8116
Cooling System Tester 7700
Combustion Leak Tester C-3685-A

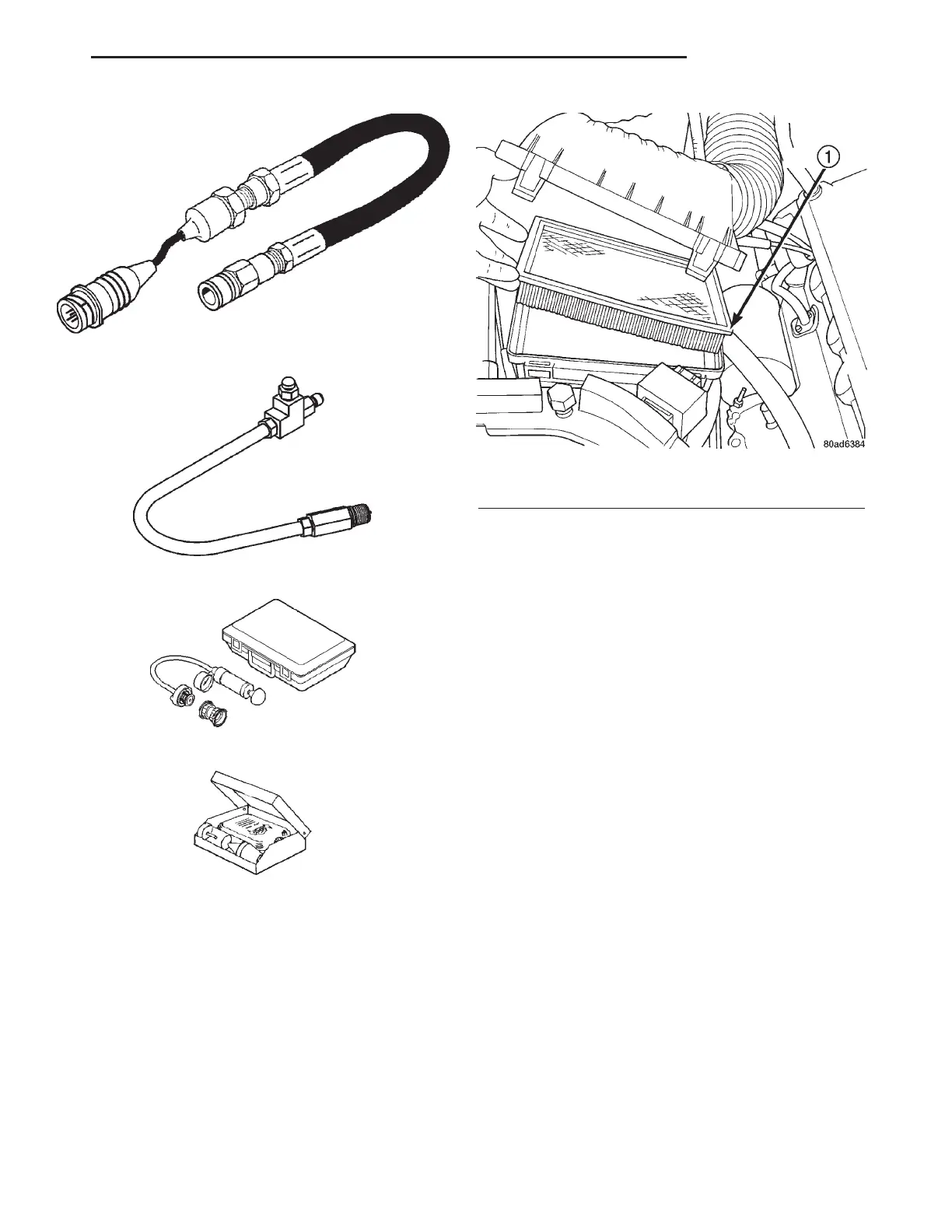

Fig. 9 Air Cleaner Housing and Element
1 - AIR FILTER ELEMENT
LH ENGINE 3.5L 9 - 109
ENGINE 3.5L (Continued)
