CYLINDER HEAD COVER(S)
REMOVAL
(1) Remove upper intake manifold. (Refer to 9 -
ENGINE/MANIFOLDS/INTAKE MANIFOLD -
REMOVAL)
(2) Remove electrical connectors from ignition
coils.
(3) Remove ground strap from right cylinder head.
(4) Disconnect electrical and vacuum harness
retaining clips from cylinder head cover studs.
(5) Remove fasteners attaching ignition coil capac-
itors.
(6) Loosen all cylinder head cover attaching bolts
(Fig. 26).
NOTE: Cylinder head cover attaching bolts are cap-
tured to the cover.
(7) Remove cylinder head covers.

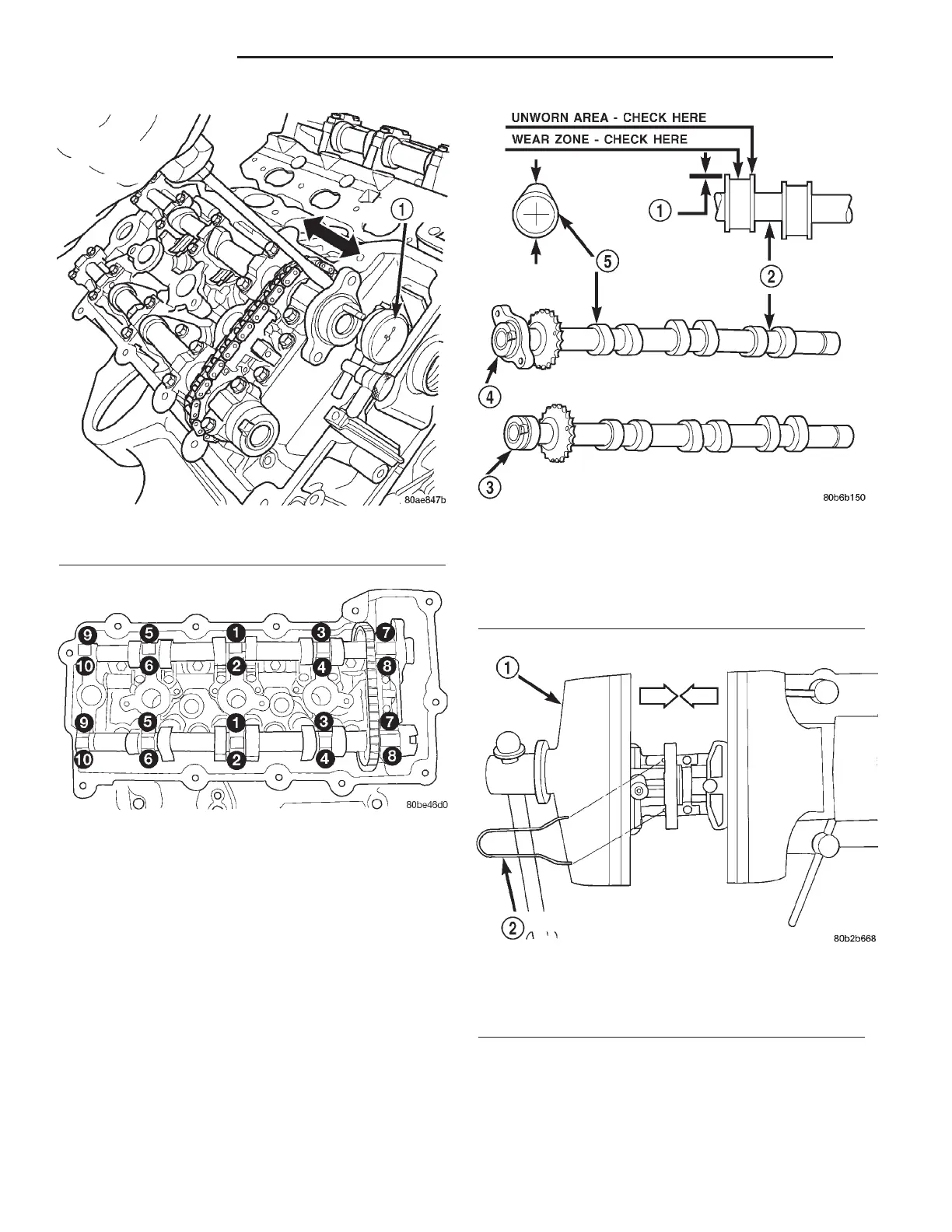

Fig. 21 Camshaft End Play Measuring
1 - DIAL INDICATOR
Fig. 22 Camshaft Bearing Cap Tightening Sequence
Fig. 23 Camshaft Inspection
1 - ACTUAL WEAR
2 - BEARING JOURNAL
3 - EXHAUST CAMSHAFT
4 - INTAKE CAMSHAFT
5 - LOBE
Fig. 24 Locking Camshaft (Secondary) Chain
Tensioner
1 - VISE
2 - LOCK PIN
9 - 30 ENGINE 2.7L LH
CAMSHAFT(S) (Continued)
