(8) Remove the ignition key and remove lower col-
umn cover (Fig. 351).
(9) Remove the interlock cable from the shifter
housing. Slide the cable out of the groove in the
interlock lever (Fig. 352).
(10) Disconnect the BTSI solenoid connector.
(11) Depress the lock tab (Fig. 353) on the inter-
lock cable and pull the cable out of the lock cylinder
housing (Fig. 354).
(12) Remove interlock cable. Note cable routing so
it can be installed in the same manner.
INSTALLATION
(1) Ensure ignition switch is in the “ON/RUN”
position (Fig. 355).
(2) Route the interlock cable into position as previ-
ously removed.
(3) Slide the steering column end of the interlock
cable into the lock cylinder housing until it snaps
into place (Fig. 354).
(4) Connect BTSI solenoid connector.
(5) Turn the ignition key to the “LOCK” position
(Fig. 355).
(6) Put the shifter in the PARK position.

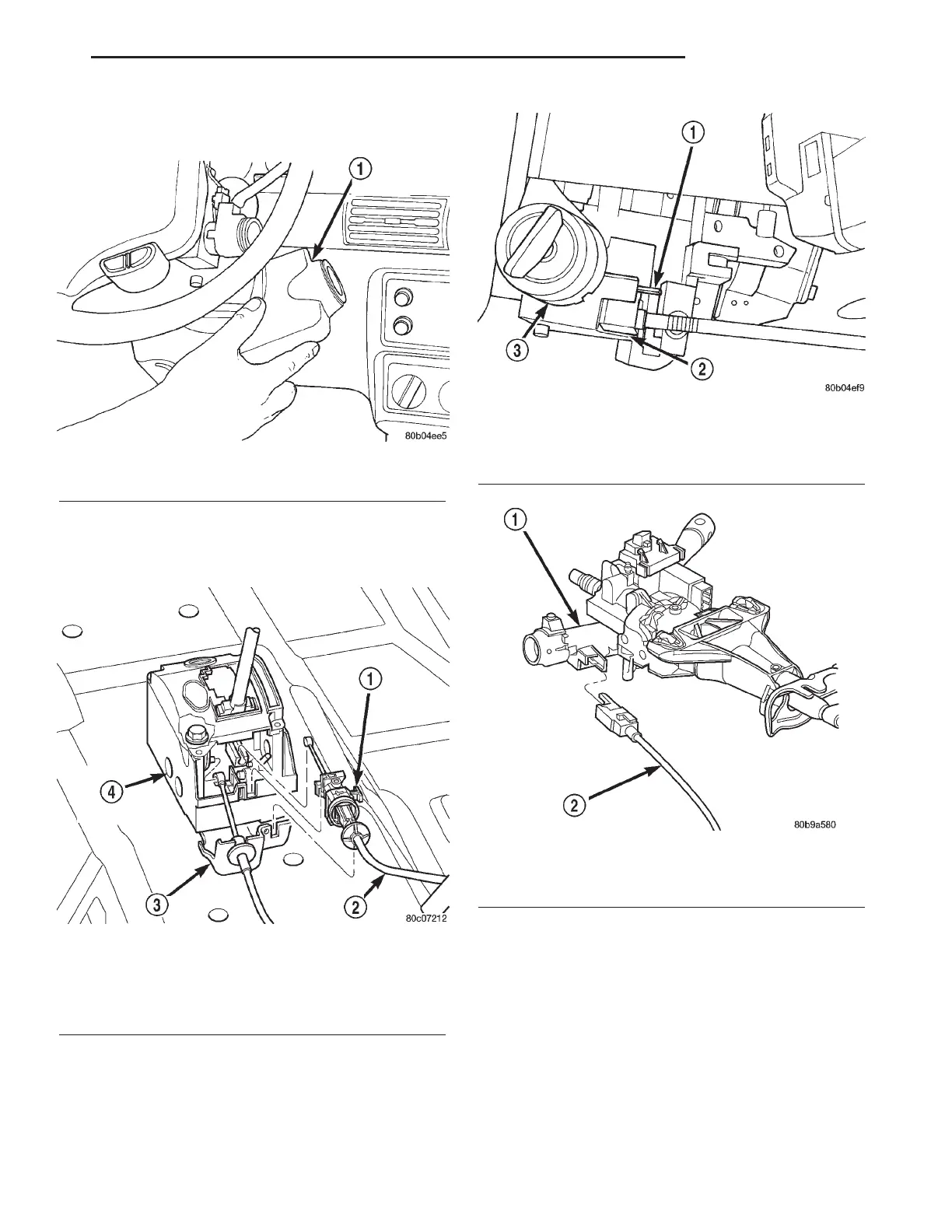

Fig. 351 Lower Column Cover Removal/Installation
1 - LOWER COLUMN COVER
Fig. 352 Interlock Cable Removal/Installation
1 - LOCKING CLIP
2 - INTERLOCK CABLE
3 - BRACKET
4 - SHIFTER ASSEMBLY
Fig. 353 Interlock Cable Locking Tab
1-TAB
2 - INTERLOCK CABLE
3 - LOCK CYLINDER HOUSING
Fig. 354 Interlock Cable Removal/Installa
1 - LOCK CYLINDER HOUSING
2 - INTERLOCK CABLE
LH TRANSAXLE 21 - 133
SHIFT INTERLOCK CABLE (Continued)
