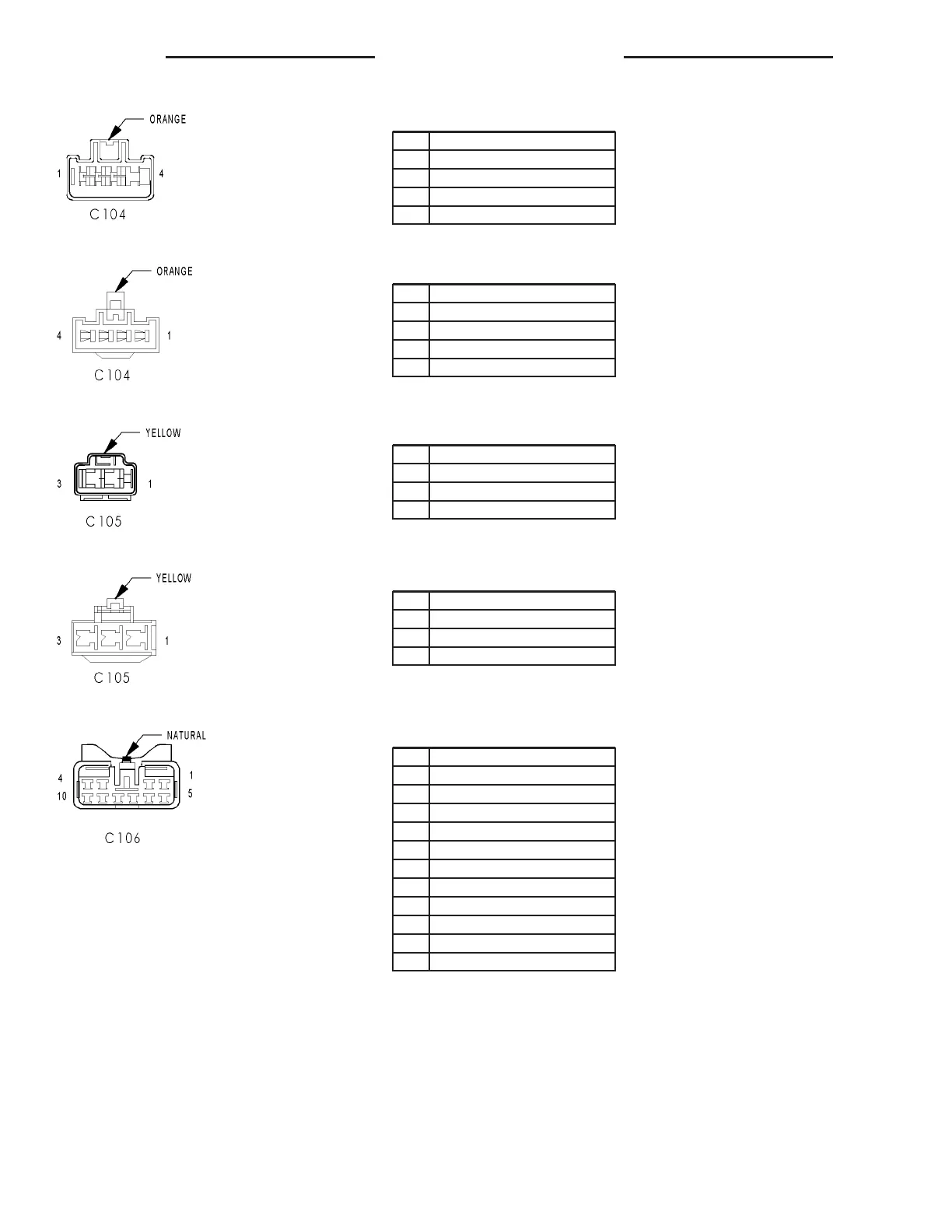

C104 - ORANGE (HEADLAMP/DASH SIDE)
CAV CIRCUIT
1 A1 12RD
2 A2 12PK/BK
3 A41 12YL
4-
C104 - ORANGE (I/P HARNESS SIDE)
CAV CIRCUIT
1 A1 12RD
2 A2 12PK/BK
3 A41 14YL
4-
C105 - YELLOW (BODY HARNESS SIDE)
CAV CIRCUIT
1 L13 18BR/YL
2 A141 12DG/WT
3 A4 10BK/PK
C105 - YELLOW (HEADLAMP/DASH SIDE)
CAV CIRCUIT
1 A4 10BK/PK
2 A141 12DG/WT
3 L13 18BR/YL
C106 - NATURAL (BODY HARNESS SIDE)
CAV CIRCUIT
1 B4 18LG
2 B3 18LG/DB
3 B2 18YL
4 B1 18YL/DB
5 K106 18WT/DG
6 K107 20OR/RD
7-
8 Z1 18BK (EXCEPT 300M)
8 L95 16DG/YL (300M/BUILT-UP-EXPORT)
9 T44 20YL/LB (300M/DODGE)
10 T5 20LG/RD (300M/DODGE)
8W - 80 - 12 8W-80 CONNECTOR PIN-OUTS LH
