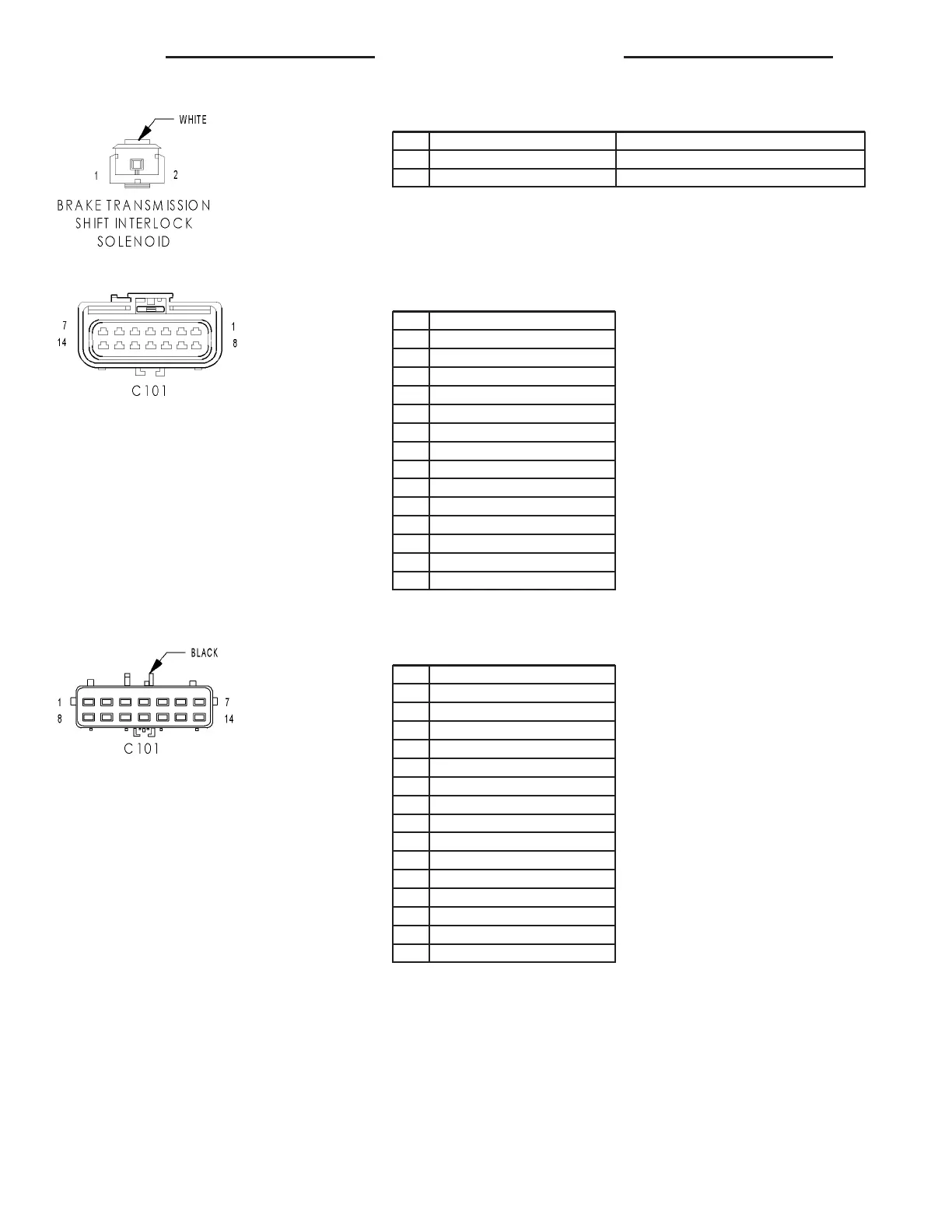

BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID - WHITE 2 WAY
CAV CIRCUIT FUNCTION
1 K29 20WT/PK BRAKE SWITCH SENSE
2 G5 20DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
C101 - (HEADLAMP/DASH SIDE)
CAV CIRCUIT
1 F42 16DG/LG
2 K236 18GY/PK
3 Z12 14BK/TN
4-
5-
6-
7 C2 14DB/BK
8 Z1 14BK
9 T40 12BR
10 G6 20GY
11 Z1 16BK/WT
12 C18 20DB
13 -
14 K4 18BK/LB
C101 - BLACK (ENGINE HARNESS SIDE)
CAV CIRCUIT
1 F42 16DG/LG
2 K236 18GY/PK (3.5L)
3 Z12 18BK/TN (3.5L)
3 Z12 14BK/TN (2.7L)
4-
5-
6-
7 C2 14DB/BK
8 Z1 14BK
9 T40 12LG
10 G6 20GY
11 Z1 18BK
12 C18 20DB
13 -
14 K4 18BK/LB
8W - 80 - 10 8W-80 CONNECTOR PIN-OUTS LH
