VIBRATION DAMPER
REMOVAL
(1) Disconnect negative cable at right strut tower.
(2) Remove upper radiator crossmember. (Refer to
23 - BODY/EXTERIOR/GRILLE OPENING REIN-
FORCEMENT - REMOVAL)
(3) Remove radiator fan. (Refer to 7 - COOLING/
ENGINE/RADIATOR FAN - REMOVAL)
(4) Remove the accessory drive belts. (Refer to 7 -
COOLING/ACCESSORY DRIVE/DRIVE BELTS -
REMOVAL)
(5) Use Special Tool 8191 to hold crankshaft
damper while removing center bolt (Fig. 95).
(6) Use Special Tool 1023 puller, and insert
C-4685-C2, remove crankshaft damper (Fig. 96).
INSTALLATION
(1) Install crankshaft damper using Special Tools
C-4685-C1 (5.9 in.) Bolt, with Nut and Thrust Bear-
ing from 6792, and 6792-1 Installer (Fig. 97). Install
center bolt and tighten to 115 N·m (85 ft. lbs.) (Fig.
95).
(2) Install accessory drive belts. (Refer to 7 -
COOLING/ACCESSORY DRIVE/DRIVE BELTS -
INSTALLATION)
(3) Install radiator fan. (Refer to 7 - COOLING/
ENGINE/RADIATOR FAN - INSTALLATION)
(4) Install upper radiator crossmember. (Refer to
23 - BODY/EXTERIOR/GRILLE OPENING REIN-
FORCEMENT - INSTALLATION)
(5) Connect negative cable.

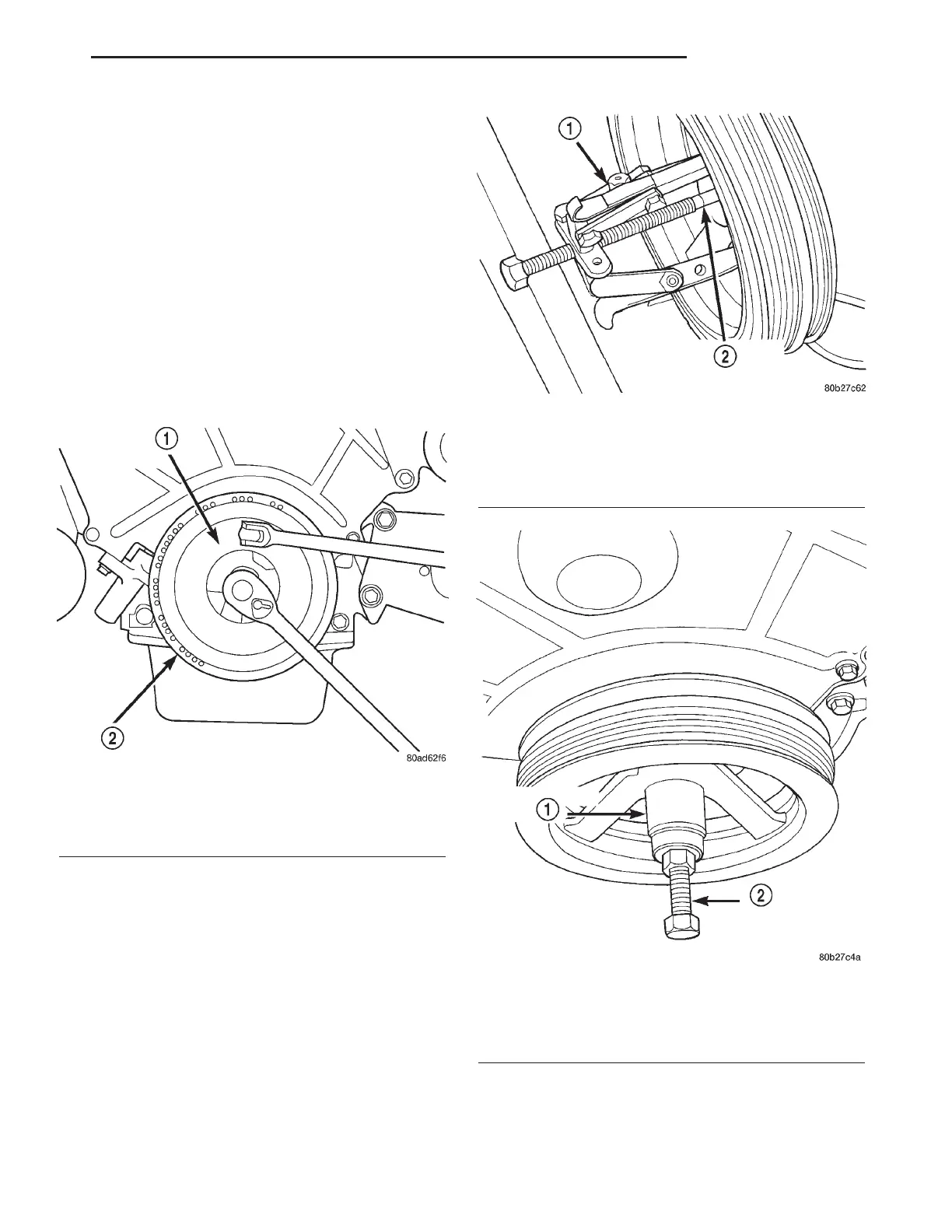

Fig. 95 Crankshaft Damper Center Bolt - Removal
and Installation
1 - SPECIAL TOOL 8191
2 - CRANKSHAFT DAMPER
Fig. 96 CRANKSHAFT DAMPER - REMOVAL
1 - SPECIAL TOOL
1023
2 - SPECIAL TOOL
C-4685–C2
INSERT
Fig. 97 CRANKSHAFT DAMPER - INSTALLATION
1 - SPECIAL TOOL
6792–1
2 - SPECIAL TOOL
C-4685–C1
LH ENGINE 3.5L 9 - 145
