CRANKSHAFT OIL SEAL -
FRONT
REMOVAL
(1) Remove crankshaft vibration damper. (Refer to
9 - ENGINE/ENGINE BLOCK/VIBRATION
DAMPER - REMOVAL)
(2) Install Special Tool 8194, Insert into crankshaft
nose. Remove seal using Special Tool 6771, Remover
(Fig. 57).
INSTALLATION
(1) Install new seal using Special Tools 6780-2
Sleeve, 6780-1 Installer, and 8179 Stud (Fig. 58).
(2) Install crankshaft vibration damper. (Refer to 9
- ENGINE/ENGINE BLOCK/VIBRATION DAMPER -
INSTALLATION)

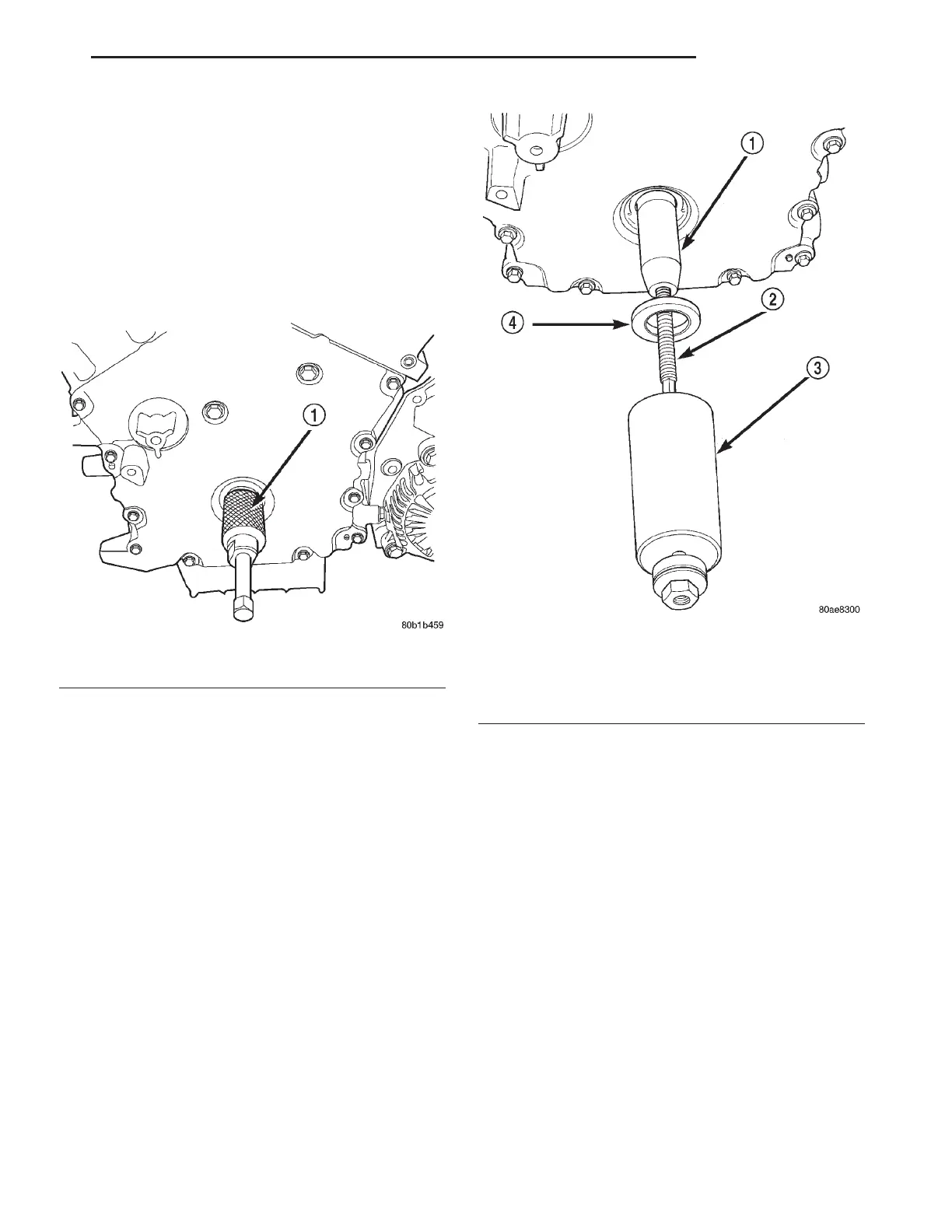

Fig. 57 Crankshaft Front Oil Seal - Removal
1 - SPECIAL TOOL 6771
Fig. 58 Crankshaft Front Oil Seal - Installation
1 - SPECIAL TOOL 6780–2
2 - SPECIAL TOOL 8179
3 - SPECIAL TOOL 6780–1
4 - SEAL
LH ENGINE 2.7L 9 - 47
