TIMING BELT COVER(S) -
FRONT
REMOVAL
(1) Disconnect negative cable from remote jumper
terminal.
(2) Remove upper radiator crossmember. (Refer to
23 - BODY/EXTERIOR/GRILLE OPENING REIN-
FORCEMENT - REMOVAL)
(3) Remove the radiator fan (Refer to 7 - COOL-
ING/ENGINE/RADIATOR FAN - REMOVAL)
(4) Remove the accessory drive belts. (Refer to 7 -
COOLING/ACCESSORY DRIVE/DRIVE BELTS -
REMOVAL)
(5) Remove crankshaft vibration damper. (Refer to
9 - ENGINE/ENGINE BLOCK/VIBRATION
DAMPER - REMOVAL)
(6) Remove the lower belt cover located behind the
crankshaft vibration damper (Fig. 135).
(7) Remove the A/C belt guide/lift bracket (Fig.
134).

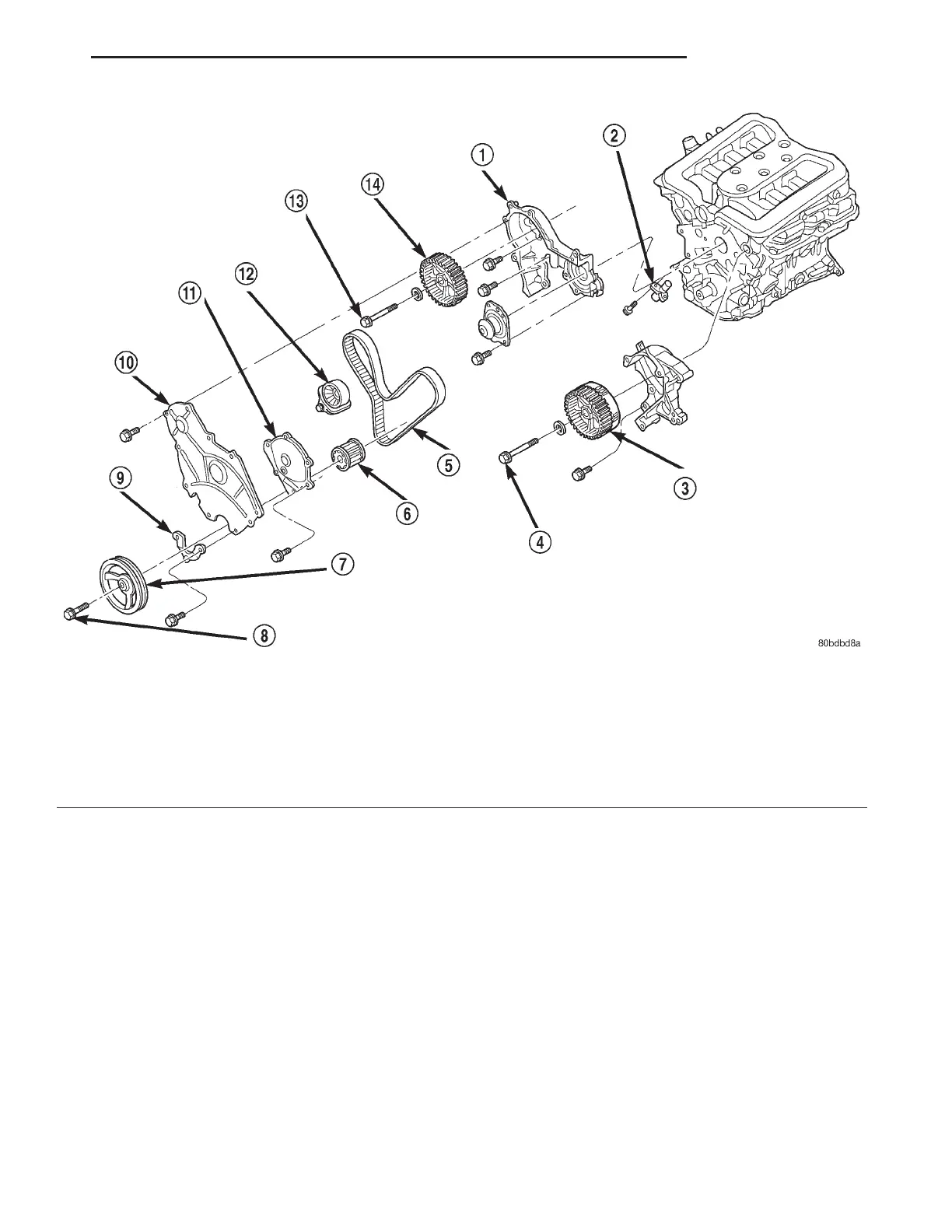

Fig. 133 TIMING DRIVE SYSTEM
1 - TIMING BELT COVER - RIGHT REAR 8 - BOLT-CRANKSHAFT DAMPER
2 - TENSIONER-TIMING BELT 9 - TIMING BELT COVER-LOWER
3 - CAMSHAFT SPROCKET 10 - TIMING BELT COVER-RIGHT
4 - BOLT-CAMSHAFT SPROCKET 11 - TIMING BELT COVER-LEFT
5 - TIMING BELT 12 - TENSIONER PULLEY
6 - CRANKSHAFT SPROCKET 13 - BOLT-CAMSHAFT SPROCKET
7 - CRANKSHAFT DAMPER 14 - CAMSHAFT SPROCKET
LH ENGINE 3.5L 9 - 167
VALVE TIMING (Continued)
