steering fluid reservoir. Let power steering fluid
drain from hoses and reservoir.
(4) Lower the vehicle.
(5) Remove the power steering fluid reservoir from
the mounting bracket by rotating the rear of the res-
ervoir toward the engine and out of the bracket.
INSTALLATION
INSTALLATION - RESERVOIR (2.7L ENGINE)
(1) Lubricate the O-ring seal on the power steering
fluid reservoir (Fig. 45) with fresh clean power steer-
ing fluid.
(2) Install the power steering fluid reservoir on the
power steering pump (Fig. 43). The reservoir is
installed on the pump by pressing the nipple of the
reservoir straight into the pump without twisting or
rotating the reservoir.
(3) Install and securely tighten the three bolts
mounting the power steering fluid reservoir to the
power steering pump. Tighten bolt on pulley side to
13 N·m (115 in. lbs.). Tighten bolts on rear to 24 N·m
(212 in. lbs.).
(4) Install the power steering pump on the engine.
(Refer to 19 - STEERING/PUMP - INSTALLATION)

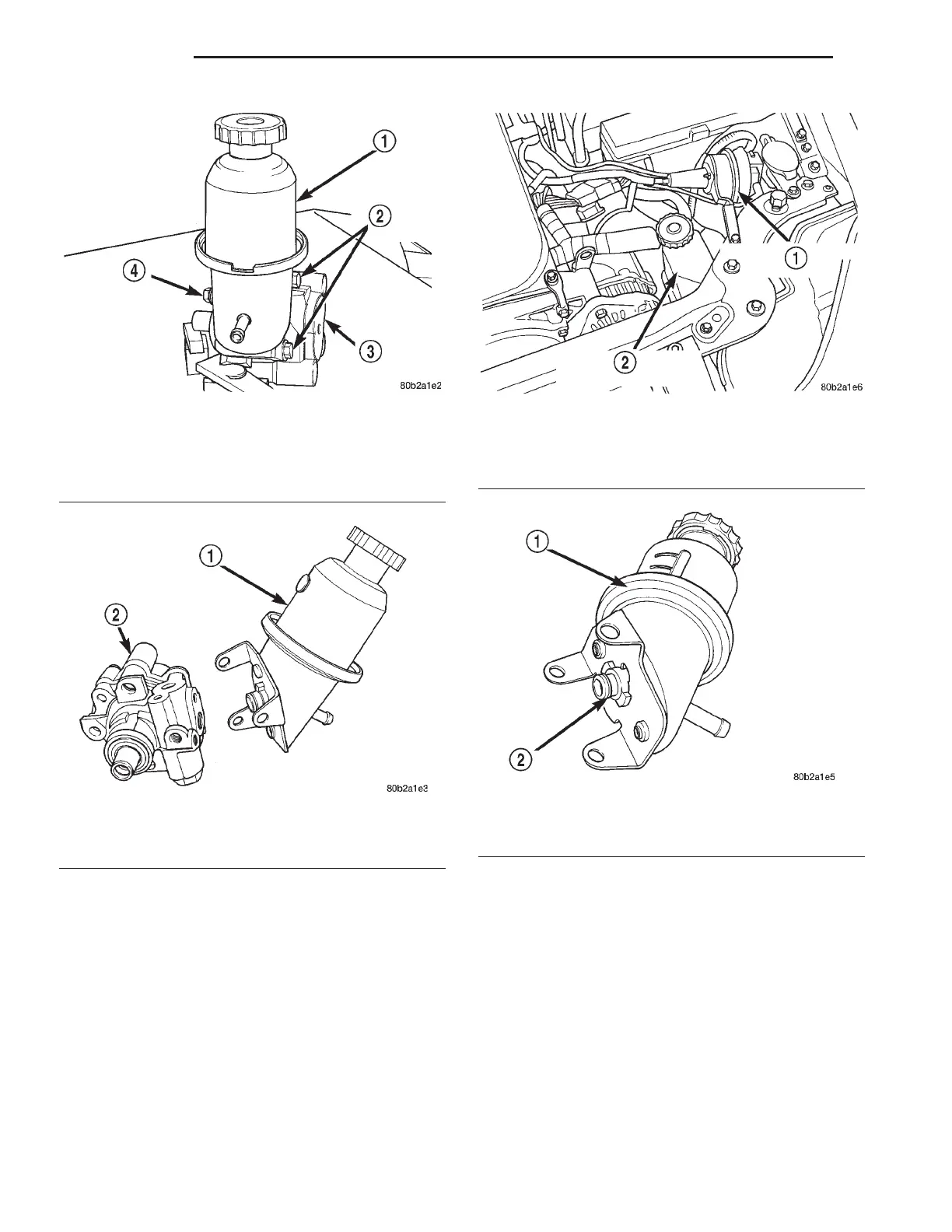

Fig. 42 Fluid Reservoir To Pump Mounting
1 - POWER STEERING FLUID RESERVOIR
2 - MOUNTING BOLTS
3 - POWER STEERING PUMP
4 - MOUNTING BOLT
Fig. 43 Fluid Reservoir Removal/Installation
1 - POWER STEERING FLUID RESERVOIR
2 - POWER STEERING PUMP
Fig. 44 Power Steering Fluid Reservoir (3.5L
Engine)
1 - SPEED CONTROL SERVO
2 - POWER STEERING FLUID RESERVOIR
Fig. 45 Reservoir O-Ring Seal
1 - POWER STEERING FLUID RESERVOIR
2 - O-RING
19 - 68 PUMP LH
RESERVOIR (Continued)
