REAR ARMREST
REMOVAL
REMOVAL - 60/40
(1) Fold down 40 side rear seat back.
(2) Remove arm rest bolt (Fig. 30).
(3) Remove retaining C-clip.
(4) Remove arm rest.
REMOVAL - REAR SKI/PASS
(1) Remove rear seat back (Refer to 23 - BODY/
SEATS/REAR SEAT BACK - REMOVAL). (Fig. 31)
(2) Remove silencer panel fasteners on the back of
seat back (Fig. 32).
(3) Remove silencer panel.
(4) Remove fasteners attaching arm rest to seat
back (Fig. 33).
(5) Remove arm rest (Fig. 34).
INSTALLATION
INSTALLATION - 60/40
(1) Place arm rest in bracket.
(2) Install arm rest bolt. Tighten to 12 N·m (9 ft.
lbs.) torque.
(3) Install retaining C-clip.
(4) Reposition the seats.

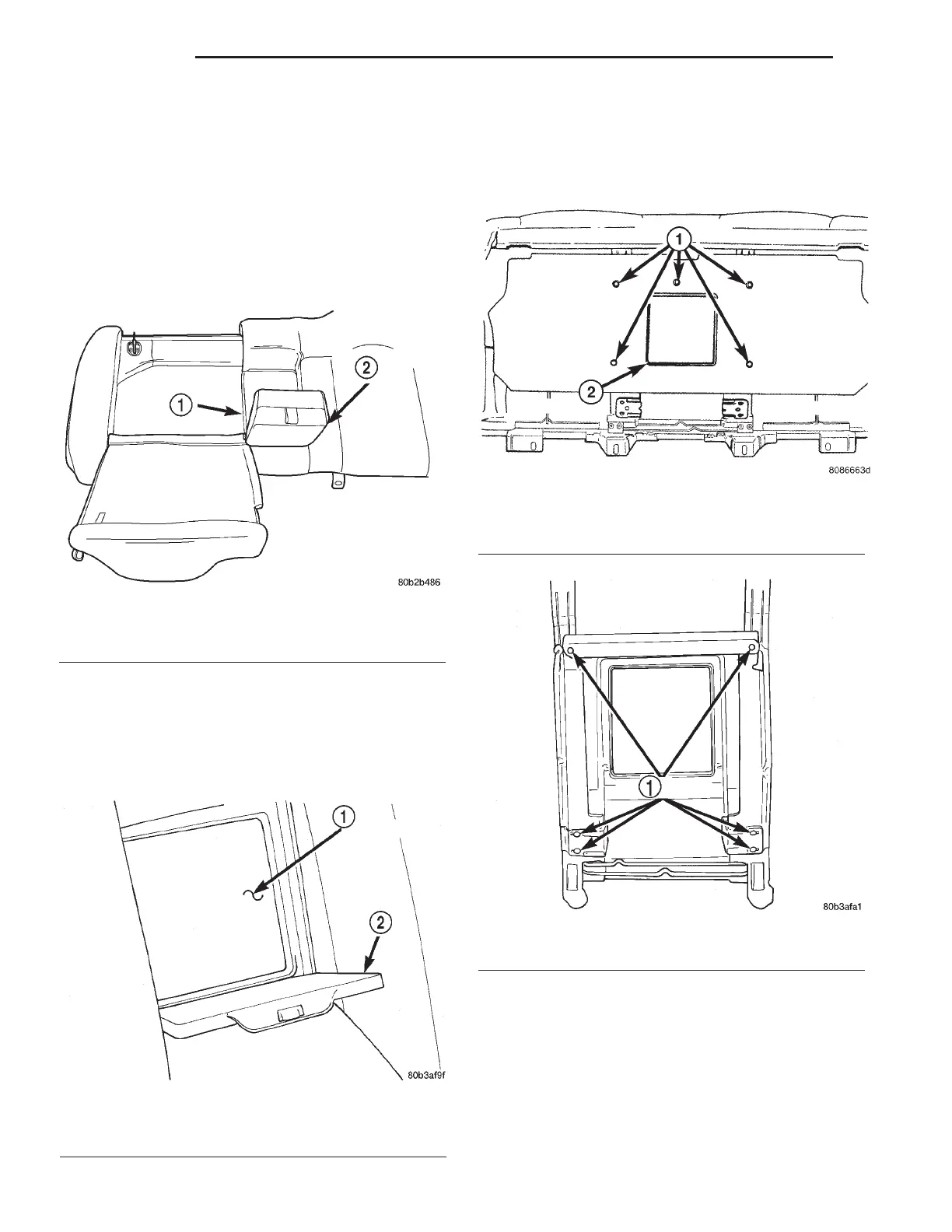

Fig. 31 ARM REST WITH SKI PASS
1 - SKI PASS
2 - DOOR
Fig. 30 REAR SEAT ARM REST - 60/40
1 - BOLT
2 - RETAINING C-CLIP
Fig. 32 REAR SEAT SILENCER
1 - FASTENERS
2 - SKI PASS
Fig. 33 REAR SEAT ARM REST WITH SKI PASS
1 - FASTENERS
23 - 92 SEATS LH
