INSTALLATION - REAR SKI/PASS
(1) Place arm rest into position.
(2) Install fasteners attaching arm rest to seat
back. Tighten fasteners to 5 N·m (45 in. lbs.) torque.
(3) Install silencer fasteners. Use new fasteners.
(4) Install seat back (Refer to 23 - BODY/SEATS/
REAR SEAT BACK - REMOVAL).
REAR SEAT BACK
REMOVAL
REMOVAL
(1) Remove rear seat cushion (Refer to 23 - BODY/
SEATS/SEAT CUSHION - REAR - REMOVAL).
(2) Remove inboard nuts attaching rear seat back
and belts to floor and outboard bolts attaching seat
back to floor (Fig. 35).
(3) Pull bottom of seat back out to slide rear seat
back mounts off studs. Push rear seat back upward
to disengage hooks at top of seat back.
(4) Remove rear seat back from vehicle.
REMOVAL - 40 SECTION
(1) Remove seat back collar assembly (Refer to 23 -
BODY/SEATS/REAR SEAT BACK - COLLAR
ASSEMBLY - REMOVAL). (Fig. 36)
(2) Remove bolt attaching 40 section (Fig. 37).
(3) Slide seat back 40 section off pin and remove
from the collar assembly (Fig. 38).

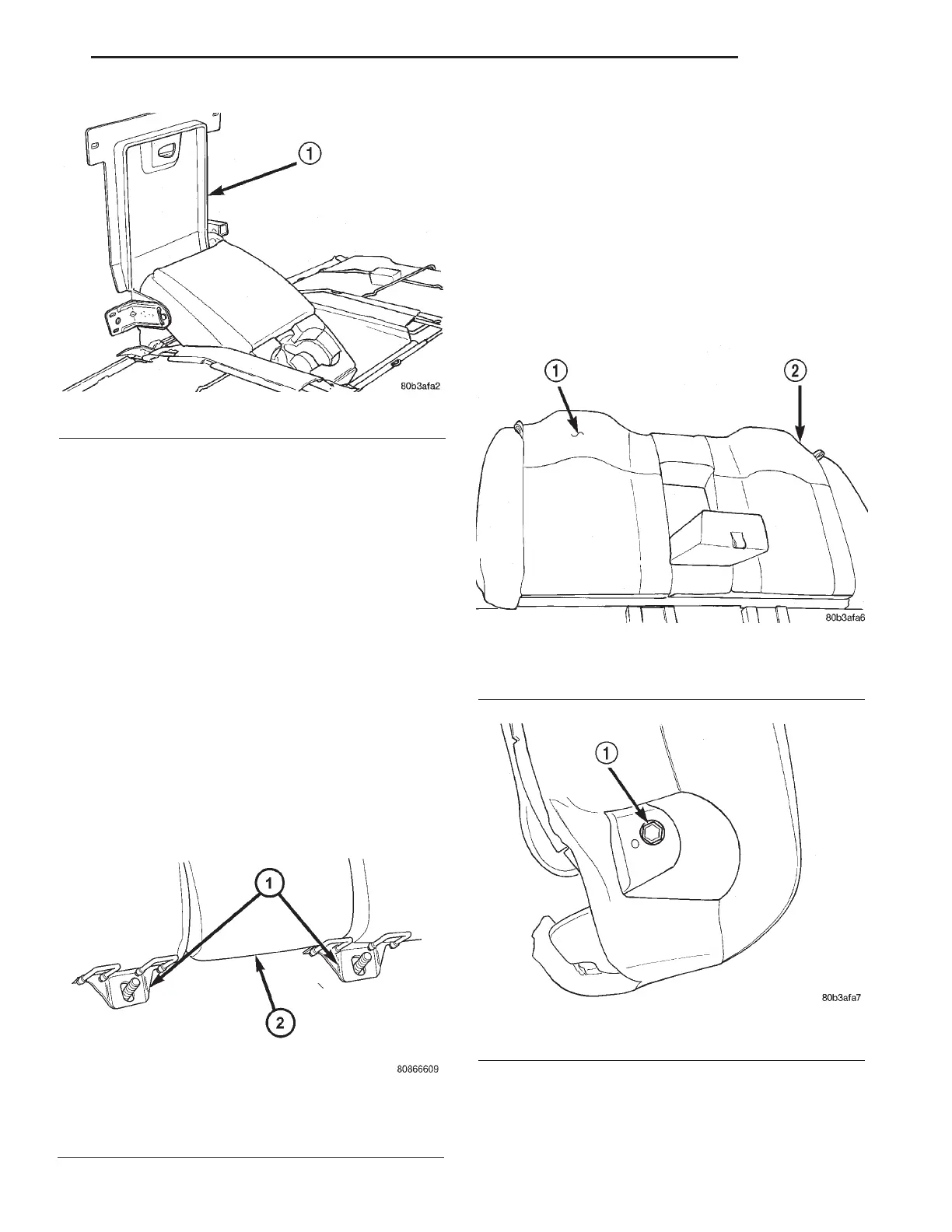

Fig. 35 REAR SEAT BACK
1 - REAR SEAT BACK MOUNTS
2 - REAR SEAT BACK
3 - REAR SEAT BELTS
Fig. 34 ARM REST REMOVAL
1 - ARM REST WITH SKI PASS
Fig. 36 Collar Assembly
1 - 40 SECTION
2 - 60 SECTION
Fig. 37 Remove 40 Section Seat Back
1 - ATTACHING BOLT
LH SEATS 23 - 93
REAR ARMREST (Continued)
