SEAT TRACK & RECLINER
ASSEMBLY
REMOVAL
WARNING: DISCONNECT AND ISOLATE THE NEGA-
TIVE BATTERY CABLE REMOTE TERMINAL
BEFORE BEGINNING ANY FRONT SEAT REMOVAL
OR INSTALLATION PROCEDURE. THIS WILL DIS-
ABLE THE AIRBAG SYSTEM. FAILURE TO DISCON-
NECT THE BATTERY COULD RESULT IN
ACCIDENTAL AIRBAG DEPLOYMENT AND POSSI-
BLE PERSONAL INJURY.
WARNING: ONCE THE NEGATIVE CABLE IS DIS-
CONNECTED WAIT FOR 2 MINUTES BEFORE
REMOVING ANY AIRBAG SYSTEM COMPONENTS.
(1) Remove seat cushion side shield (Refer to 23 -
BODY/SEATS/SEAT SIDE SHIELD - REMOVAL).
(2) Remove bolts attaching seat back recliner to
seat back frame on each side of seat (Fig. 28).
(3) Remove bolts attaching seat adjuster to cush-
ion pan (Fig. 29).
(4) Disconnect wire harness fasteners from cushion
pan.
(5) Remove seat adjuster from seat cushion.
INSTALLATION
(1) Place seat adjuster in position on seat cushion
pan.
(2) Connect wire harness fasteners to the cushion
pan.
(3) Install bolts attaching seat adjuster to cushion
pad.
(4) Install seat back.
(5) Install bolt attaching seat back recliner to seat
back on each side of seat. Tighten bolt to 8 N·m (71
in. lbs.) torque.
(6) Install the seat cushion side shields (Refer to
23 - BODY/SEATS/SEAT SIDE SHIELD - INSTAL-
LATION).

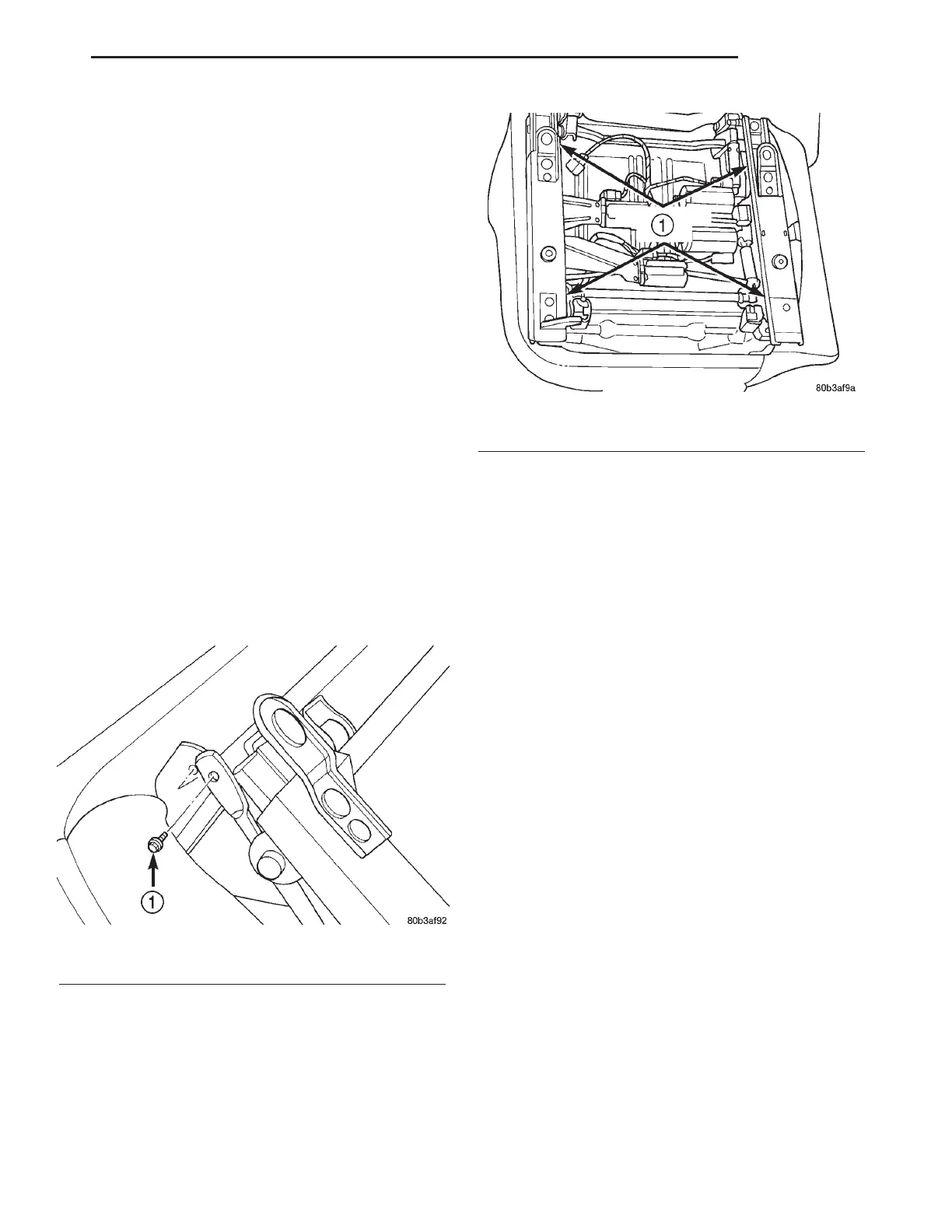

Fig. 28 RECLINER PIVOT BOLT
1 - RECLINER BOLT
Fig. 29 FRONT SEAT TRACK - TYPICAL
1 - ATTACHING BOLTS
LH SEATS 23 - 91
