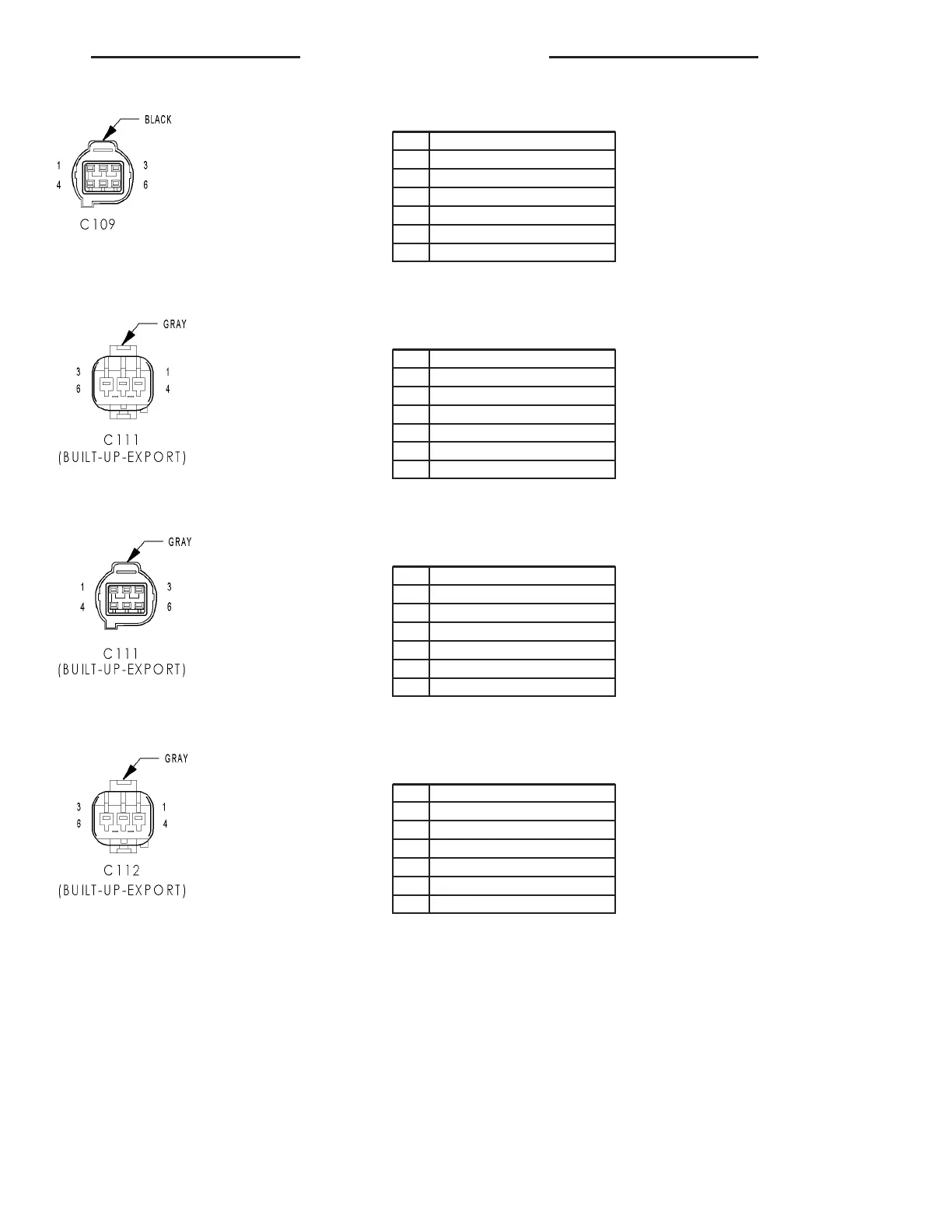

C109 - BLACK (HEADLAMP AND DASH SIDE)
CAV CIRCUIT
1 L60 18TN
2 L7 18BK/YL
3 L61 18LG
4-
5 L39 20LB
6 Z1 18BK
C111 (BUILT-UP-EXPORT) - GRAY (HEADLAMP
LEVELING SIDE)
CAV CIRCUIT
1 L43 16VT
2 L7 20BK/YL
3 Z1 16BK
4-
5 L13 20BR/YL
6 L33 20RD
C111 (BUILT-UP-EXPORT) - GRAY (HEADLAMP
MODULE SIDE)
CAV CIRCUIT
1 L43 20VT
2 L7 20BK/YL
3 Z1 20BK
4-
5 L13 20BR/YL
6 L33 20RD
C112 (BUILT-UP-EXPORT) - GRAY (HEADLAMP
MODULE SIDE)
CAV CIRCUIT
1 L44 16VT/RD
2 L7 20BK/YL
3 Z1 16BK
4-
5 L13 20BR/YL
6 L34 20RD/OR
