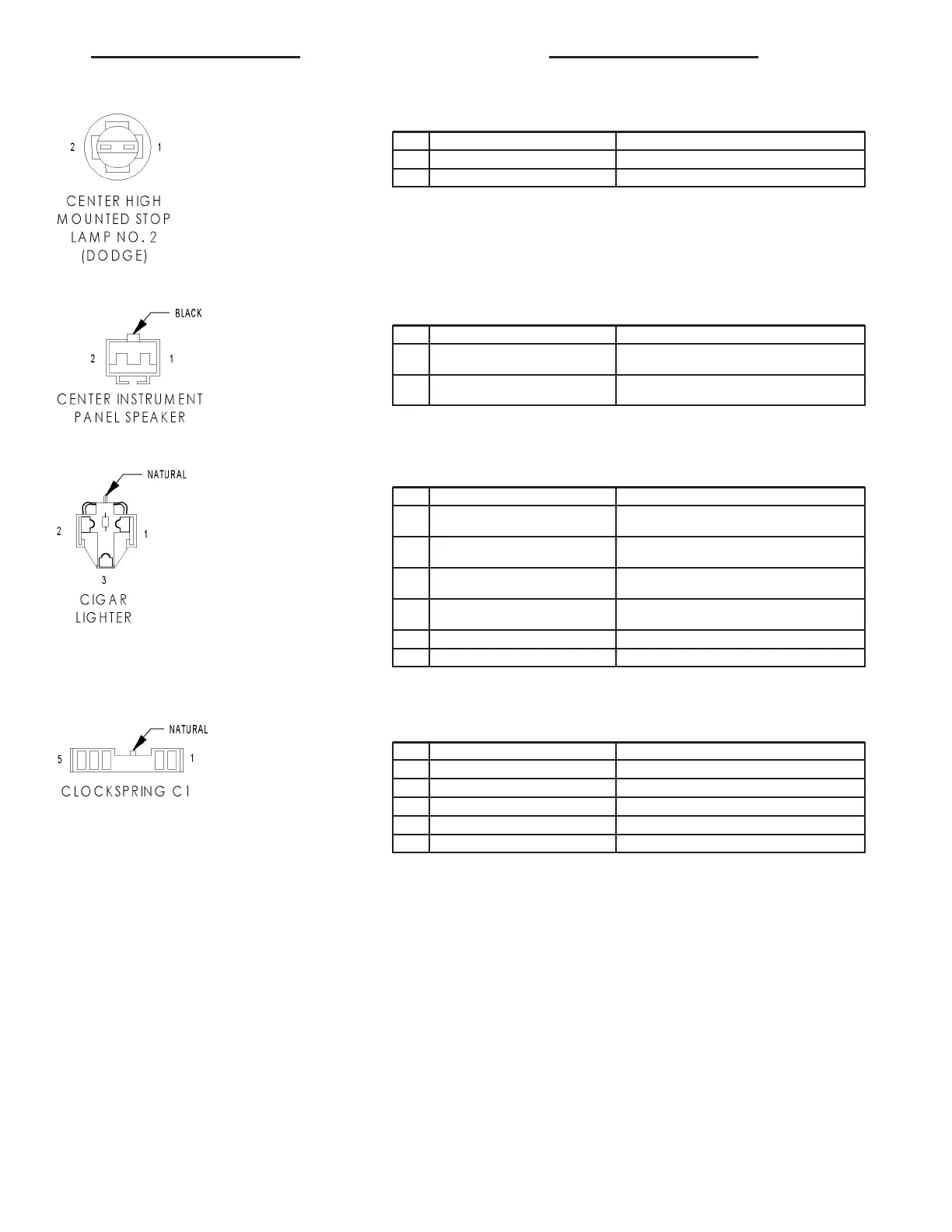

CENTER HIGH MOUNTED STOP LAMP NO. 2 (DODGE)-2WAY
CAV CIRCUIT FUNCTION
1 L50 16WT/TN BRAKE LAMP SWITCH OUTPUT
2 Z1 16BK GROUND
CENTER INSTRUMENT PANEL SPEAKER - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X89 18PK/BK AMPLIFIED CENTER INSTRUMENT PANEL SPEAKER
(-)
2 X88 18PK/RD AMPLIFIED CENTER INSTRUMENT PANEL SPEAKER
(+)
CIGAR LIGHTER - NATURAL 3 WAY
CAV CIRCUIT FUNCTION
1 F30 18PK(POLICE PACKAGE) (IGNITION
POSITION)
FUSED IGNITION SWITCH OUTPUT (RUN)
1 F30 18PK(POLICE PACKAGE))
(BATTERY POSITION)
FUSED B(+)
1 F30 18RD(EXCEPT POLICE PACKAGE)
(IGNITION POSITION)
FUSED IGNITION SWITCH OUTPUT (RUN)
1 F30 18RD(EXCEPT POLICE PACKAGE)
(BATTERY POSITION)
FUSED B(+)
2-
3 Z1 18BK GROUND
CLOCKSPRING C1 - NATURAL 5 WAY
CAV CIRCUIT FUNCTION
1 V37 20RD/LG SPEED CONTROL SWITCH SIGNAL
2 K4 20BK/LB SENSOR GROUND
3 X3 16BK/RD HORN RELAY CONTROL
4 X20 20GY/WT RADIO CONTROL MUX
5 X920 20GY/OR RADIO CONTROL MUX RETURN
LH 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 39
