Dodge Intrepid - Page 143

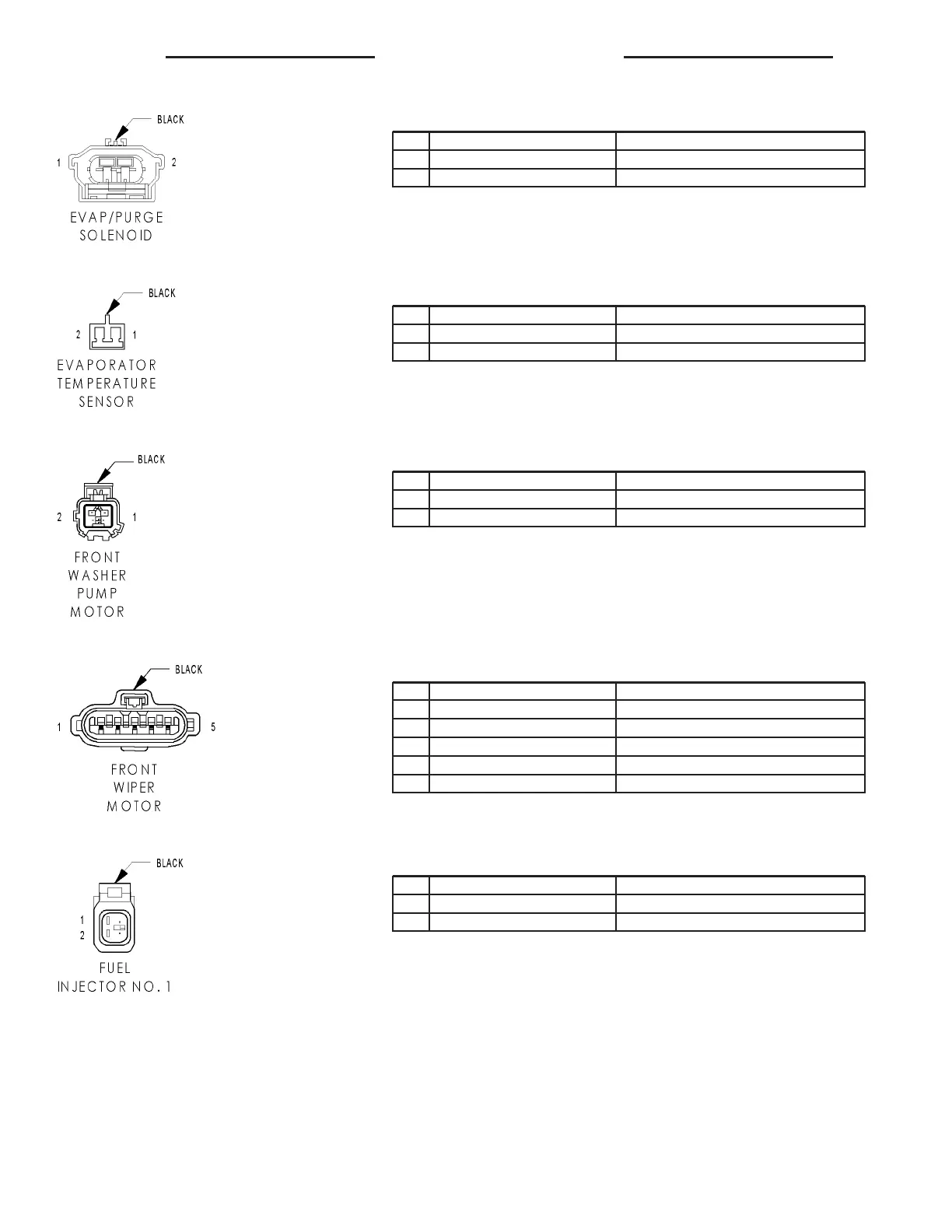

EVAP/PURGE SOLENOID - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K52 18PK/BK EVAPORATIVE EMISSION SOLENOID CONTROL
2 K108 18DG/LG EVAPORATIVE EMISSION SOLENOID SENSE
EVAPORATOR TEMPERATURE SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 C12 20LG/BK EVAPORATOR TEMPERATURE SENSOR SIGNAL
2 C57 20DB/GY SENSOR GROUND
FRONT WASHER PUMP MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z1 20BK GROUND
2 V10 20BR FRONT WASHER PUMP MOTOR CONTROL
FRONT WIPER MOTOR - BLACK 5 WAY
CAV CIRCUIT FUNCTION
1 V4 14RD/YL FRONT WIPER RELAY HIGH SPEED OUTPUT
2 V3 14BR/WT FRONT WIPER RELAY LOW SPEED OUTPUT
3- -
4 V55 20TN/RD FRONT WIPER PARK SWITCH SENSE
5 Z1 14BK GROUND
FUEL INJECTOR NO. 1 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K11 18WT/DB FUEL INJECTOR NO. 1 DRIVER
2 F42 18DG/LG FUSED AUTOMATIC SHUT DOWN RELAY OUTPUT
8W - 80 - 50 8W-80 CONNECTOR PIN-OUTS LH
