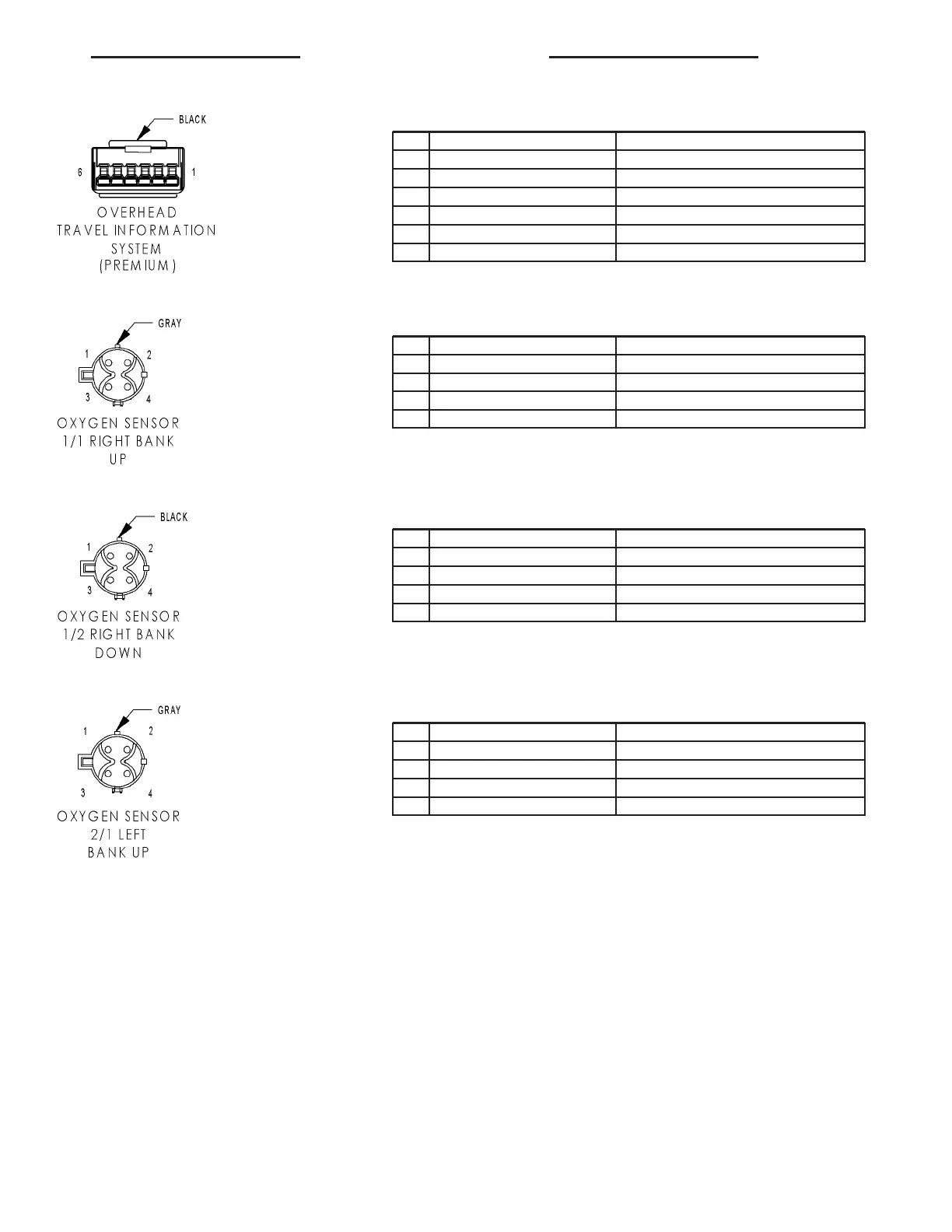

OVERHEAD TRAVEL INFORMATION SYSTEM (PREMIUM) - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1- -
2 G5 20DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
3 Z2 20BK/LG GROUND
4 M1 20PK FUSED B(+)
5 D25 20VT/YL PCI BUS
6- -
OXYGEN SENSOR 1/1 RIGHT BANK UP - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 K99 18BR/OR OXYGEN SENSOR 1/1 HEATER CONTROL
3 K902 18BR/DG OXYGEN SENSOR RETURN (UP)
4 K41 20BK/DG OXYGEN SENSOR 1/1 SIGNAL
OXYGEN SENSOR 1/2 RIGHT BANK DOWN - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 K199 18BR/VT OXYGEN SENSOR 1/2 HEATER CONTROL
3 K904 18DB/DG OXYGEN SENSOR RETURN (DOWN)
4 K141 20TN/WT OXYGEN SENSOR 1/2 SIGNAL
OXYGEN SENSOR 2/1 LEFT BANK UP - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 K299 18BR/WT OXYGEN SENSOR 2/1 HEATER CONTROL
3 K902 18BR/DG OXYGEN SENSOR RETURN (UP)
4 K241 20LG/RD OXYGEN SENSOR 2/1 SIGNAL
LH 8W-80 CONNECTOR PIN-OUTS 8W - 80 - 73
