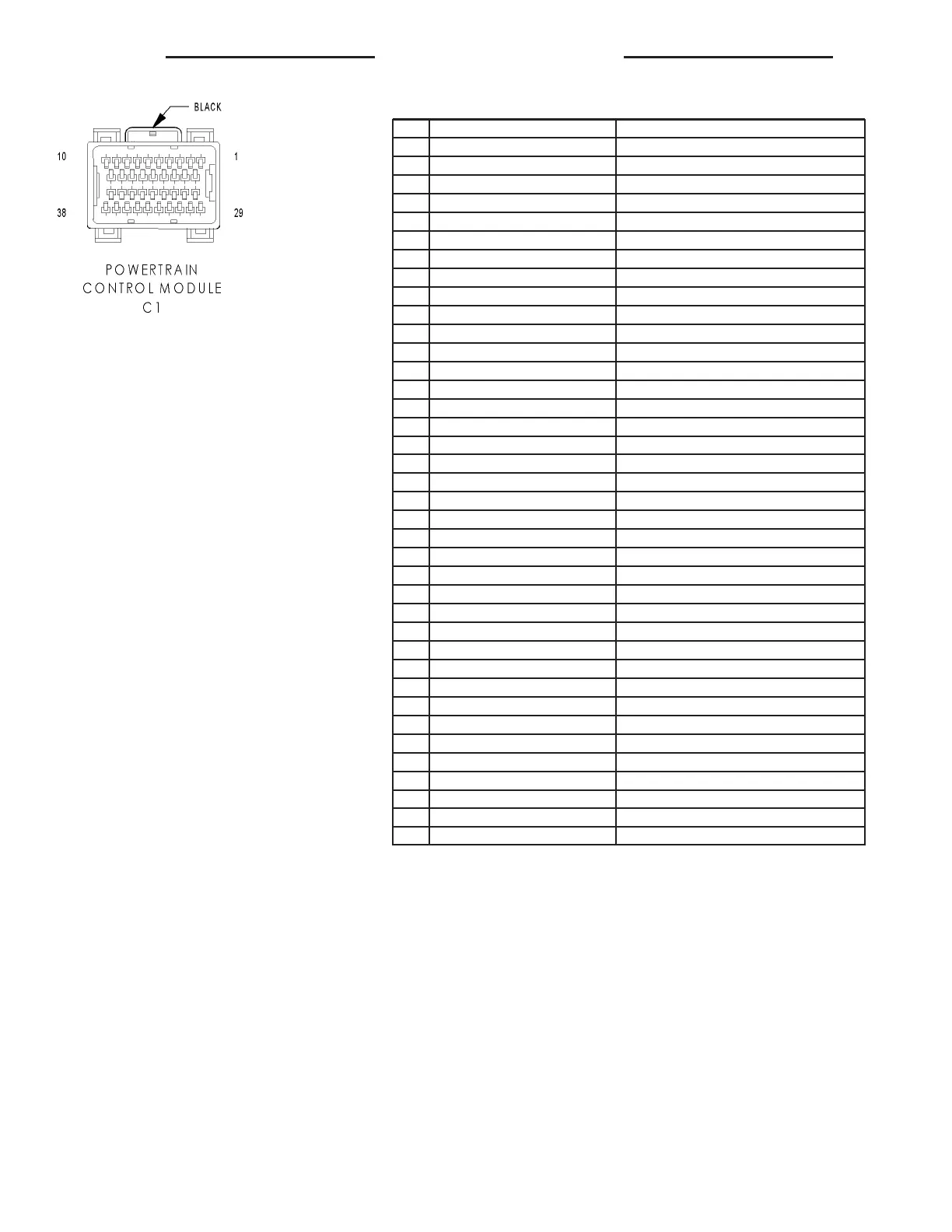

POWERTRAIN CONTROL MODULE C1 - BLACK 38 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4- -
5- -
6- -
7- -
8- -
9 Z12 16BK/TN GROUND
10 - -
11 F12 20DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
12 F11 20RD/WT FUSED IGNITION SWITCH OUTPUT (OFF-RUN-START)
13 - -
14 - -
15 - -
16 K236 18GY/PK (3.5L HIGH OUTPUT) SHORT RUNNER VALVE SOLENOID CONTROL
17 - -
18 Z12 16BK/TN GROUND
19 - -
20 - -
21 C18 20DB A/C PRESSURE SIGNAL
22 - -
23 - -
24 - -
25 D20 20LG SCI RECEIVE (PCM)
26 D19 20VT/OR SCI RECEIVE (TCM)
27 - -
28 - -
29 A209 20RD FUSED B(+)
30 T751 20YL/BK FUSED IGNITION SWITCH OUTPUT (START)
31 K141 20TN/WT OXYGEN SENSOR 1/2 SIGNAL
32 K904 18DB/DG OXYGEN SENSOR RETURN (DOWN)
33 K341 20PK/WT OXYGEN SENSOR 2/2 SIGNAL
34 - -
35 - -
36 D21 20PK/TN SCI TRANSMIT (PCM)
37 D15 20WT/DG SCI TRANSMIT (TCM)
38 D25 18VT/YL PCI BUS (PCM)
8W - 80 - 80 8W-80 CONNECTOR PIN-OUTS LH
