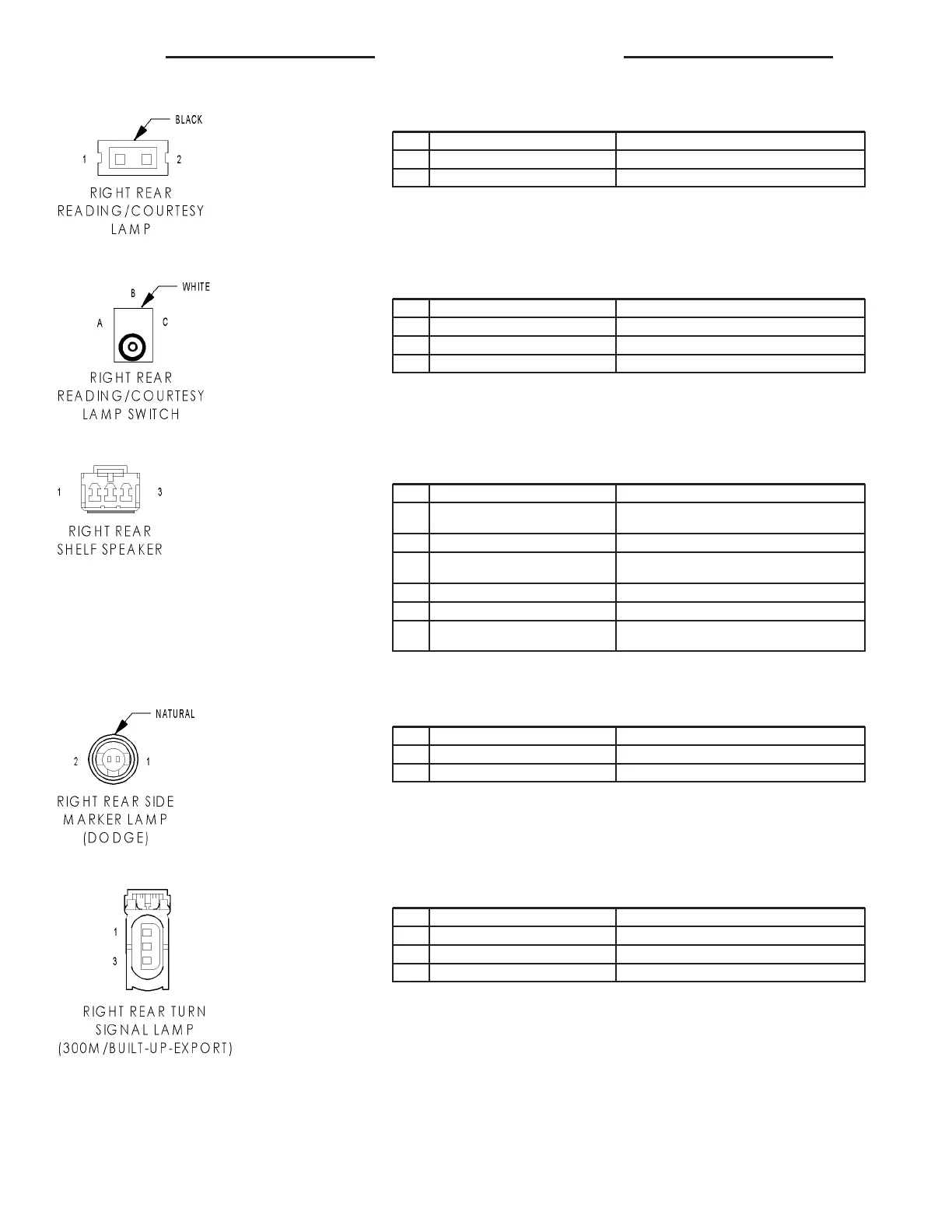

RIGHT REAR READING/COURTESY LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 M1 20PK FUSED B(+)
2 M42 20LG (EXCEPT BASE) COURTESY LAMPS DRIVER
RIGHT REAR READING/COURTESY LAMP SWITCH - WHITE 3 WAY
CAV CIRCUIT FUNCTION
A Z1 20BK COURTESY LAMPS DRIVER
B M42 20LG COURTESY LAMPS DRIVER
C M2 20YL GROUND
RIGHT REAR SHELF SPEAKER-3WAY
CAV CIRCUIT FUNCTION
1 X92 18TN/BK (MIDLINE AND PREMIUM
AUDIO)
AMPLIFIED HIGH RIGHT REAR SPEAKER (-)
1 X58 18DB/OR (BASE) RIGHT REAR SPEAKER (-)
2 X94 18TN/RD (MIDLINE AND PREMIUM
AUDIO EARLY BUILD)
AMPLIFIED HIGH RIGHT REAR SPEAKER (+)
2 X52 18DB/WT (BASE EARLY BUILD) RIGHT REAR SPEAKER (+)
3 X52 18DB/WT (BASE NORMAL BUILD) RIGHT REAR SPEAKER (+)
3 X94 18TN/RD (MIDLINE AND PREMIUM
AUDIO NORMAL BUILD)
AMPLIFIED HIGH RIGHT REAR SPEAKER (+)
RIGHT REAR SIDE MARKER LAMP (DODGE) - NATURAL 2 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 L7 18BK/YL PARK LAMP RELAY OUTPUT
RIGHT REAR TURN SIGNAL LAMP (300M/BUILT-UP-EXPORT)-3WAY
CAV CIRCUIT FUNCTION
1 L60 18LG/TN RIGHT TURN SIGNAL
2- -
3 Z1 18BK GROUND
8W - 80 - 92 8W-80 CONNECTOR PIN-OUTS LH
