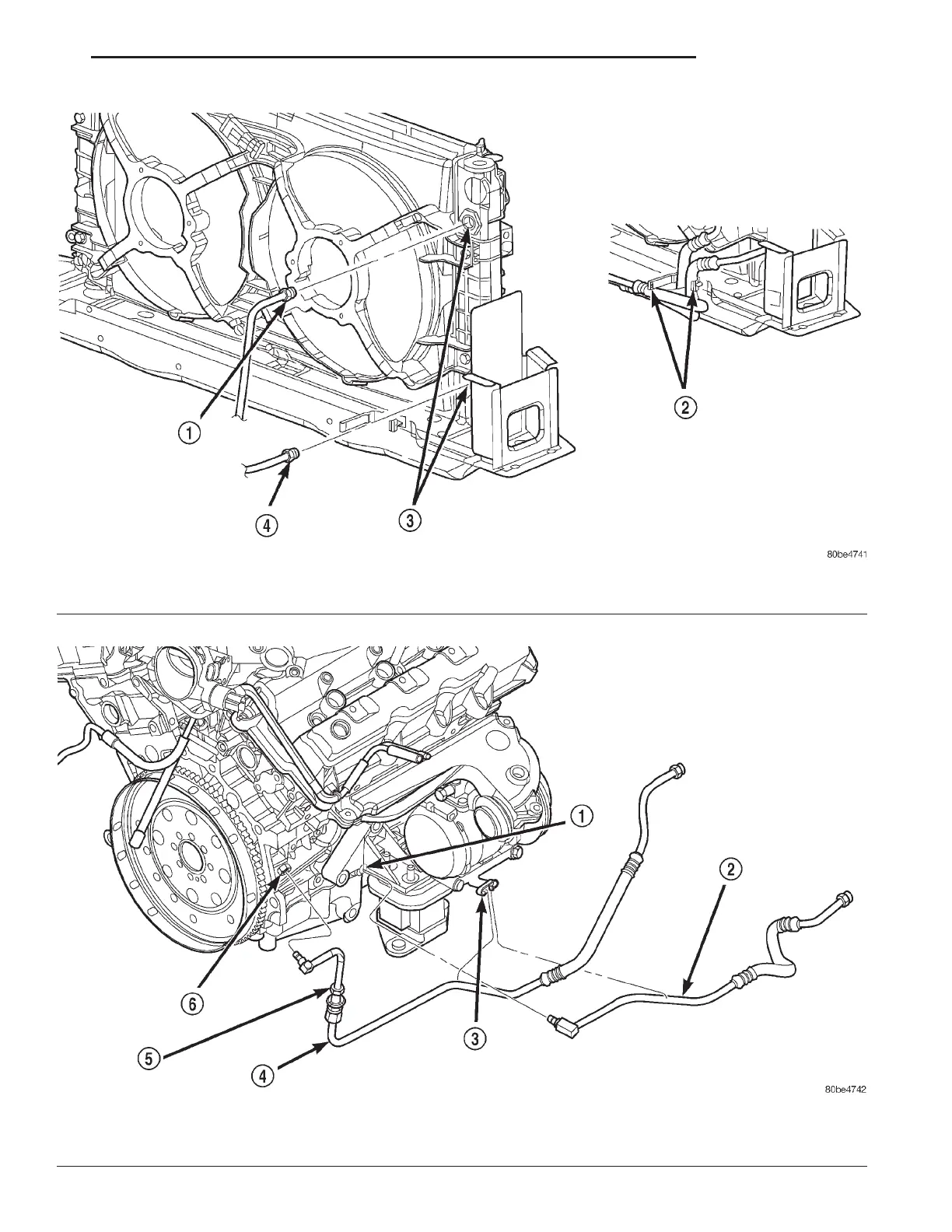

Fig. 88 ENGINE OIL COOLER - 2.7L
1 - ENGINE OIL COOLER SUPPLY LINE 3 - ENGINE OIL COOLER FITTINGS
2 - RETAINER 4 - ENGINE OIL COOLER RETURN LINE
Fig. 89 Engine Oil Cooler Lines—2.7L
1 - RETURN LINE FITTING 4 - OIL COOLER SUPPLY LINE
2 - OIL COOLER RETURN LINE 5 - PRESSURE CONTROL VALVE
3 - SUPPORT BRACKET 6 - SUPPLY LINE FITTING
LH ENGINE 2.7L 9 - 65
OIL COOLER & LINES (Continued)
