(2) Remove wire terminal retaining clip from con-
nector (Fig. 2). Note the location of terminals for the
level sensor wires (Fig. 3).
(3) Using special tool 7812 or an equivalent, push
level sensor signal and ground terminals out of the
connector (Fig. 4).
(4) Insert a screwdriver between the fuel pump
module and the top of the level sensor housing (Fig.
5). Push level sensor down slightly.
(5) Slide level sensor wires through standpipe
inside fuel pump module (Fig. 6).
(6) Slide level sensor out of installation channel
(Fig. 5).

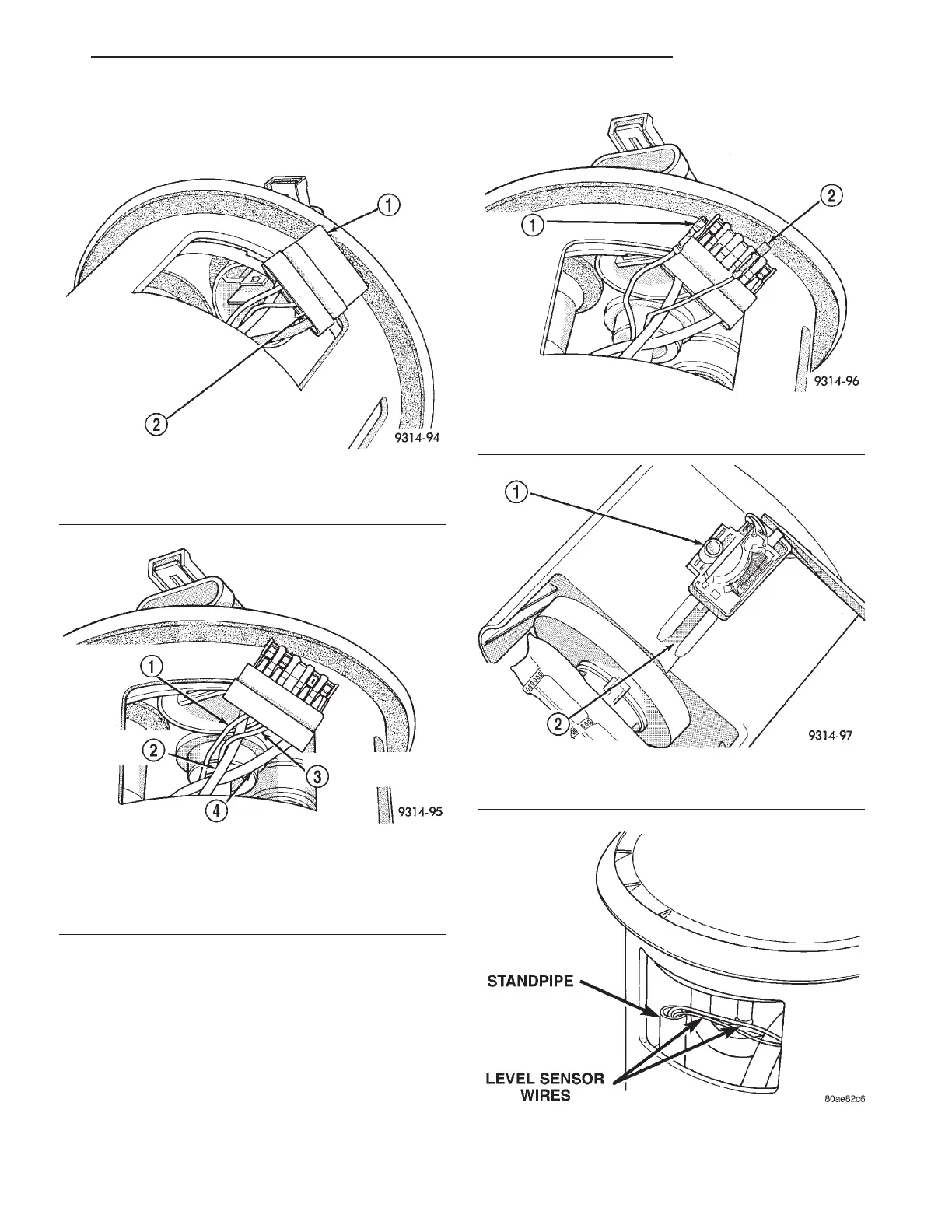

Fig. 2 Wire Terminal Retaining Clip
1 - WIRE TERMINAL RETAINING CLIP
2 - FUEL PUMP/LEVEL SENSOR CONNECTOR
Fig. 3 Wire Terminal Identification
1 - LEVEL SENSOR GROUND
2 - FUEL PUMP –
3 - LEVEL SENSOR SIGNAL
4 - FUEL PUMP +
Fig. 4 Level Sensor Signal
1 - LEVEL SENSOR GROUND
2 - LEVEL SENSOR SIGNAL
Fig. 5 Fuel Level Sensor Removal
1 - LEVEL SENSOR
2 - INSTALLATION CHANNEL
Fig. 6 Standpipe Inside of Module
LH FUEL DELIVERY 14 - 5
FUEL LEVEL SENDING UNIT / SENSOR (Continued)
