(4) Disconnect fuel pump electrical connector (Fig.
17).
(5) Raise vehicle and support.
NOTE: To drain fuel tank it is best to have less than
1/2 a tank of fuel.
(6) To drain fuel tank, place container under fuel
filler tube at fuel tank. Loosen and remove fuel filler
tube from fuel tank (Fig. 18). Stick siphon hose into
tank at fuel filler tube connection, and drain fuel
tank.
(7) Loosen the rear stabilizer bar brackets from
body. Swing stabilizer bar toward rear of vehicle (Fig.
19) and (Fig. 20).

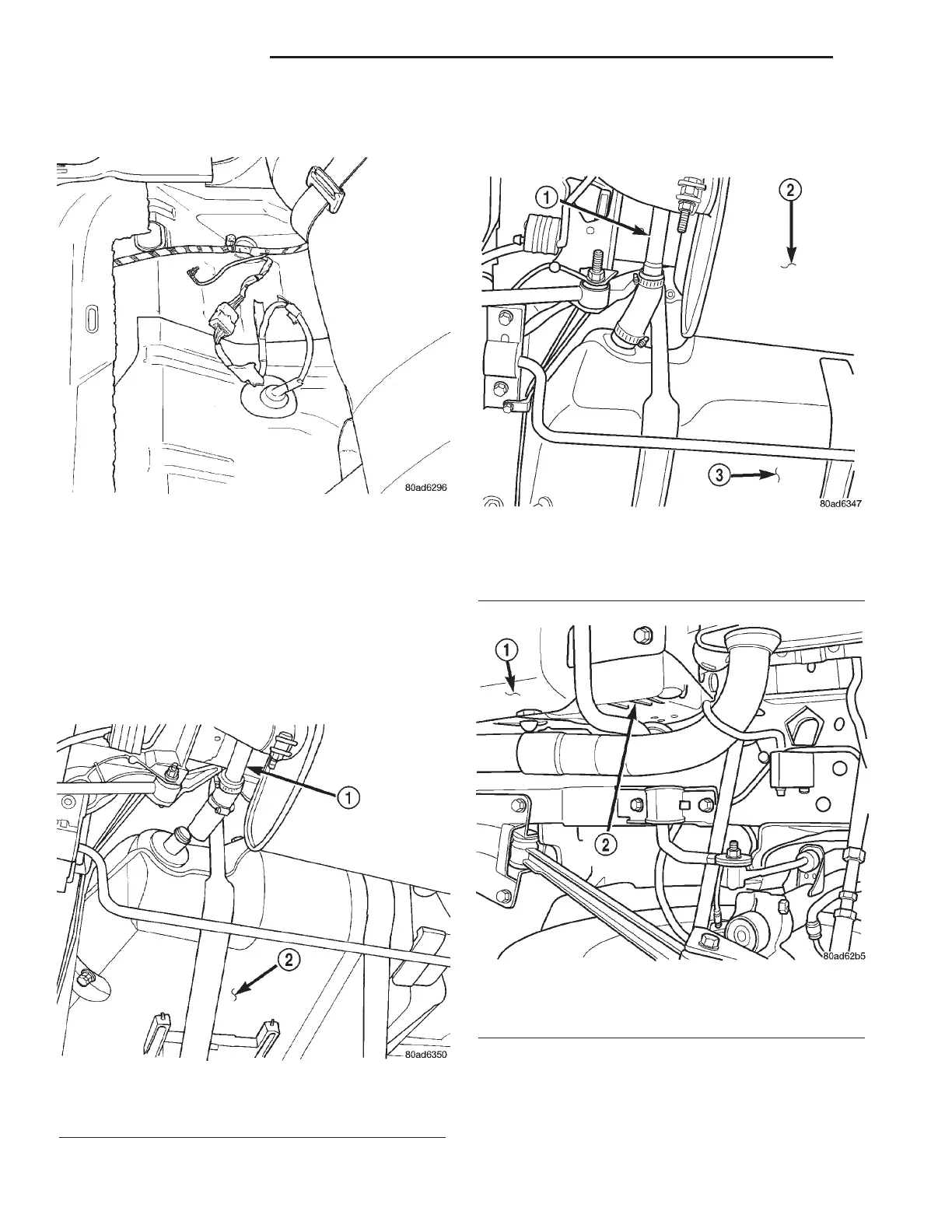

Fig. 17 Electrical Connector
Fig. 18 Fuel Filler Tube
1 - FUEL FILLER TUBE
2 - FUEL TANK
Fig. 19 Stabilizer Bar
1 - FILLER TUBE
2 - MUFFLER
3 - FUEL TANK
Fig. 20 Stabilizer Bar and EVAP Canister
1 - FUEL TANK
2 - EVAP CANISTER
14 - 12 FUEL DELIVERY LH
FUEL TANK (Continued)
