(5) Install cable from the new ignition interlock
cassette onto the interlock lever of the shift lever
assembly (Fig. 46).
(6) With the shift lever assembly in the PARK
position and ignition key extracted from ignition
switch, install the new interlock cassette into steer-
ing column. Be sure interlock cassette locking tab is
securely latched.
(7) Adjust the ignition interlock system by pushing
in on the adjustment tab until it stops (Fig. 50). The
adjustment tab will click as it moves into position.
Ensure the tab fully depressed.
(8) Install upper and lower shroud on steering col-
umn assembly (Fig. 43).
(9) Install tilt lever (Fig. 43).
(10) Install the lower instrument panel cover.
(11) Install the 2 screws behind the fuse panel
cover attaching the lower instrument panel cover to
the instrument panel (Fig. 42).
(12) Install the fuse panel cover on the left end of
the instrument panel (Fig. 41).

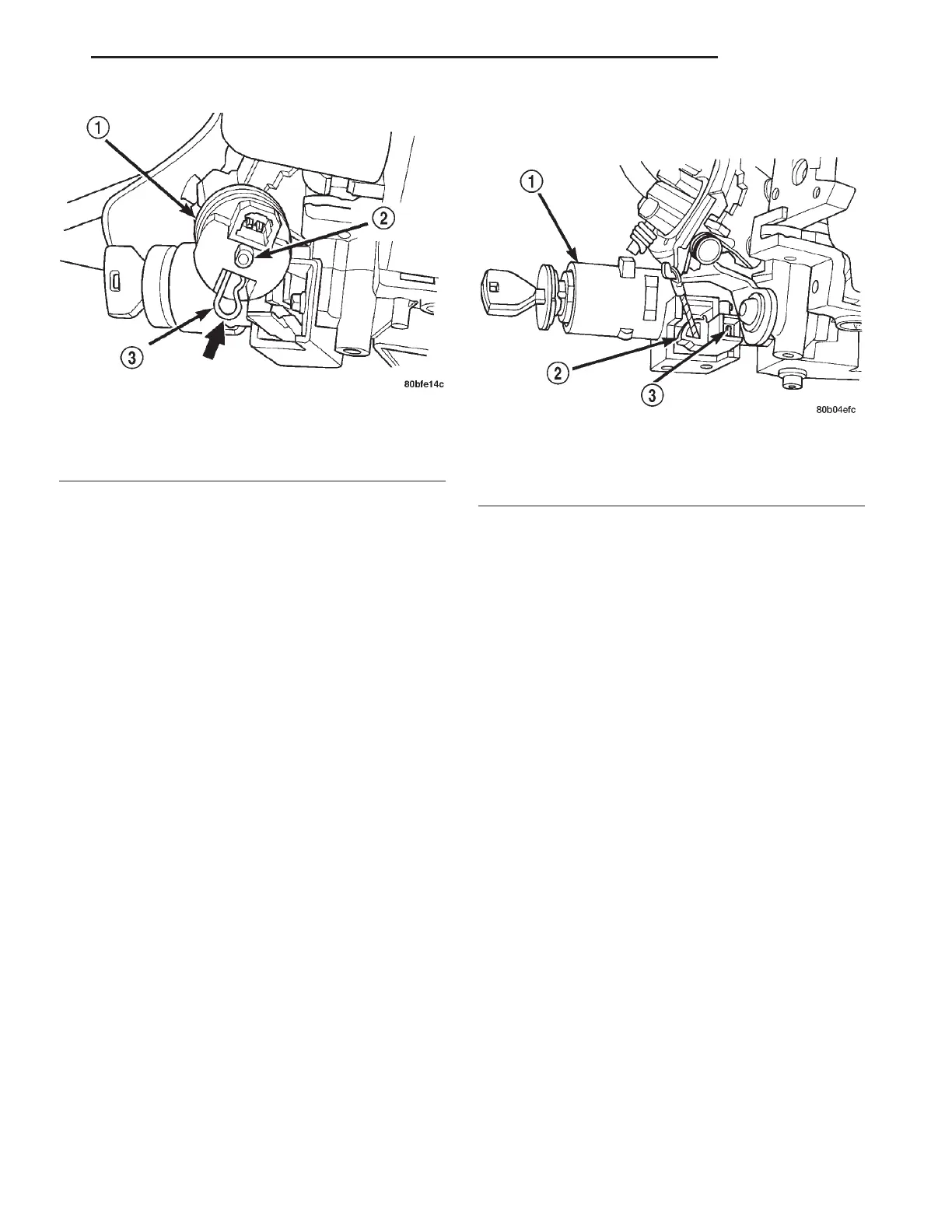

Fig. 49 Solenoid Retainer Clip Installation
1 - SOLENOID
2 - MOUNTING STUD
3 - RETAINER CLIP
Fig. 50 Ignition Interlock Adjustment Tab
1 - LOCK CYLINDER HOUSING
2 - INTERLOCK CASSETTE
3 - ADJUSTMENT TAB
LH COLUMN 19 - 29
STEERING COLUMN GEAR SHIFT LEVER (Continued)
