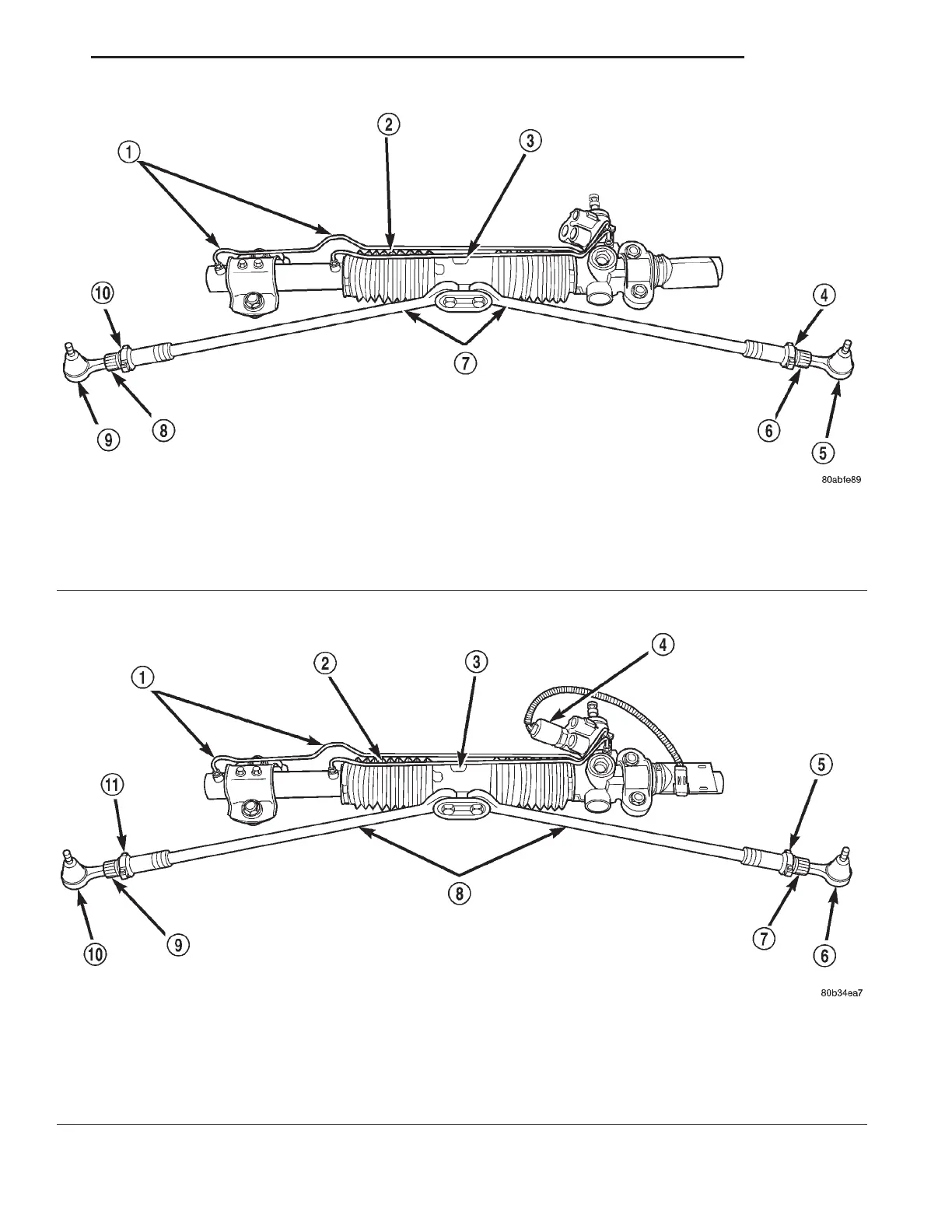

Fig. 1 Power Steering Gear

1 - STEERING GEAR FLUID LINES

2 - STEERING GEAR BOOT

3 - RACK AND PINION STEERING GEAR

4 - CLAMP

5 - TIE ROD END

6 - ADJUSTMENT SLEEVE

7 - INNER TIE ROD

8 - ADJUSTMENT SLEEVE

9 - TIE ROD END

10 - CLAMP

Fig. 2 Variable-Assist Speed-Proportional Power Steering Gear

1 - STEERING GEAR FLUID LINES

2 - STEERING GEAR BOOT

3 - RACK AND PINION STEERING GEAR

4 - SOLENOID CONTROL VALVE

5 - CLAMP

6 - TIE ROD END

7 - ADJUSTMENT SLEEVE

8 - INNER TIE ROD

9 - ADJUSTMENT SLEEVE

10 - TIE ROD END

11 - CLAMP

LH GEAR 19 - 31

GEAR (Continued)
