(4) Rotate fill tube to original location. Install and
tighten fill tube bracket bolt.
(5) Install cable “push pin” into bracket as shown
in (Fig. 254) .
(6) Route transaxle shift cable through hole in
dash panel (Fig. 255) (Fig. 257) .
(7) Lubricate cable grommet with a synthetic
lubricant (or equivalent) and secure to hole. Verify
that it is seated by gently pulling outward on cable.
(8) Install cable into throttle/gearshift cable
bracket (Fig. 254) .
(9) Inside the vehicle, route the gearshift cable
between the left a/c duct and the left lower heat duct
(Fig. 257) and towards the gearshift mechanism.

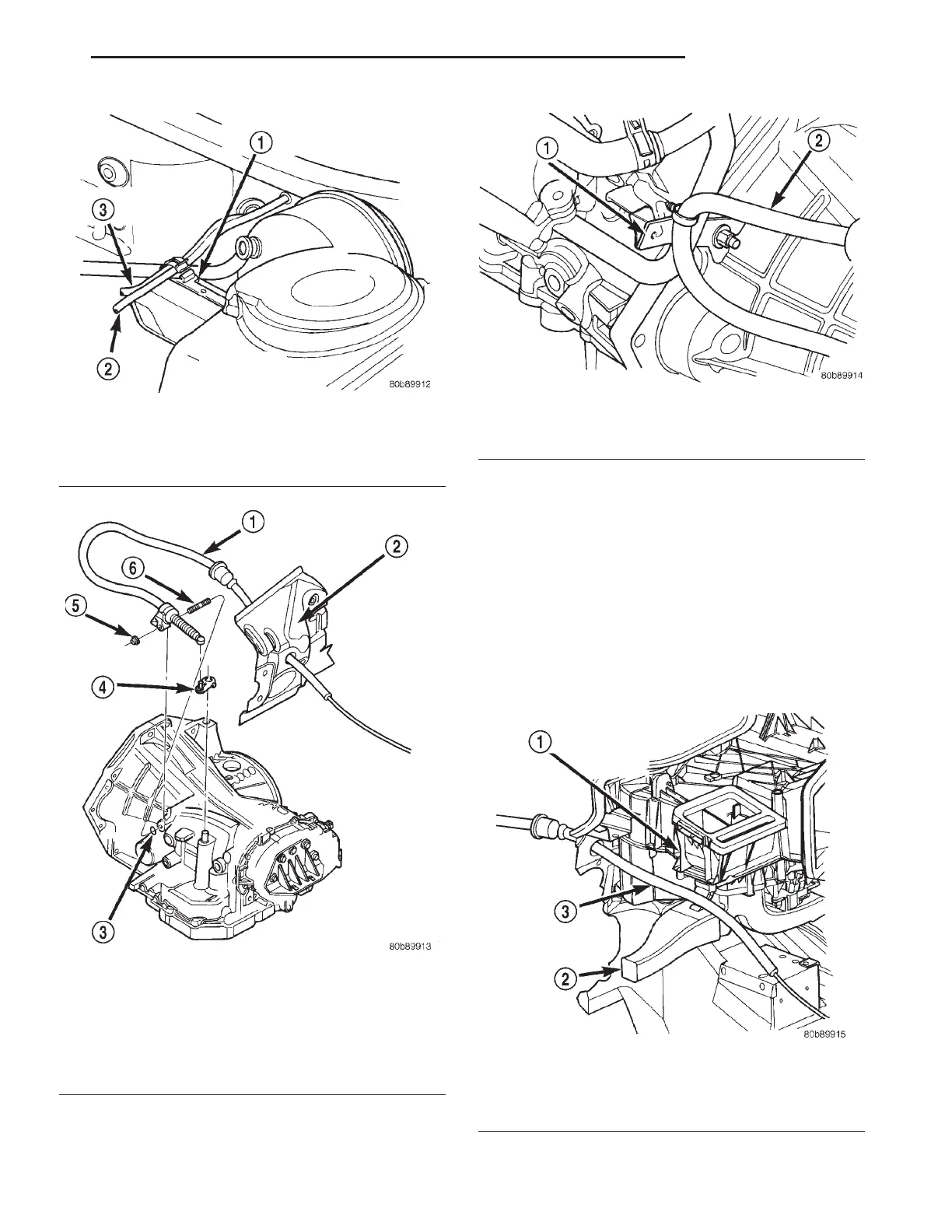

Fig. 254 Throttle/Gearshift Cable Bracket
1 - CABLE BRACKET
2 - GEARSHIFT CABLE
3 - THROTTLE CABLE
Fig. 255 Gearshift Cable Removal
1 - CABLE
2 - FIREWALL
3 - WASHER
4 - SHIFT LEVER
5 - NUT
6 - STUD
Fig. 256 Cable Routing Bracket—(3.2
1 - BRACKET
2 - CABLE
Fig. 257 Shift Cable Routing
1 - LH A/C DUCT OUTLET
2 - LH LOWER HEAT DUCT
3 - GEARSHIFT CABLE
LH TRANSAXLE 21 - 105
GEAR SHIFT CABLE - FLOOR (Continued)
