(22) Install OD reaction plate waved snap ring
(Fig. 310).
(23) Install the OD/Reverse reaction plate with
large step down (towards OD clutch pack) (Fig. 311).
(24) Install OD reaction plate flat snap ring (Fig.
312).
(25) Measure OD clutch pack clearance. Set up
dial indicator on top of the OD/Reverse reaction plate
as shown in (Fig. 313).

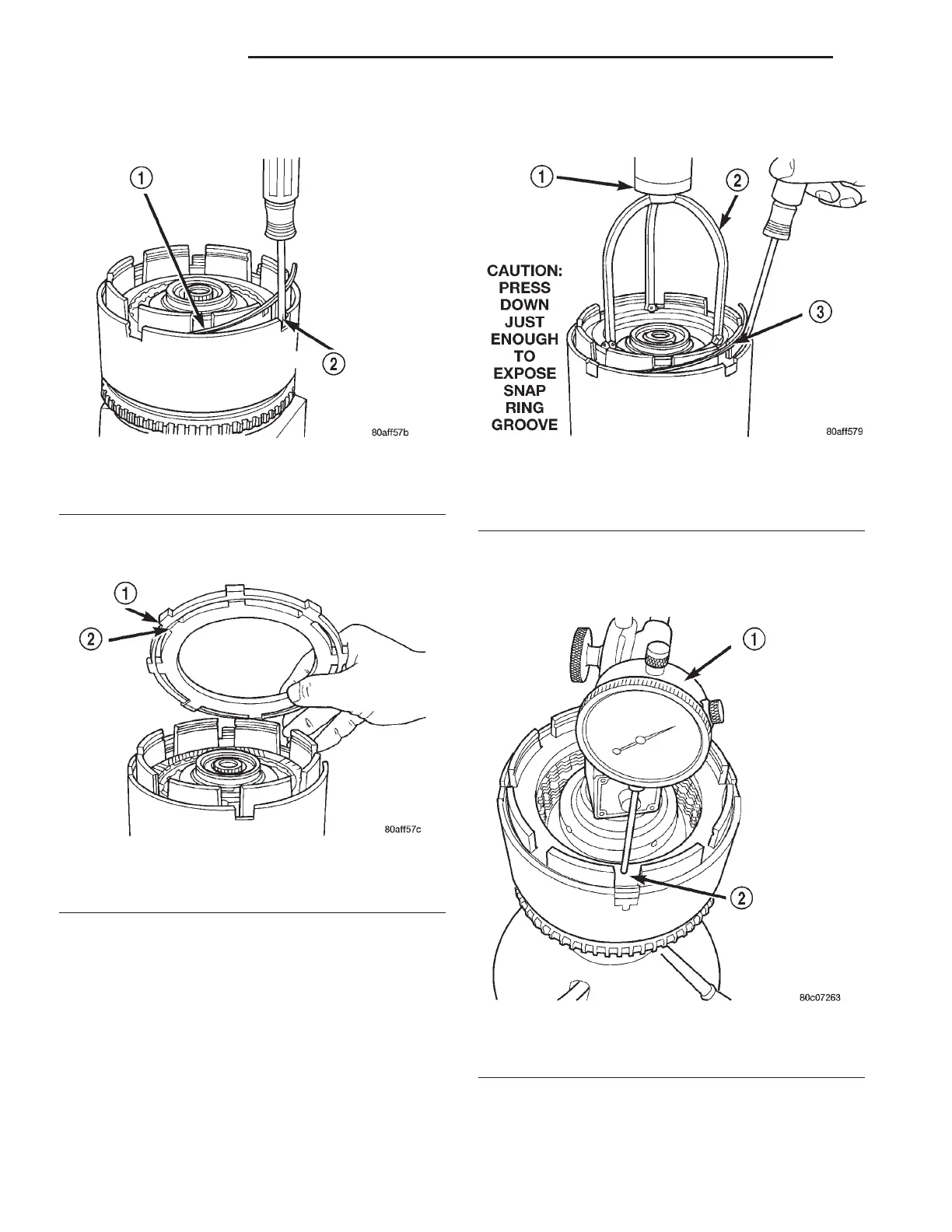

Fig. 310 Install Waved Snap Ring
1 - OVERDRIVE REACTION PLATE WAVED SNAP RING
2 - SCREWDRIVER
Fig. 311 OD/Reverse Reaction Plate
1 - OVERDRIVE/REVERSE PRESSURE PLATE
2 - (STEP SIDE DOWN)
Fig. 312 Install Flat Snap Ring
1 - ARBOR PRESS RAM
2 - TOOL 5059A
3 - FLAT SNAP RING
Fig. 313 Measure OD Clutch Pack Clearance
1 - DIAL INDICATOR
2 - OD/REVERSE PRESSURE PLATE
21 - 120 TRANSAXLE LH
INPUT CLUTCH ASSEMBLY (Continued)
