(7) Remove valve body bolts-to-case (Fig. 411).

(8) Carefully remove valve body assembly from

transaxle (Fig. 412). (Fig. 415)

CAUTION: The overdrive and underdrive accumula-

tors and springs may fall out when removing the

valve body (Fig. 413) (Fig. 414) (Fig. 415).

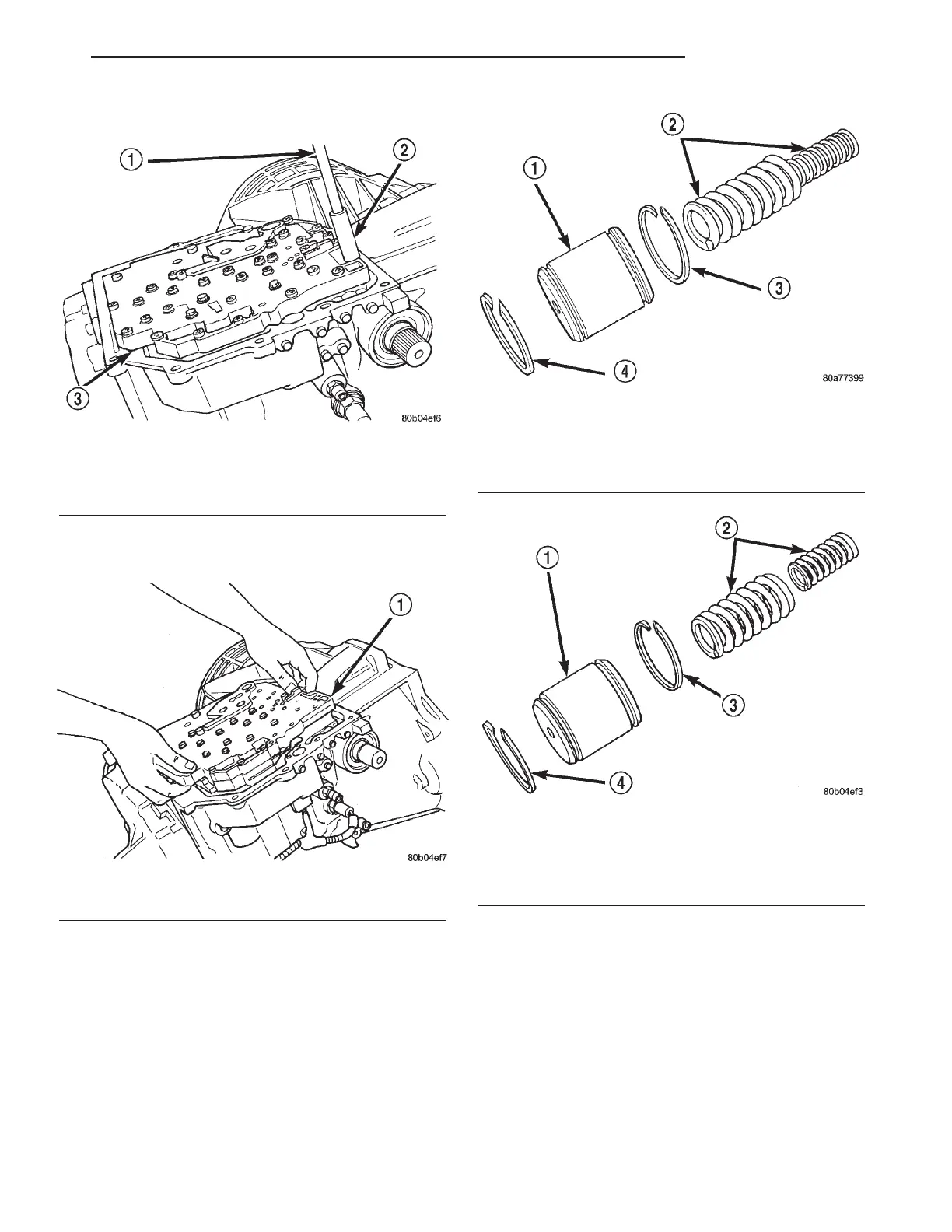

Fig. 411 Valve Body Bolts

1 - EXTENSION

2 - SOCKET

3 - VALVE BODY

Fig. 412 Valve Body From Transaxle

1 - VALVE BODY

Fig. 413 Accumulator Assembly—Typical

1 - ACCUMULATOR PISTON (UNDERDRIVE)

2 - RETURN SPRINGS

3 - SEAL RING

4 - SEAL RING

Fig. 414 Overdrive Accumulator and Springs

1 - OVERDRIVE ACCUMULATOR PISTON

2 - RETURN SPRINGS

3 - SEAL RING

4 - SEAL RING

LH TRANSAXLE 21 - 157

VALVE BODY (Continued)
