UNDER REAR SHELF
SILENCER
REMOVAL
(1) Remove fasteners attaching silencer to lower
shelf sheet metal (Fig. 26).
(2) Remove silencer from vehicle.
INSTALLATION
(1) Place silencer in position on vehicle (Fig. 26).
(2) Install fasteners attaching silencer to the lower
shelf sheet metal.
WHEELHOUSE SILENCER
REMOVAL
(1) Remove rear seat back (Refer to 23 - BODY/
SEATS/REAR SEAT BACK - REMOVAL).
(2) Remove lower quarter trim (Refer to 23 -
BODY/INTERIOR/LOWER QUARTER TRIM -
REMOVAL).
(3) Remove front trunk push pin and fold trunk
carpet down.
(4) Remove fasteners attaching silencer to wheel
house.
(5) Remove silencer from vehicle (Fig. 27).
INSTALLATION
(1) Place silencer into position on the wheel house
(Fig. 27).
(2) Install fasteners attaching silencer to wheel
house.
(3) Install lower quarter trim (Refer to 23 - BODY/
INTERIOR/LOWER QUARTER TRIM - INSTALLA-
TION).
(4) Install rear seat back (Refer to 23 - BODY/
SEATS/REAR SEAT BACK - INSTALLATION).

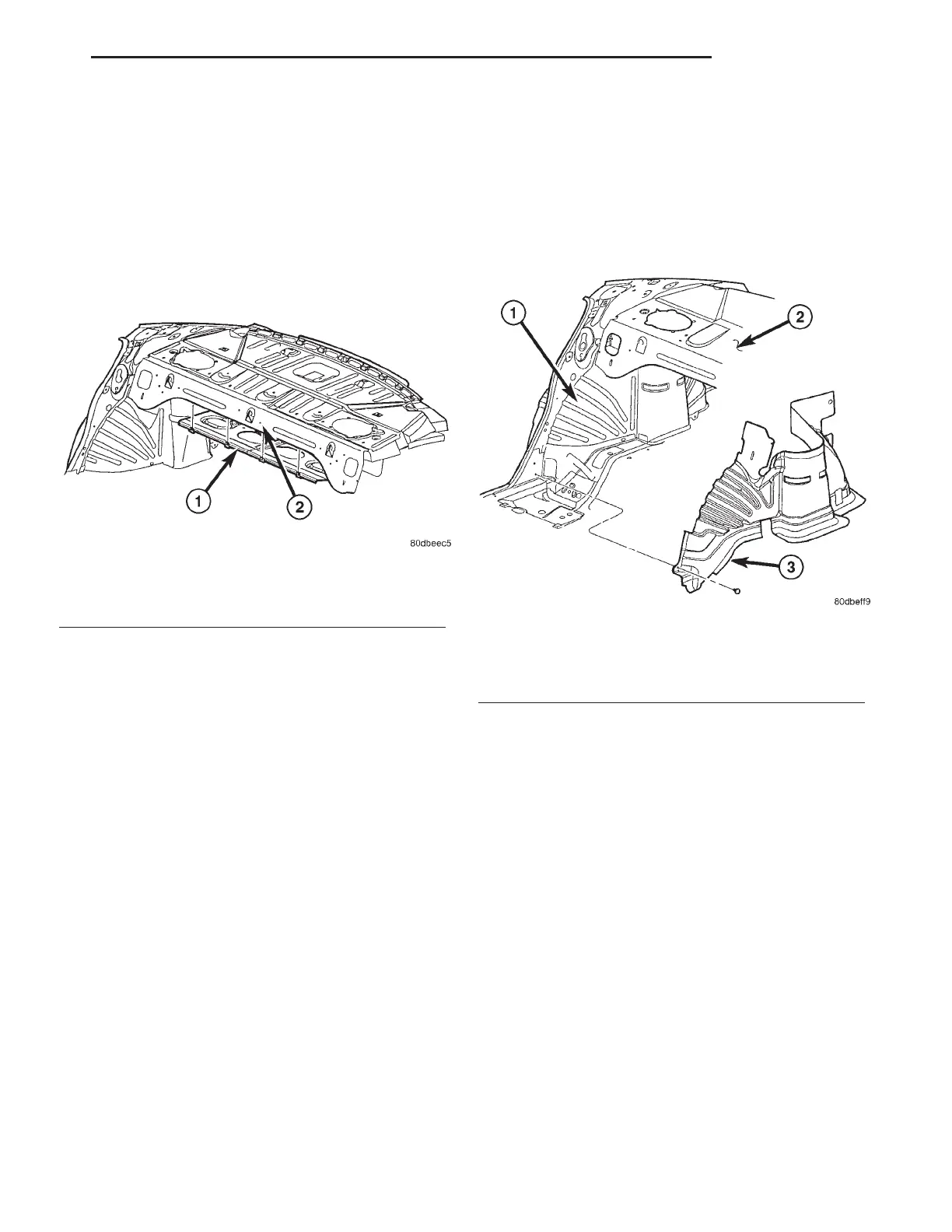

Fig. 26 UNDER REAR SHELF SILENCER
1 - UNDER SHELF SILENCER
2 - SHELF PANEL
Fig. 27 WHEELHOUSE SILENCER
1 - WHEEL HOUSE
2 - REAR SHELF PANEL
3 - WHEEL HOUSE SILENCER
LH INTERIOR 23 - 75
