(1) Position seat back on cushion.
(2) Connect electrical connectors to the seat back,
if equipped.
(3) Install inboard pivot bolt. Tighten bolts to 30
N·m (22 ft. lbs.) torque.
(4) Install bolts attaching recliner to seat back
frame. Tighten bolts to 8 N·m (71 in. lbs.) torque.
(5) Install front seat cushion side shields (Refer to
23 - BODY/SEATS/SEAT SIDE SHIELD - INSTAL-
LATION).
(6) Install front seat in vehicle (Refer to 23 -
BODY/SEATS/FRONT SEAT - INSTALLATION).
INSTALLATION - AIRBAG EQUIPPED
(1) Position the assembled seat back and feed wire
harness down into lower seat cushion (Fig. 13). Be
certain harness is routed along the leading edge of
seat frame.
(2) Install inboard and outboard pivot bolts.
Tighten bolt to 30 N·m (23 ft. lbs.) torque.
CAUTION: Do not reuse recliner assembly attaching
bolts. Due to the nylon coating on these bolts they
are not reusable.
(3) Install bolts attaching recliner to seat back
frame (Fig. 12). Tighten bolts to 8 N·m (71 in. lbs.)
torque.
(4) Connect airbag wire harness connector and
secure push pin. Be certain connector is securely con-
nected.
(5) Connect heated seat element connector and
secure push pin.
(6) Install seat cushion side shields. Refer to the
procedure in this group.
(7) Install seat in vehicle. Refer to the procedure
in this group.
(8) Connect the negative battery cable.
(9) Using the DRB III Scan Tool erase all DTC’s
and perform airbag system diagnostics.

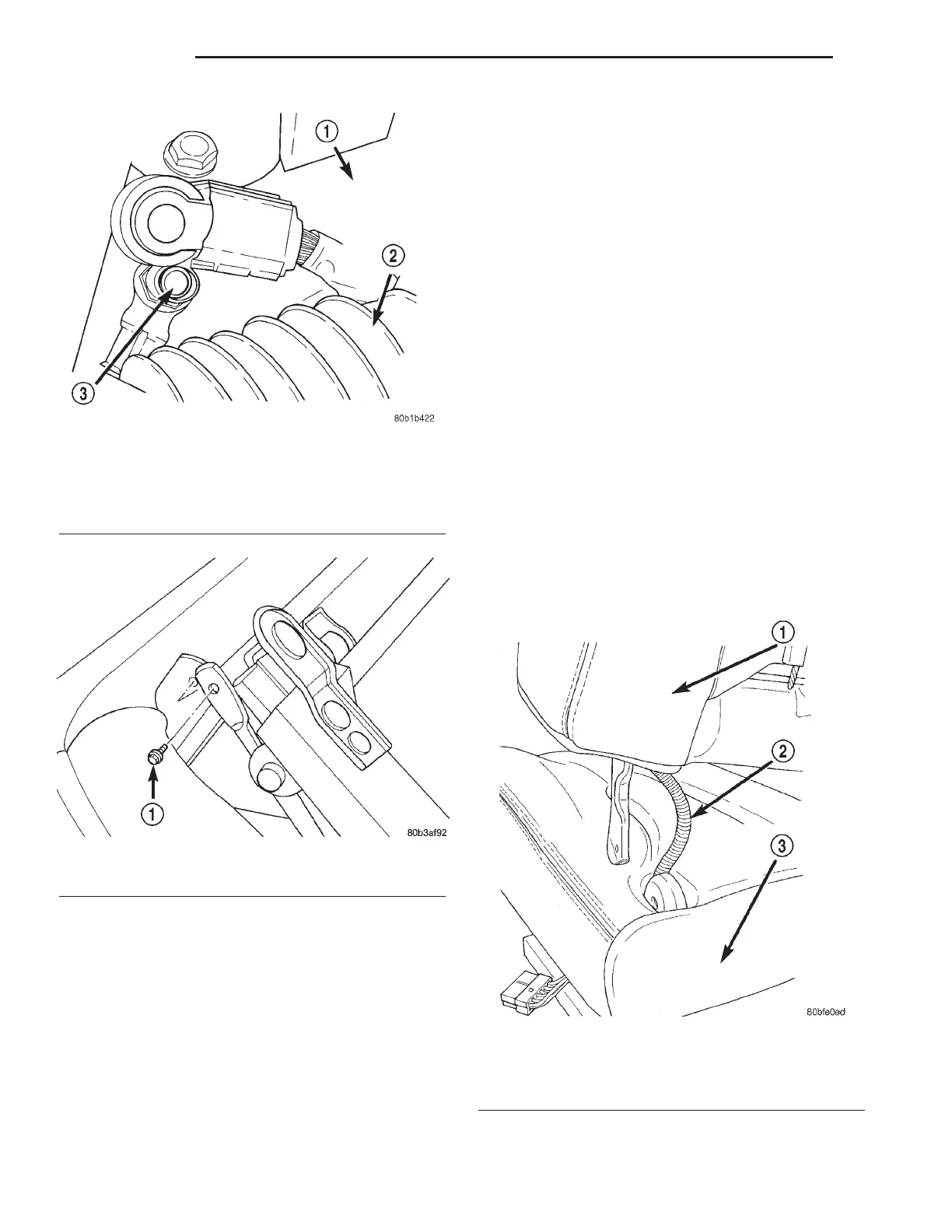

Fig. 11 NEGATIVE BATTERY CABLE REMOTE
TERMINAL
1 - RIGHT STRUT TOWER
2 - AIR CLEANER INLET TUBE
3 - REMOTE TERMINAL
Fig. 12 RECLINER ATTACHING BOLTS
1 - RECLINER BOLT
Fig. 13 SEAT BACK WIRE HARNESS
1 - FRONT SEAT BACK
2 - SEAT AIRBAG WIRE HARNESS
3 - FRONT SEAT CUSHION
23 - 84 SEATS LH
FRONT SEAT BACK (Continued)
