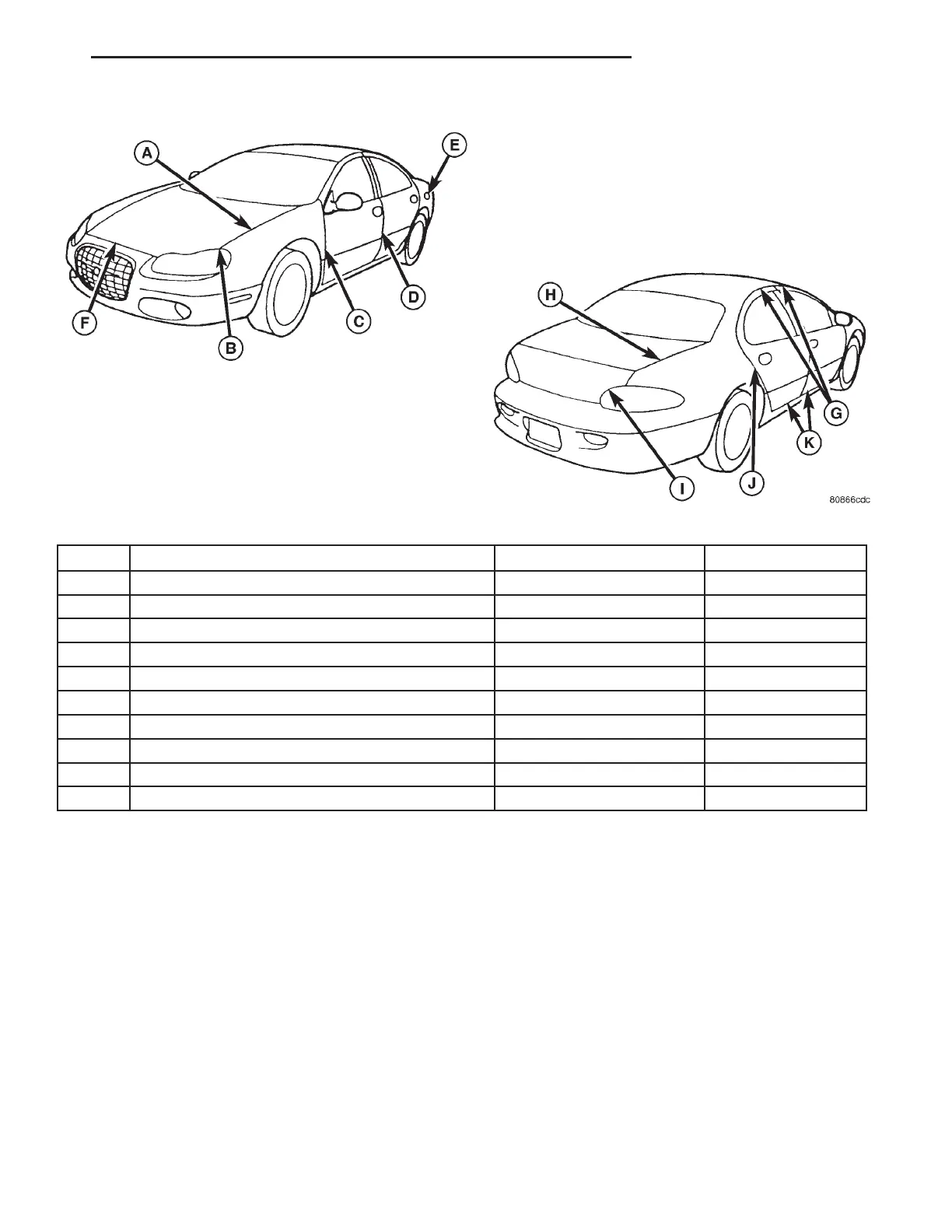

Fig. 2 BODY GAP AND FLUSH - CONCORDE AND 300M
LOCATION GAP FLUSH
A Hood to Fender 4.0 +/- 1.5 0 +/- 1.5
B Hood to Fender Fore and Aft 0 +/- 1.0 0 +/- 2.0
C Front Door to Fender 5.0 +/- 1.5 0 - 1.0
D Rear Door to Front Door 5.0 +/- 1.5 0 - 1.0
E Fuel Filler Door to Quarter 3.0 +/- 0.75 0 - 1.5
F Fascia to Hood 5.0 +/- 1.5 1.0 +/- 1.5
G Front and Rear Door to Roof 5.0 +/- 1.5 0 - 1.0
H Deck Lid to Quarter Panel 4.0 +/- 1.5 0 +/-1.0
I Taillamp to Applique and Deck Lid 5.0 +/- 1.5 NA
J Rear Door to Quarter Panel 5.0 +/- 1.5 0 - 1.0
LH BODY STRUCTURE 23 - 117
GAP AND FLUSH (Continued)
