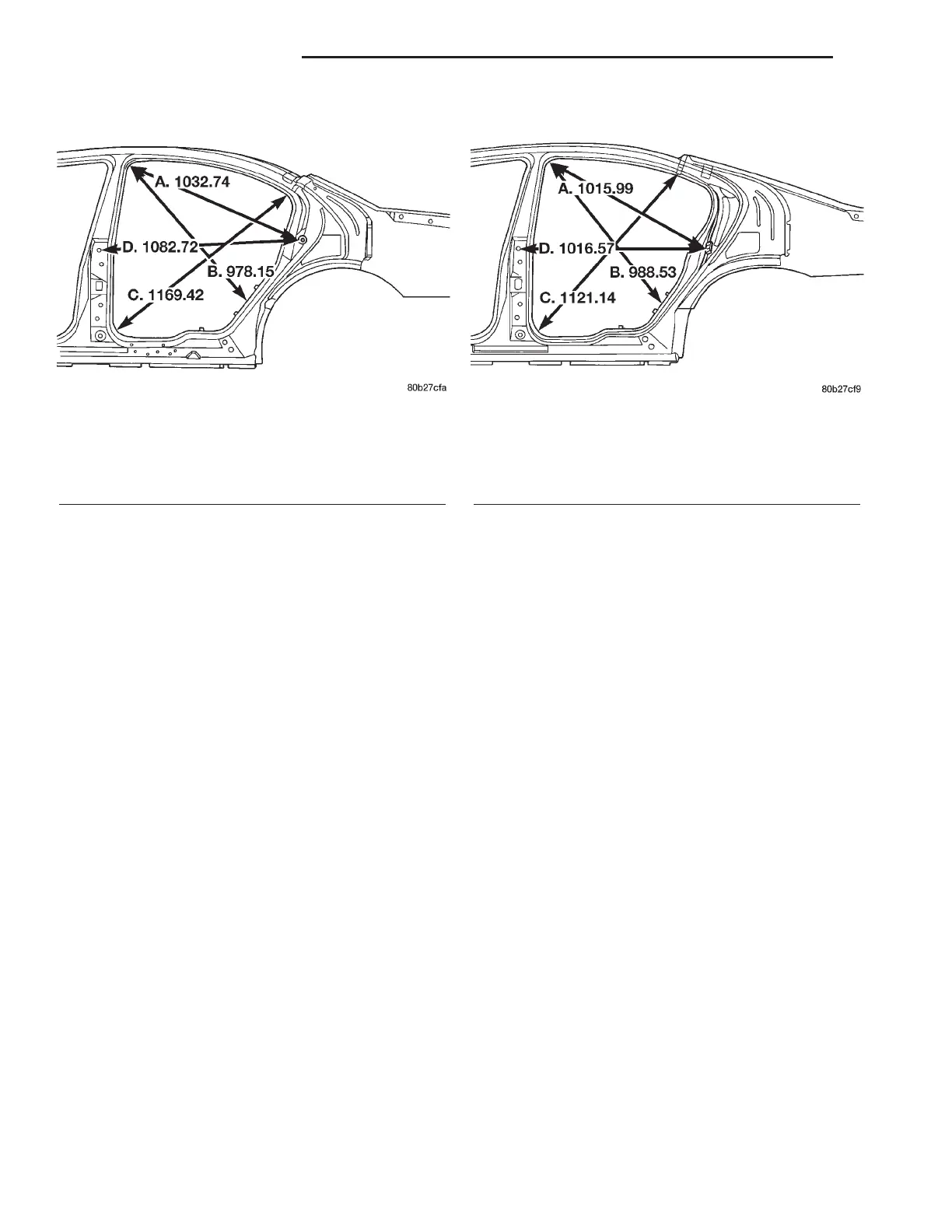

Fig. 5 REAR DOOR OPENINGS - INTREPID
A - Center of radius at top to door latch hole.
B - Center of radius at bottom to center of radius at top.
C - Center of radius at bottom to edge of quarter panel at C-pillar.
D - Upper rear door hinge rear bolt hole to door latch hole.
Fig. 4 REAR DOOR OPENINGS - CONCORDE/300M
A - Center of radius at top to door latch hole.
B - Center of radius at bottom to center of radius at top.
C - Center of radius at bottom to edge of quarter panel at C-pillar.
D - Upper rear door hinge rear bolt hole to door latch hole.
23 - 120 BODY STRUCTURE LH
OPENING DIMENSIONS (Continued)
