(8) Remove pulley retaining snap ring with Snap
Ring Pliers (C-4574), and slide pulley assembly off of
compressor (Fig. 3).
(9) Remove coil wire bracket/ground clip screw and
wire harness.
(10) Remove snap ring retaining field coil onto
compressor housing (Fig. 4). Slide field coil off of
compressor housing.

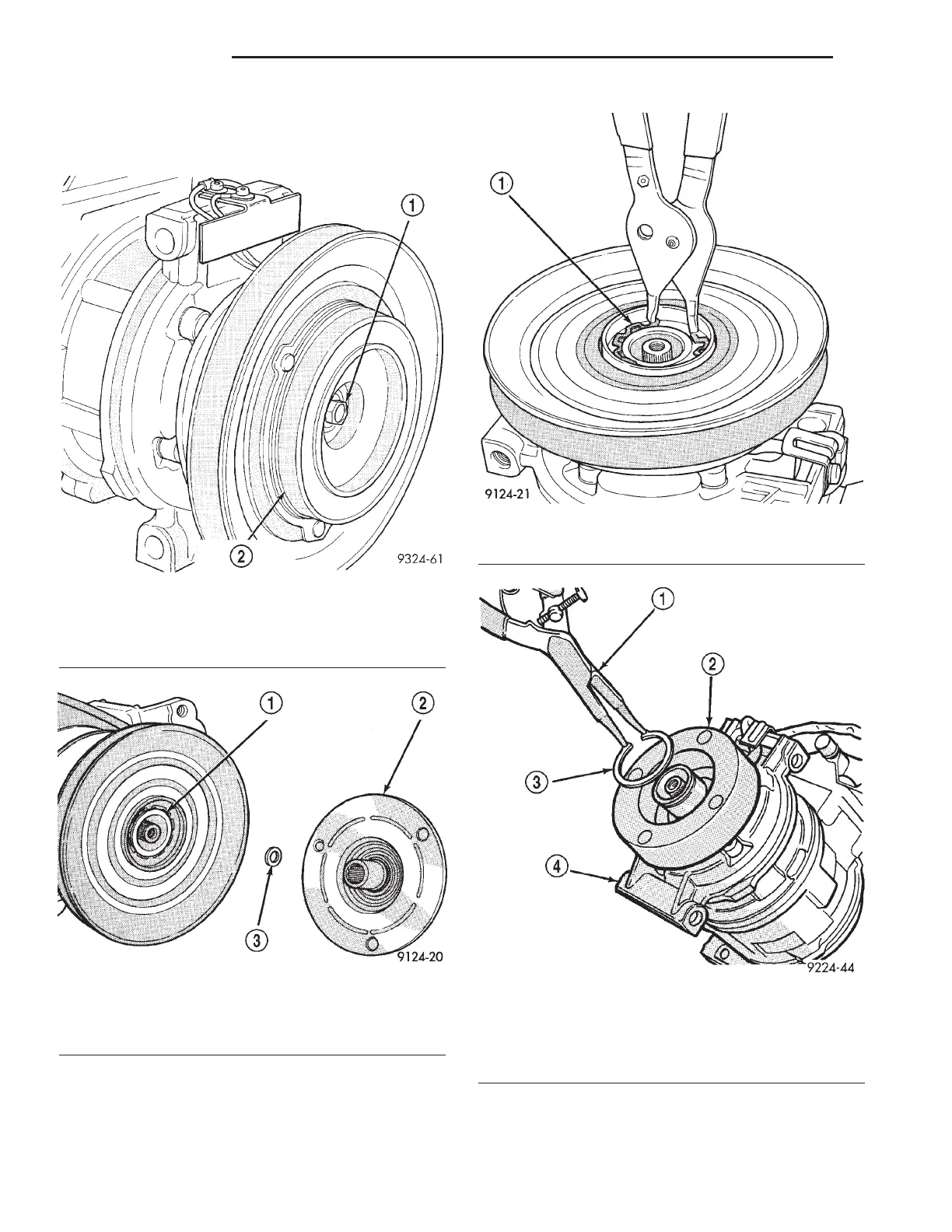

Fig. 1 COMPRESSOR SHAFT BOLT AND CLUTCH
PLATE
1 - COMPRESSOR SHAFT BOLT
2 - COMPRESSOR CLUTCH PLATE
Fig. 2 CLUTCH PLATE AND SHIM(S)
1 - COMPRESSOR SHAFT
2 - CLUTCH PLATE
3 - CLUTCH PLATE SHIM
Fig. 3 REMOVING PULLEY SNAP RING
1 - SNAP RING
Fig. 4 CLUTCH COIL SNAP RING
1 - SNAP RING PLIERS
2 - CLUTCH COIL
3 - SNAP RING
4 - COMPRESSOR
24 - 10 CONTROLS LH
A/C COMPRESSOR CLUTCH (Continued)
