INSTALLATION
NOTE: When assembling the new valve core into
the fitting, the core should be oiled with clean ND8
PAG compressor oil.
(1) Install the new valve core into the fitting.
(2) Evacuate the refrigerant system. (Refer to 24 -
HEATING & AIR CONDITIONING/PLUMBING -
STANDARD PROCEDURE - REFRIGERANT SYS-
TEM EVACUATE)
(3) Charge the refrigerant system. (Refer to 24 -
HEATING & AIR CONDITIONING/PLUMBING -
STANDARD PROCEDURE - REFRIGERANT SYS-
TEM CHARGE)
(4) Install the valve caps.

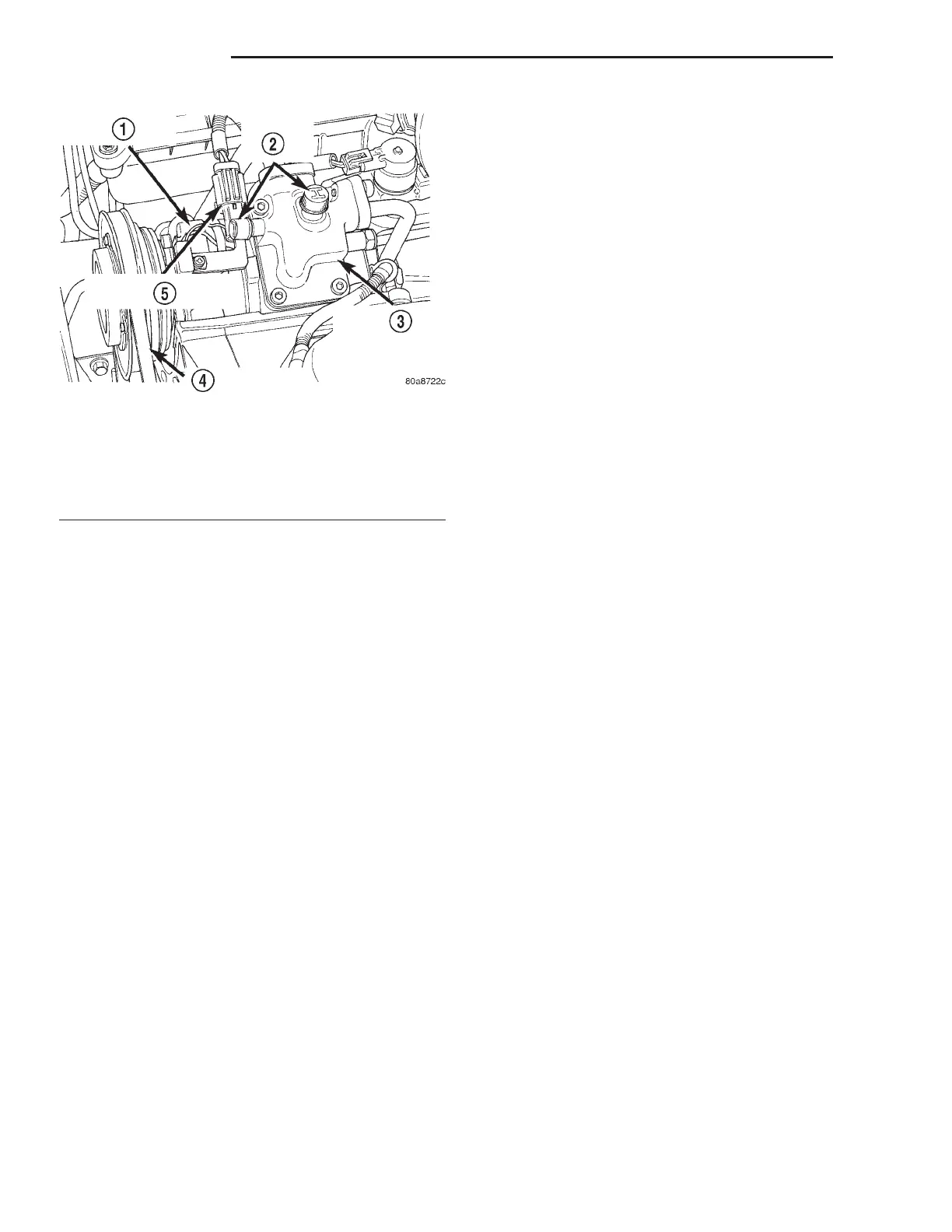

Fig. 14 A/C SYSTEM SERVICE PORTS 3.2L/3.5L
1 - A/C COMPRESSOR
2 - A/C SERVICE PORTS
3 - COMPRESSOR MANIFOLD
4 - A/C DRIVE BELT
5 - COMPRESSOR WIRE CONNECTOR
24 - 44 PLUMBING LH
SERVICE PORT VALVE CORE (Continued)
