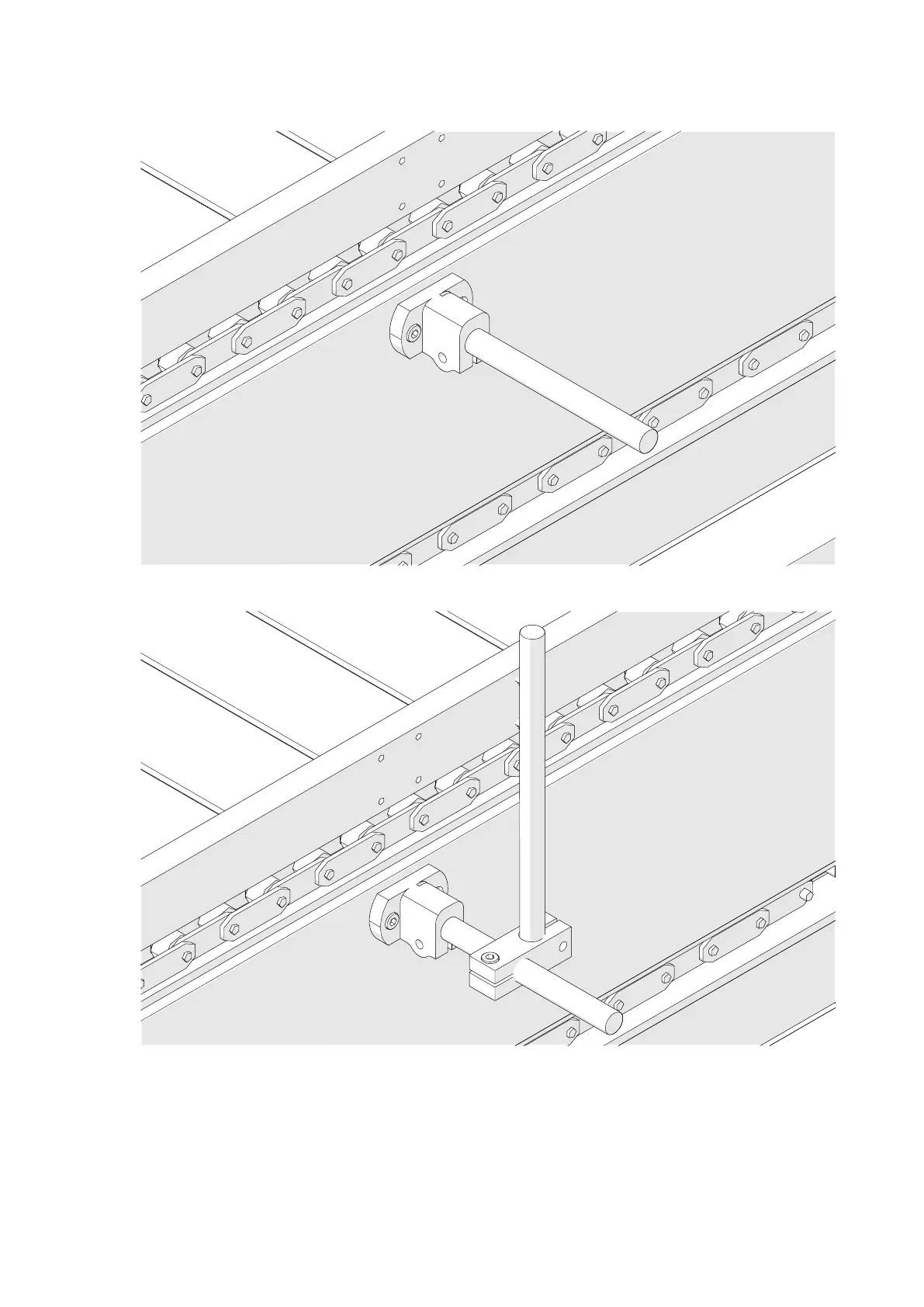

3. Fit the base clamp and 1 of the round bars onto the conveyor/production line.3.

Fit a round bar and clamp as shown below.4.

INSTALLATION

40 EPT077343 EN - Issue 1 - 11 November 2022
