PRINT HEAD ORIENTATION
Side View

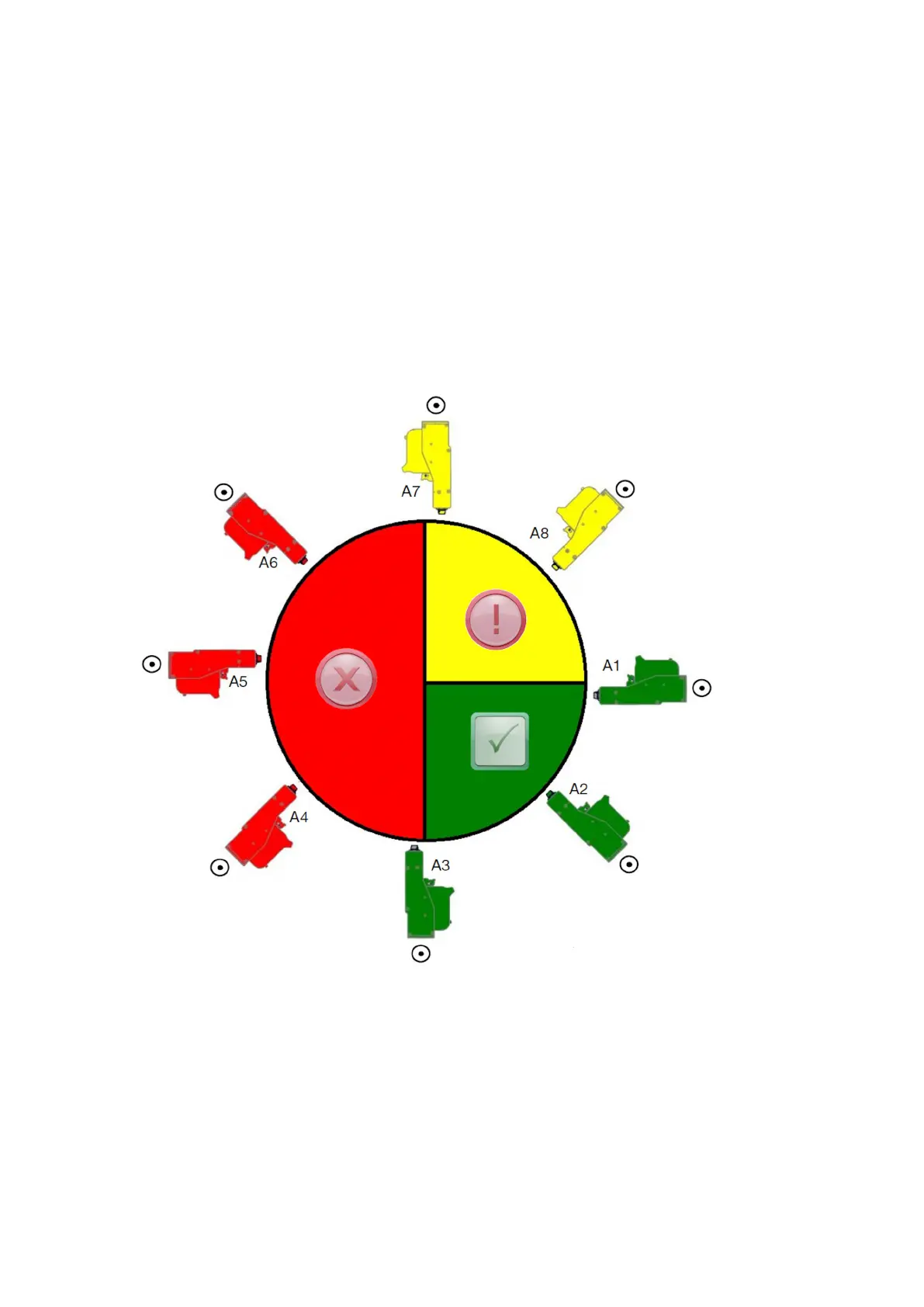

The illustration below and the illustration on the next page show the correct print head
orientations and the orientations to avoid.
•
Orientations A1, A2 and A3 are recommended.
•
• Orientations A7 and A8 are not recommended. These orientations will stop 1/3 of the ink in
•
the cartridge reaching the nozzles.
• Do not install the print head in orientations A4, A5 and A6.•
INSTALLATION
48 EPT077343 EN - Issue 1 - 11 November 2022
