IV-1-3 IPsec General Setup
IV-1-3 IPsec General Setup
In IPsec General Setup, there are two major parts of configuration.
There are two phases of IPsec.
Phase 1: negotiation of IKE parameters including encryption, hash, Diffie-Hellman
parameter values, and lifetime to protect the following IKE exchange, authentication
of both peers using either a Pre-Shared Key or Digital Signature (x.509). The peer that
starts the negotiation proposes all its policies to the remote peer and then remote
peer tries to find a highest-priority match with its policies. Eventually to set up a
secure tunnel for IKE Phase 2.
Phase 2: negotiation IPsec security methods including Authentication Header (AH) or
Encapsulating Security Payload (ESP) for the following IKE exchange and mutual
examination of the secure tunnel establishment.
There are two encapsulation methods used in IPsec, Transport and Tunnel. The Transport
mode will add the AH/ESP payload and use original IP header to encapsulate the data
payload only. It can just apply to local packet, e.g., L2TP over IPsec. The Tunnel mode will
not only add the AH/ESP payload but also use a new IP header (Tunneled IP header) to
encapsulate the whole original IP packet.
Authentication Header (AH) provides data authentication and integrity for IP packets passed
between VPN peers. This is achieved by a keyed one-way hash function to the packet to
create a message digest. This digest will be put in the AH and transmitted along with
packets. On the receiving side, the peer will perform the same one-way hash on the packet
and compare the value with the one in the AH it receives.
Encapsulating Security Payload (ESP) is a security protocol that provides data confidentiality
and protection with optional authentication and replay detection service.

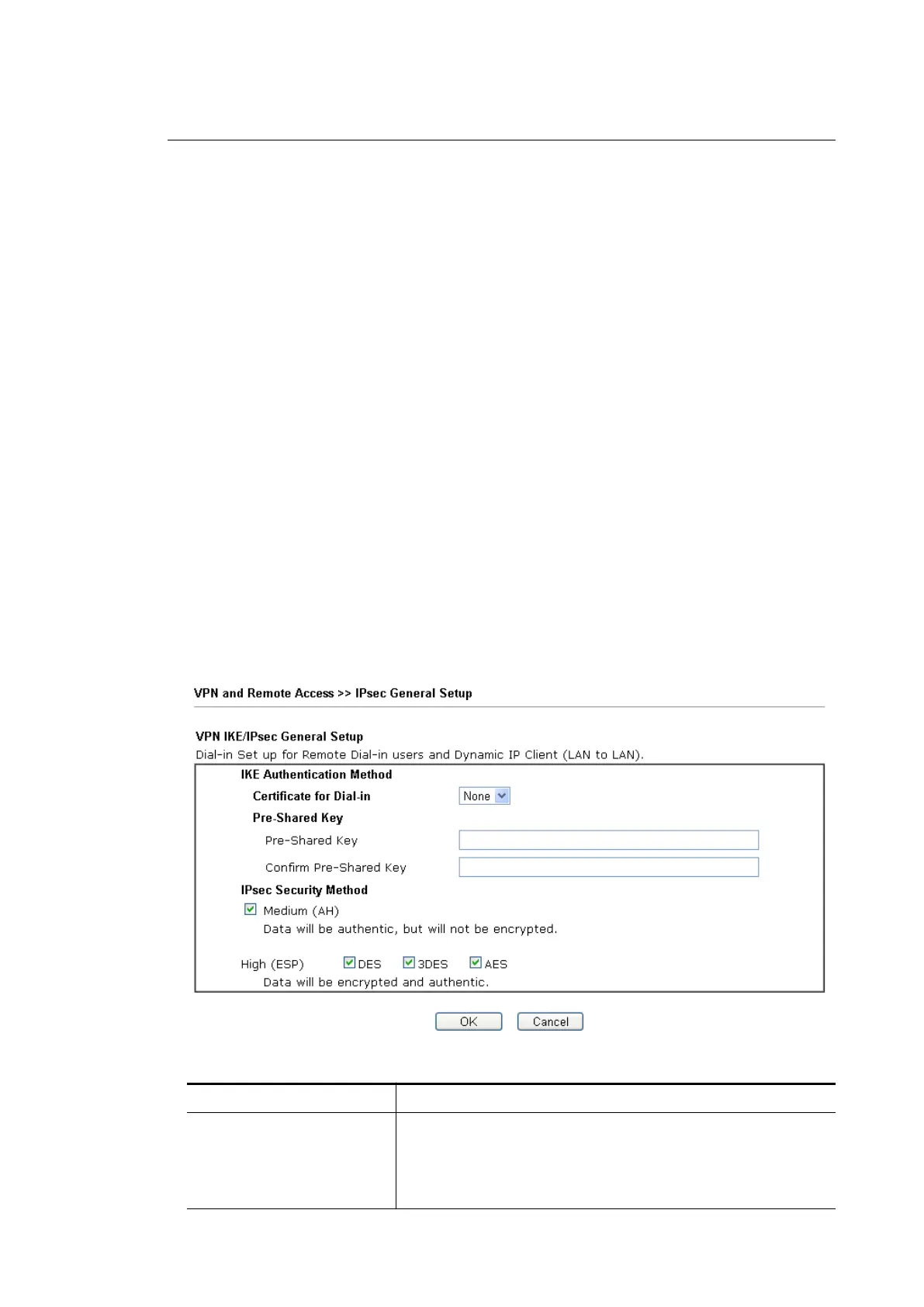

Available settings are explained as follows:
Item Description
IKE Authentication
Method
This usually applies to those are remote dial-in user or node
(LAN-to-LAN) which uses dynamic IP address and IPsec-
related VPN connections such as L2TP over IPsec and IPsec
tunnel. There are two methods offered by Vigor router for
you to authenticate the incoming data coming from remote
Vigor2762 Series User’s Guide
