I-1-1
I-1-1
Indicators
Indicators
and Connectors
and Connectors

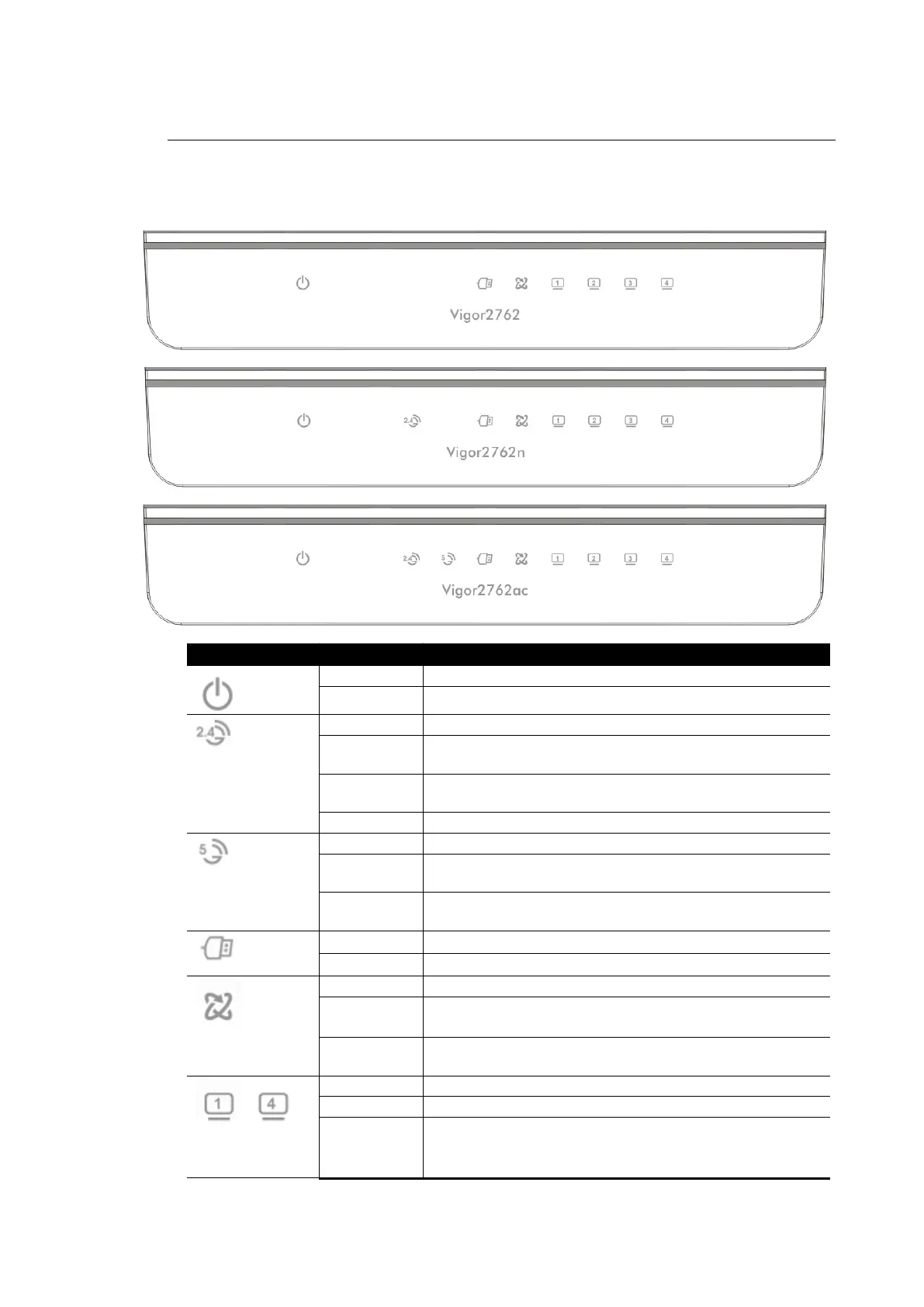

Before you use the Vigor router, please get acquainted with the LED indicators and
connectors first.
LED Status Explanation
(Activity)
Blinking The router is ready and operating normally
Off The router is powered off.
(2.4GHz
Wireless LAN
On/Off/WPS)
On (Green) 2.4GHz Access Point is active
Blinking
(Green)
Data is being transmitted on the router’s 2.4 GHz
wireless interface
Blinking
(Orange)
WPS pairing mode is active for two minutes
Off The wireless access point is turned off.
(5GHz
Wireless LAN
On/Off/WPS)
On (Green) 5GHz Access Point is turned off
Blinking
(Green)
Data is being transmitted on the router’s 5GHz wireless
interface
Blinking
(Orange)
WPS pairing mode is active for two minutes
(USB)
On USB device is connected and ready for use
Blinking Data is being transmitted over USB
(DSL)
On DSL connection synchronised
Blinking
(Slowly)
DSL connection not currently synchronising or
not detected
Blinking
(Quickly)
DSL connection is synchronising
~
(LAN1/2/3/4)
On Ethernet LAN (RJ45) is connected
Blinking Data is transmitting (sending/receiving)
Off Ethernet LAN is disconnected
Vigor2762 Series User’s Guide
